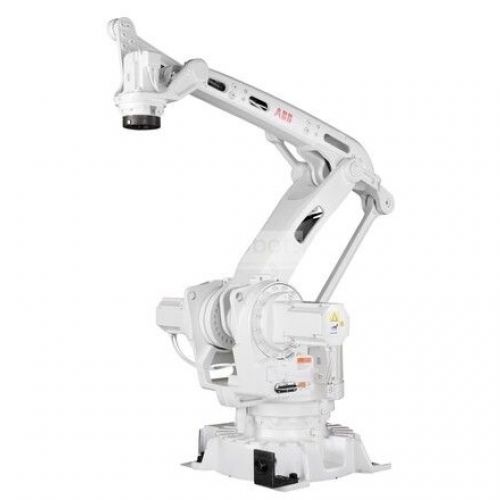

ABB IRB 460-110/2.4 high-speed 4-axis palletizing robot with OmniCore controller

ABB IRB 460-110/2.4 with OmniCore controller is a high-speed 4-axis palletizing robot from the IRB 460 family. This variant is configured for a rated payload of 110 kg, a maximum reach of 2400 mm and 4 controlled axes.

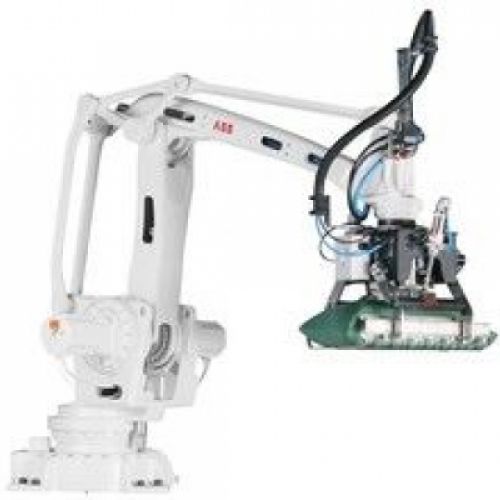

The IRB 460 is a dedicated compact palletizing robot for high-speed layer handling, end-of-line packing and bag or box palletizing.

The Palletizing configuration should be selected against the exact payload, tool center of gravity, inertia, mounting position and process environment. The stated wrist payload is a nominal value and the final usable load must always be validated with ABB load data and the complete end-effector design.

Controller compatibility: this record is grouped in the CMS under OmniCore. The compatible controller variants for this model are listed as OmniCore V250XT / V400XT. The final controller cabinet, RobotWare version, safety package, fieldbus options, additional axes and process software should be checked for the exact ABB order code.

Typical applications

• palletising
• handling of parts
• loading and unloading of parts
• advanced manufacturing

For a Eurobots project, ABB IRB 460-110/2.4 can be evaluated for new automation cells, refurbished robot projects, replacement studies, feasibility tests and controller-standardization work. Final engineering approval should be based on the exact ABB mechanical unit, environmental option, load diagram and OmniCore controller configuration.
