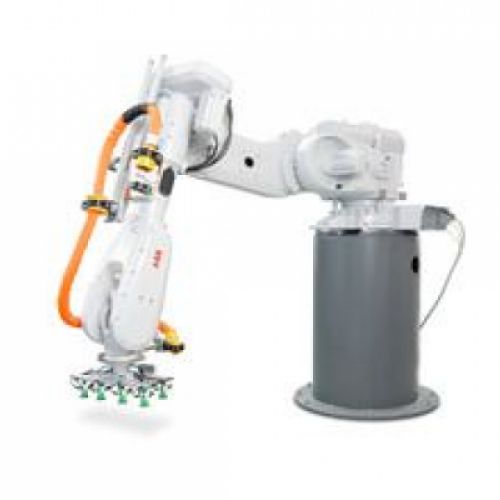

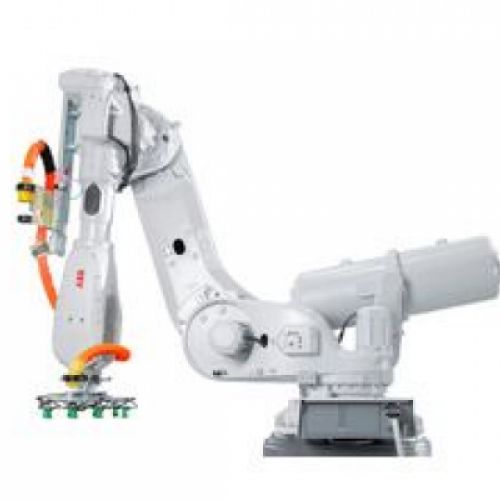

ABB IRB 6750S-220/3.6 LID shelf-mounted heavy-payload 6-axis robot with OmniCore controller

ABB IRB 6750S-220/3.6 LID with OmniCore controller is a shelf-mounted heavy-payload 6-axis robot from the IRB 6750S family. This variant is configured for a rated payload of 220 kg, a maximum reach of 3600 mm and 6 controlled axes.

The IRB 6750S is a shelf-mounted heavy-payload robot with payloads up to 350 kg for high-density lines, die casting, welding and large material handling.

The Shelf LeanID long reach configuration should be selected against the exact payload, tool center of gravity, inertia, mounting position and process environment. The stated wrist payload is a nominal value and the final usable load must always be validated with ABB load data and the complete end-effector design.

Controller compatibility: this record is grouped in the CMS under OmniCore. The compatible controller variants for this model are listed as OmniCore V250XT / V400XT. The final controller cabinet, RobotWare version, safety package, fieldbus options, additional axes and process software should be checked for the exact ABB order code.

Typical applications

• advanced manufacturing
• handling of parts
• spotwelding
• press tending
• assembly of parts

For a Eurobots project, ABB IRB 6750S-220/3.6 LID can be evaluated for new automation cells, refurbished robot projects, replacement studies, feasibility tests and controller-standardization work. Final engineering approval should be based on the exact ABB mechanical unit, environmental option, load diagram and OmniCore controller configuration.
