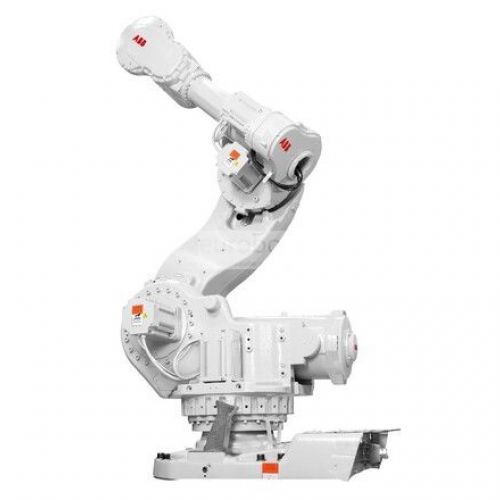

ABB IRB 7600-340/2.8 heavy-duty 6-axis articulated robot with OmniCore controller

ABB IRB 7600-340/2.8 with OmniCore controller is a heavy-duty 6-axis articulated robot from the IRB 7600 family. This variant is configured for a rated payload of 340 kg, a maximum reach of 2800 mm and 6 controlled axes.

The IRB 7600 is a heavy-duty ABB robot family with OmniCore V-line compatibility. ABB Robotics One identifies it as phased out and replaced by IRB 7710 and IRB 7720, but OmniCore product specifications exist for modernization and compatibility reference.

The Legacy OmniCore-supported configuration should be selected against the exact payload, tool center of gravity, inertia, mounting position and process environment. The stated wrist payload is a nominal value and the final usable load must always be validated with ABB load data and the complete end-effector design.

Controller compatibility: this record is grouped in the CMS under OmniCore. The compatible controller variants for this model are listed as OmniCore V250XT / V400XT. The final controller cabinet, RobotWare version, safety package, fieldbus options, additional axes and process software should be checked for the exact ABB order code.

Typical applications

• advanced manufacturing
• handling of parts
• loading and unloading of parts
• press tending
• machining
• spotwelding

For a Eurobots project, ABB IRB 7600-340/2.8 can be evaluated for new automation cells, refurbished robot projects, replacement studies, feasibility tests and controller-standardization work. Final engineering approval should be based on the exact ABB mechanical unit, environmental option, load diagram and OmniCore controller configuration.
