Other Robots Comau NM 45

Awaiting more stock

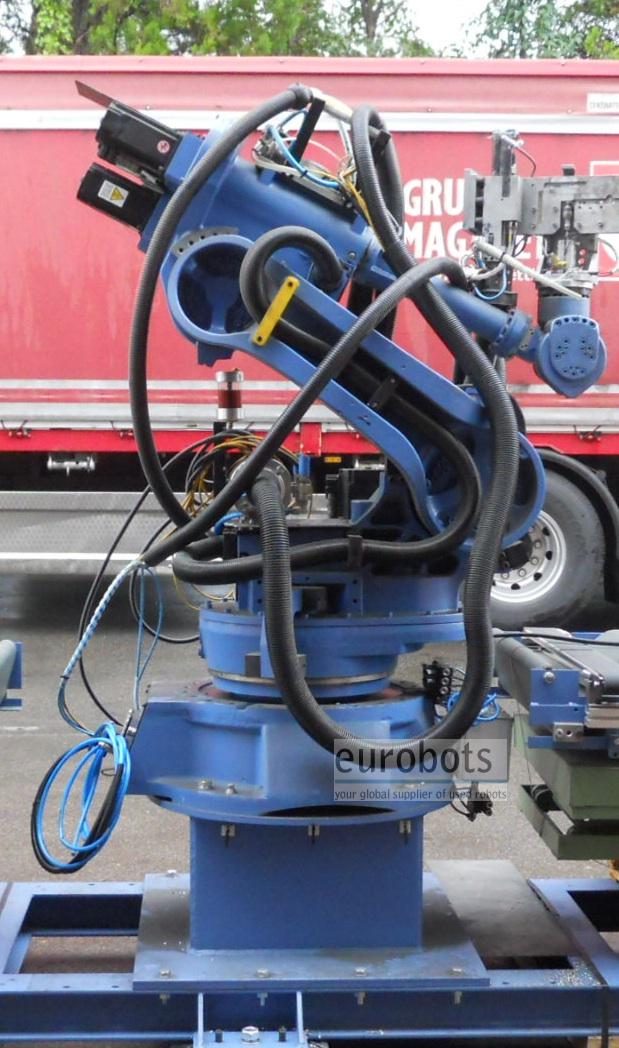

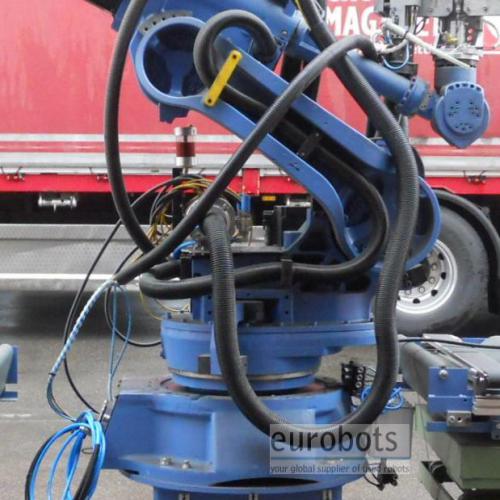

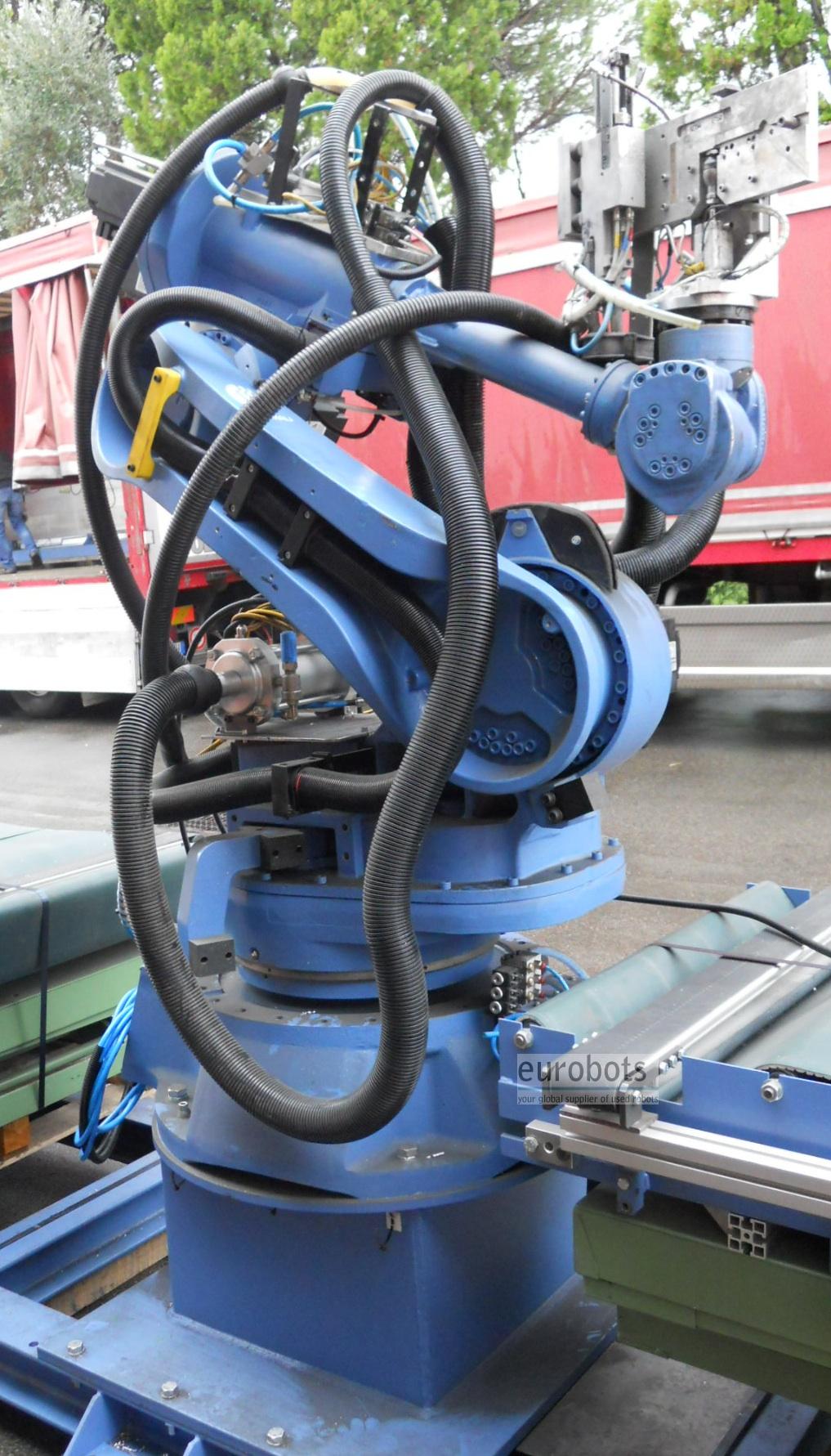

The Smart NM 45 is a medium payload robot equipped with the powerful controller C4G. These robots are suitable for a wide range of applications such as handling, machine tending, die-casting, cleaning and polishing.

Technical Features
• Up to 45 kg payload
• High repeatability: 0.06 mm
• Wide working volume
• "In-line" or "off-set" wrist versions
• Floor, ceiling or tilted installation
• UL version available

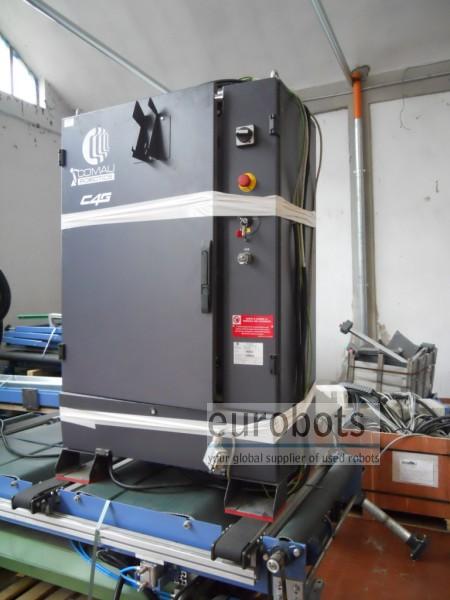

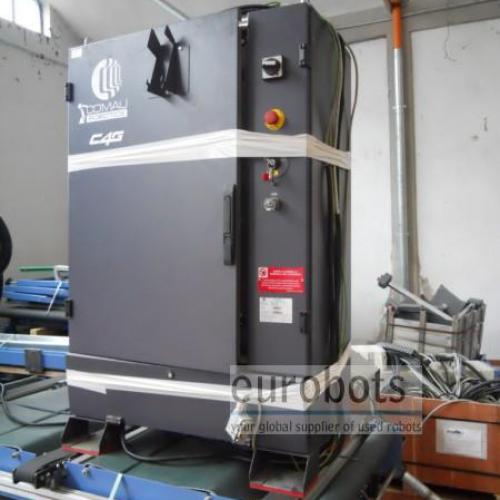

C4G Control Unit features
C4G is Comau Robotics forth generation Control Unit, 50 times faster than its previous version.
With its high calculating power, C4G represents a major breakthrough on the market standards.
Its electronics is based on two processors of the latest generation, the first of which optimize the path-following, while the second one controls peripherals, application software and user interface, in order to insure highest performance levels to both areas.
The software architecture has been designed to allow the integration of C4G in the corporate communication network: remote access and remote technical assistance are possible through internet, e-mail or SMS messages.
Technical Features:
- High calculating power
- High reliability and low maintenance cost
- Hardware architecture designed to manage up to 40 axis in multi-arm configuration
- Available interfaces: Devicenet, Profibus-DP, Interbus-s wire, Interbus-s fibre optics opc , Ethernet, USB, RS422
- New motion algorithms (Payload Identification, Collision Detection, SMART Move, Path Governor, etc.)
- USA and UL version available

Robot Info:

      Maximum Load of Robot:45 kg
      Maximum Rech:2000

Robot Motion Speed :

        Axis 1 160 °/s (2.79 rad/s)
        Axis 2 150 °/s (2.62 rad/s)
        Axis 3 160 °/s (2.79 rad/s)
        Axis 4 250 °/s (4.36 rad/s)
        Axis 5 250 °/s (4.36 rad/s)
        Axis 6 340 °/s (5.93 rad/s)


       Arc welding
       Handing of prts


Lem - Ikatan perekat , Poles , Penanganan suku cadang , Mesin , Memuat dan membongkar suku cadang , Pembuatan palet , Pengelasan busur
