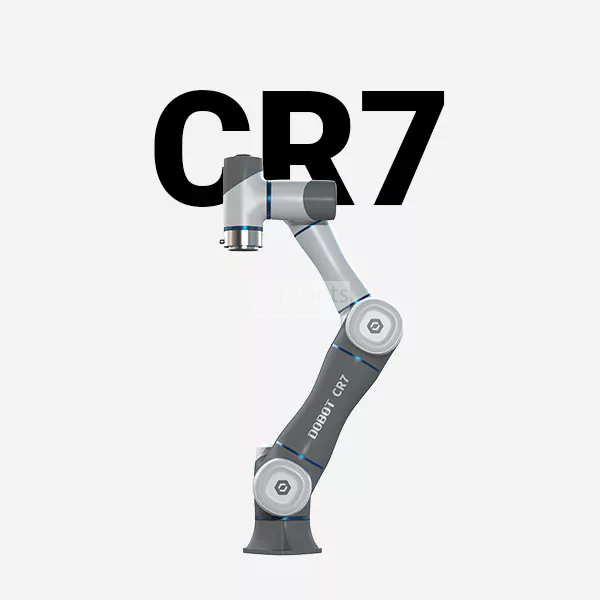

The Dobot CR7A is a versatile collaborative robot (cobot) designed to enhance automation in various industrial applications. With a payload capacity of 7 kg and a working radius of 800 mm, it is well-suited for tasks such as assembly, gluing, loading and unloading, quality inspection, and more.

The CR7A features a plug-and-play design, facilitating swift deployment using various accessories available in our ecosystem. It is equipped with a user-friendly graphical interface, supporting block programming (similar to Scratch) and scripting with LUA, while also offering compatibility with other programming languages through its API (C, C#, Python, Kotlin, etc.). Additionally, it can be controlled via smartphones, tablets, and computers.

The entire installation process takes approximately 20 minutes, and the Dobot CR7A can be fully operational within an hour.

Weight		24.5 kg
Maximum Payload		5 kg
Working Radius		800 mm
Maximum Linear Speed		2 m/s
Range of Motion	J1	±360°
	J2	±360°
	J3	±160°
	J4	±360°
	J5	±360°
	J6	±360°
Maximum Joint Speed	J1/J2/J3	150° /s
Maximum Joint Speed	J4/J5/J6	223° /s
End-Effector I/O Interface	DI/DO	2+2
End-Effector I/O Interface	AI/AO	0
Communication Interface	Communication	RS485
Controller I/O	DI	24
	DO/DI	24
	AI/AO	2/2
	ABZ Incremental Encoder	1
Repeatability		±0.02 mm
Communication		TCP/IP, Modbus, Profinet, ethernetIP, Wi-Fi
IP Rating		IP54
Noise		70 dB(A)
Temperature Range		0°C ～ 50°C
Power Consumption		150W
Installation Orientation		Any angle
Cable Length to Control Box		5m
Materials		Aluminum alloy, ABS plastic

उपयोग

Memuat dan membongkar suku cadang , Penanganan suku cadang , Poles , Pengukuran , Perakitan bagian , Lem - Ikatan perekat , 3C Electronics , Advanced Manufacturing , Education
