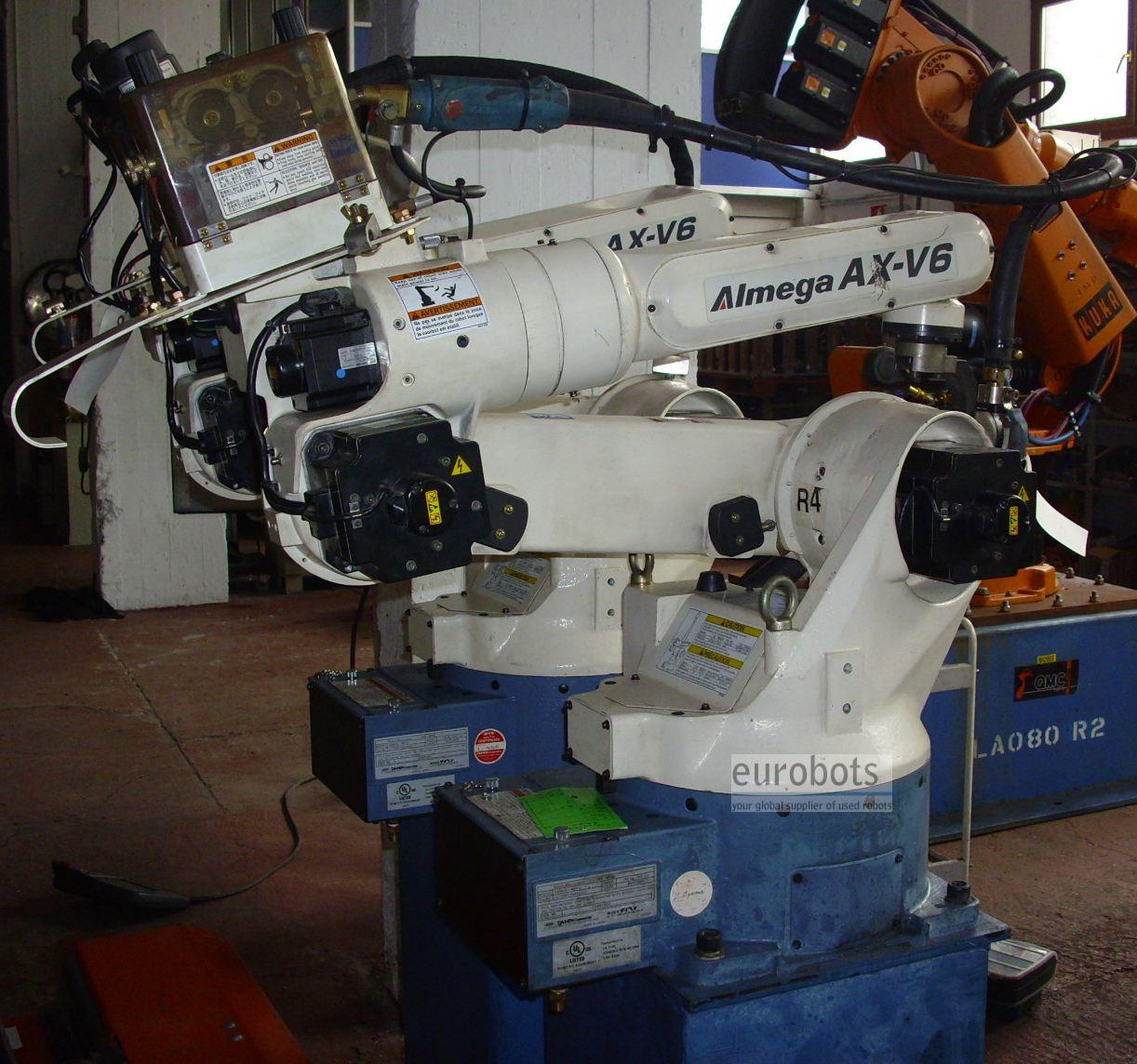

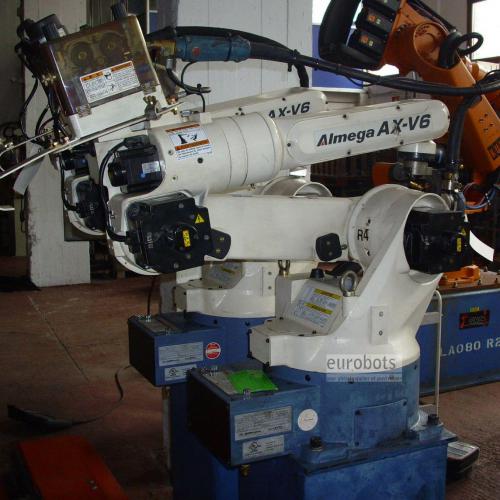

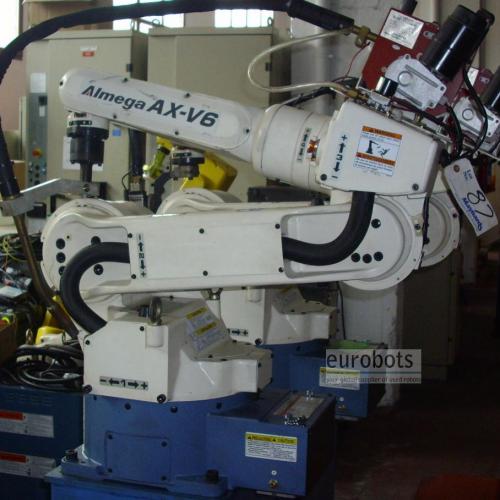

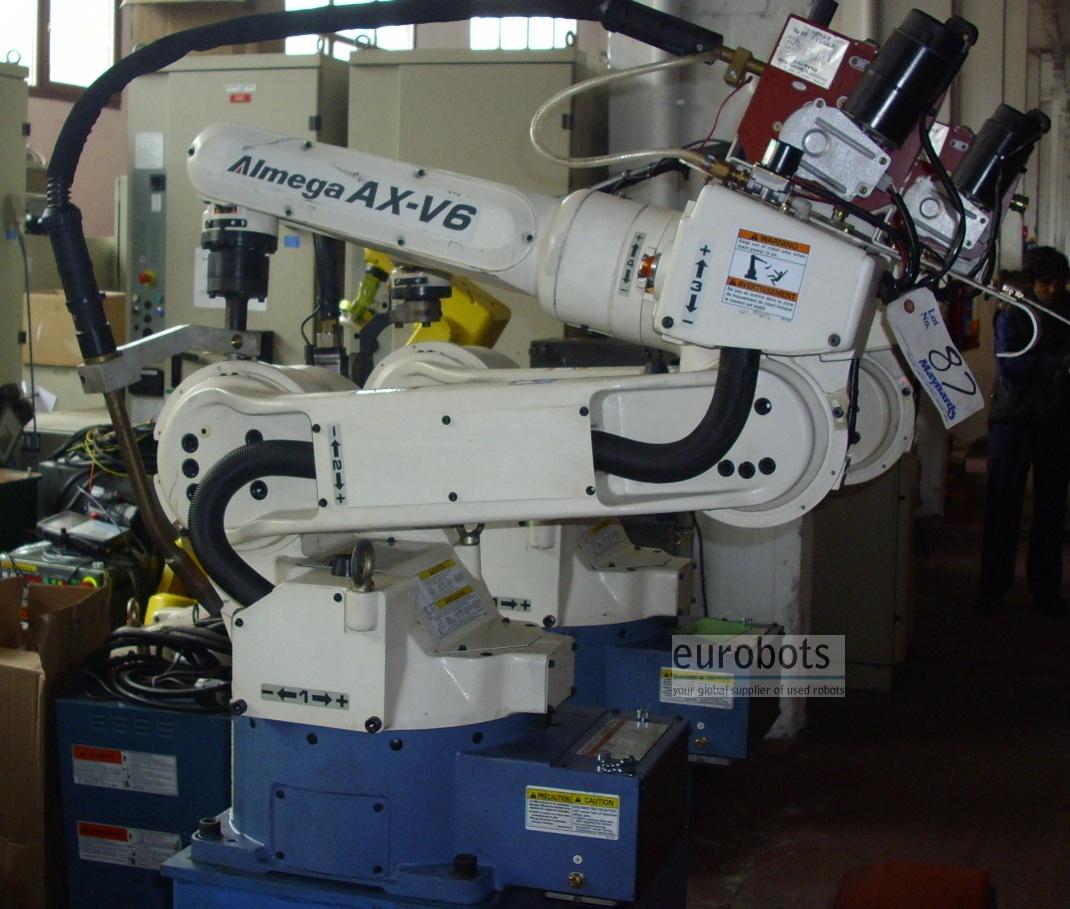

Other Robots OTC-Daihen ALMEGA AX-V6 arc welding robots

Awaiting more stock

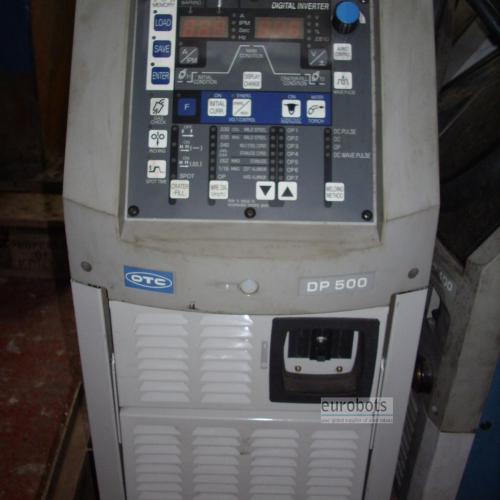

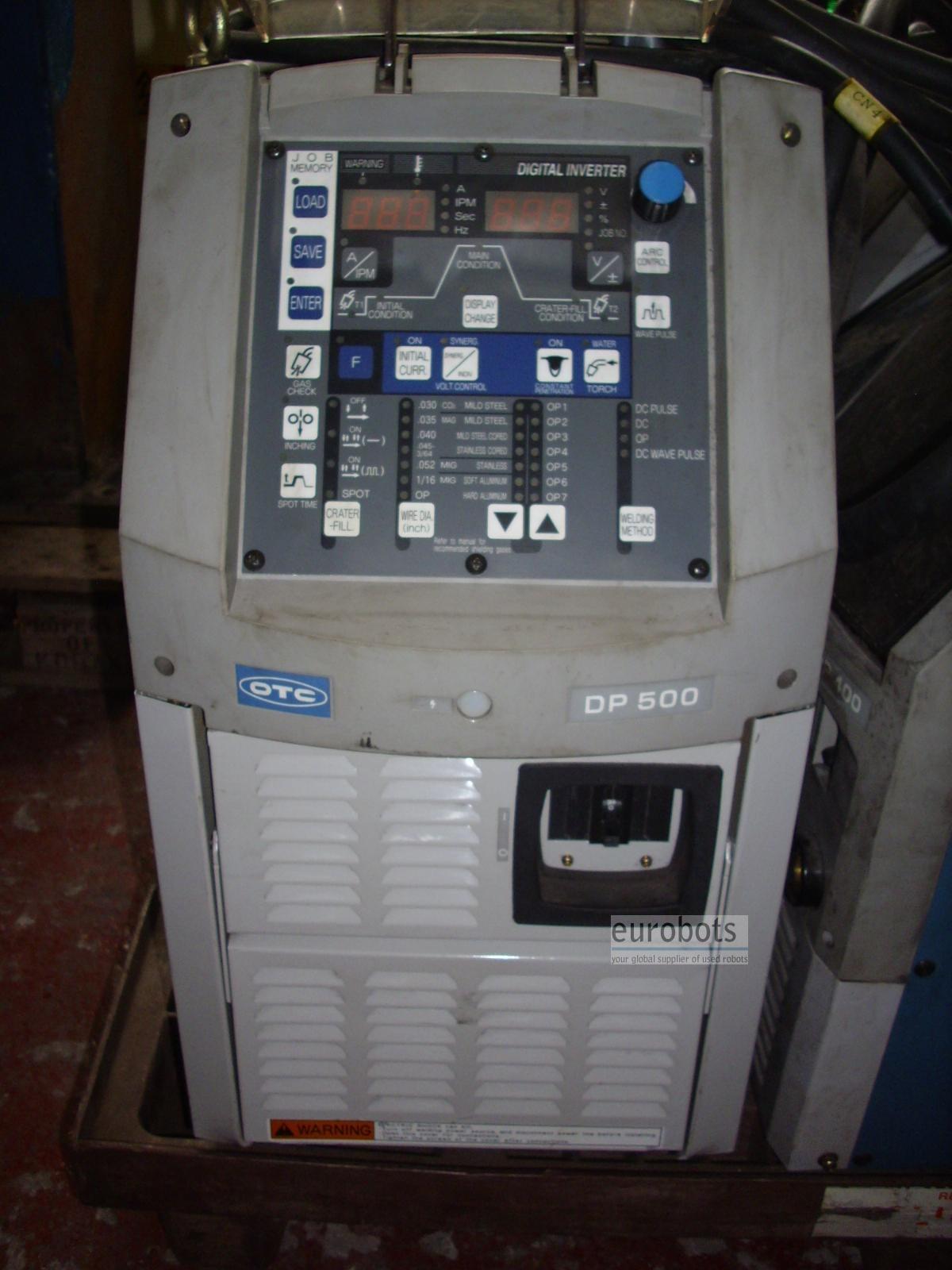

Year 2005. A 7th axis Servocontrolled turn table also available for this model. Equipped with the synergic MIG/MAG power welding source DP-500, 500 Amperes capacity.

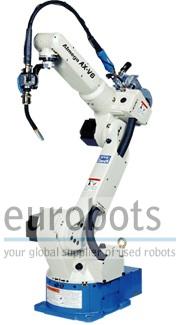

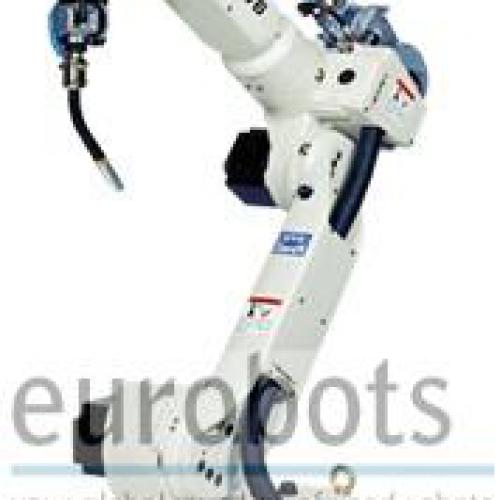

The AX-V6 is a hi speed, smooth movement manipulator that shortens production time. It is designed for MIG/MAG Welding, TIG Welding, Tandem MAG Welding, Alumium MIG Welding, and Plasma Arc Cutting. With such features as a built-in shock sensor in the welding torch and enhanced system configuration ability, the AX-V6 is ideal for high speed arc welding applications.

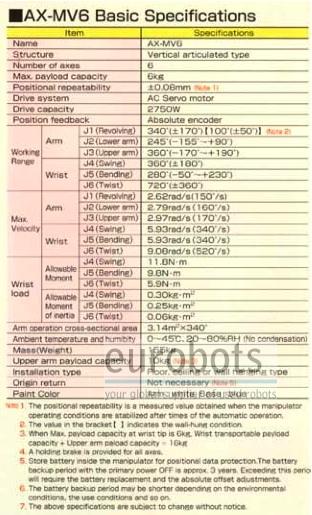

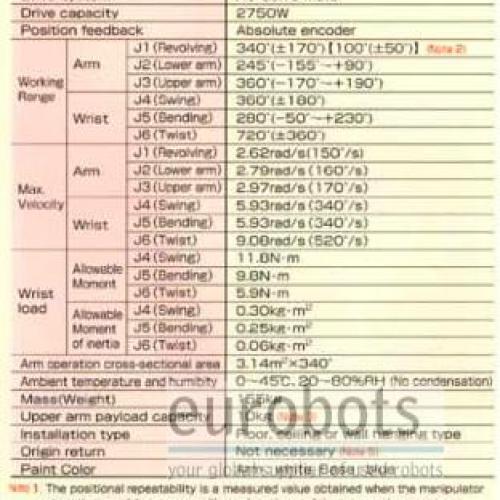

General specifications:

Number of axis: : 6
Payload: 6 kg

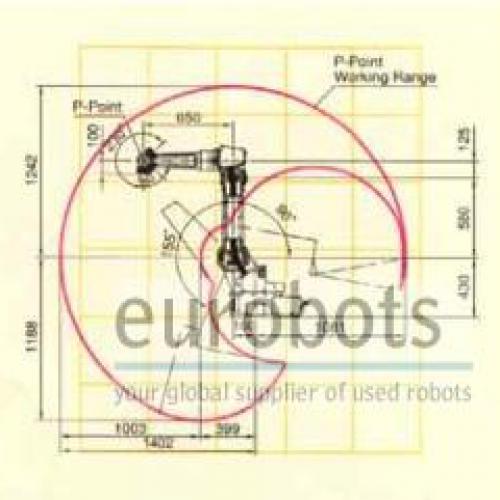

Horizontal arm reach: 1402 mm
Accuracy / repeatability: ±0.08 mm

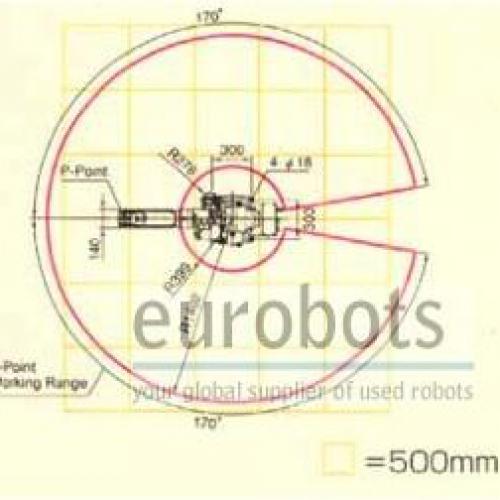

Axis data - motion range

Axis 1 ±170°
Axis 2 +155°, -90°
Axis 3 +190°, -170°
Axis 4 ±180°
Axis 5 +230°, -50°
Axis 6 ±360°

Robot axis Speed

Axis 1: 150 °/s
Axis 2 :150 °/s
Axis 3: 150 °/s
Axis 4: 340 °/s
Axis 5: 340 °/s
Axis 6: 520 °/s

Main features

* Faster, yet smoother motion - reduced reduced cycle time by new servo control system with advanced acceleration method.
* Independently articulated arm - no link arm to impede articulation for a full range of motion.
* Vibration restraining control - virtually eliminates vibration even when stopping at maximum speed.
