Other Robots Reis RV6 L RobotstarV

Awaiting more stock

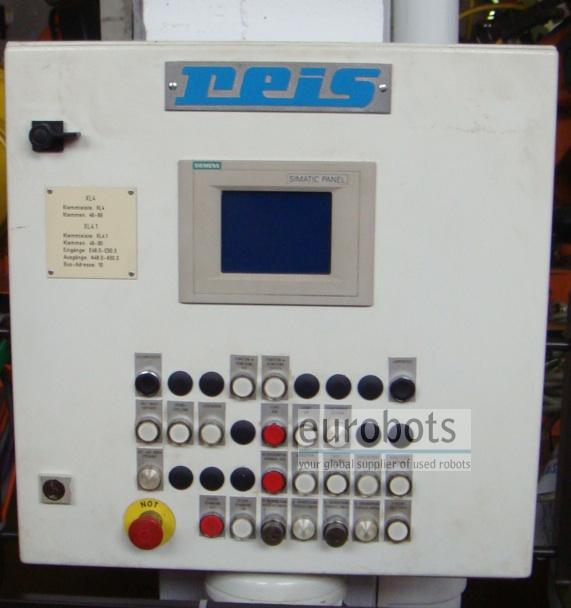

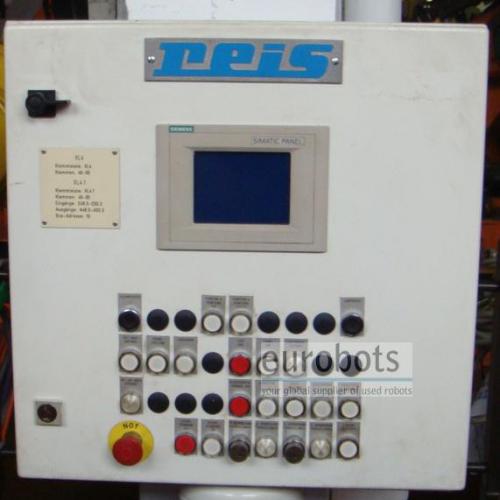

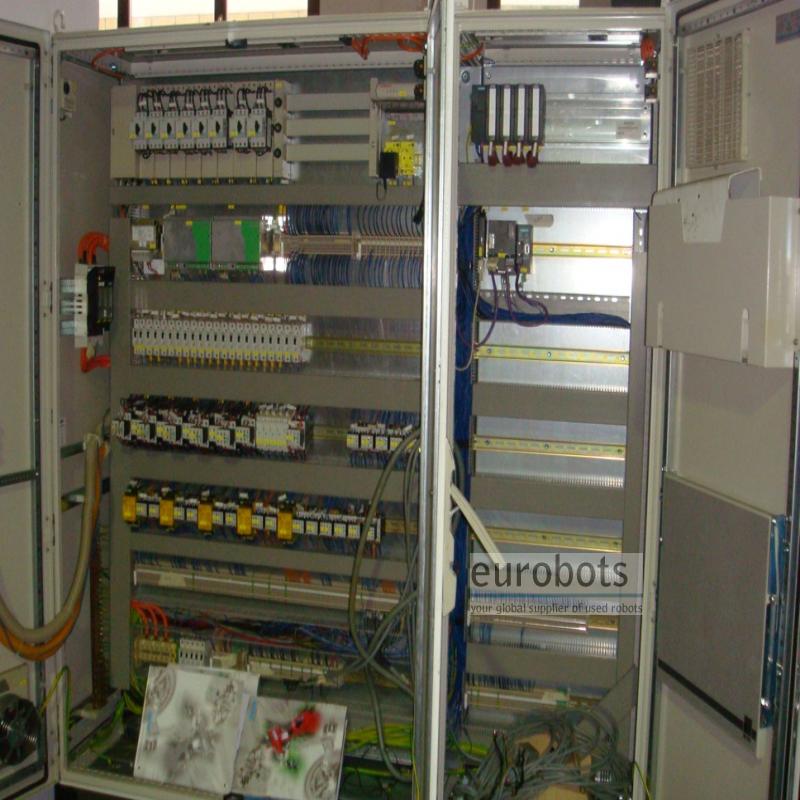

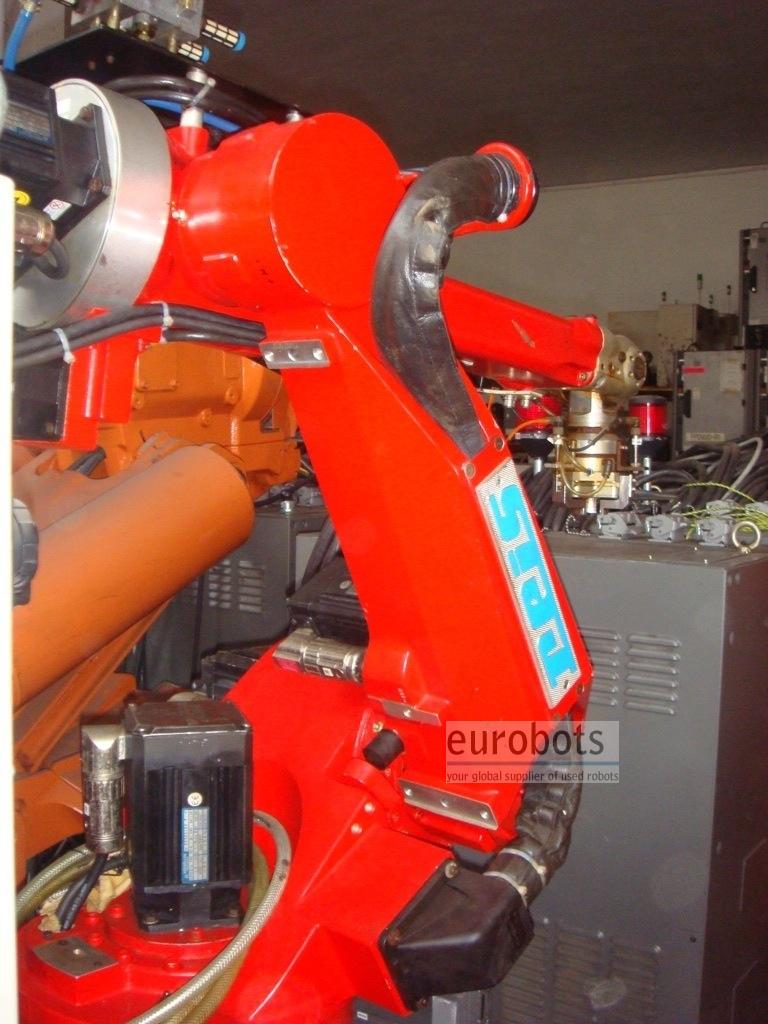

Year 2004. 6 axis industrial robot, 1635 mm arm reach and 6 kg payload. Equipped with the modern ROBOTstarV and Siemens S7 PLC with control panel to control the whole cell

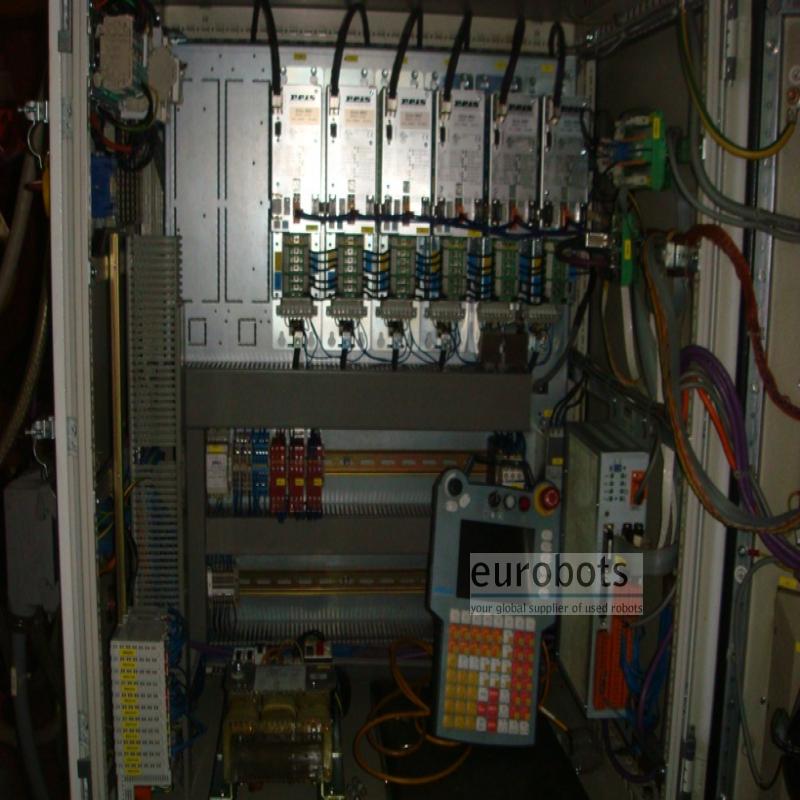

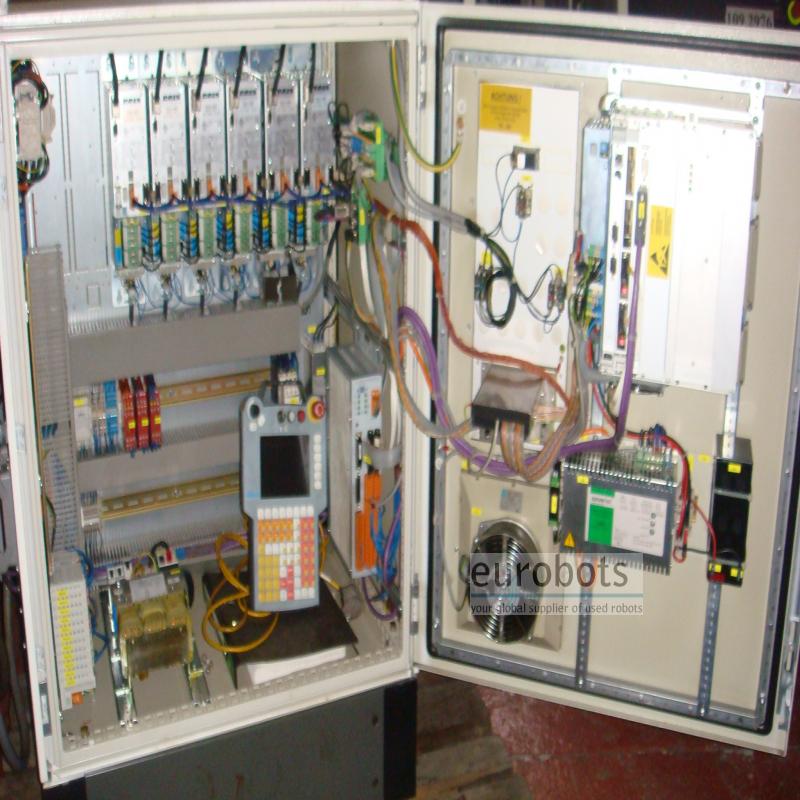

The robot control ROBOTstarV is an application oriented development from practical use for practical use. The robot controller ensures a future-oriented concept for execution of all application tasks. Software modules support all control functions such as program input, program sequence and movement control offline at the PC.

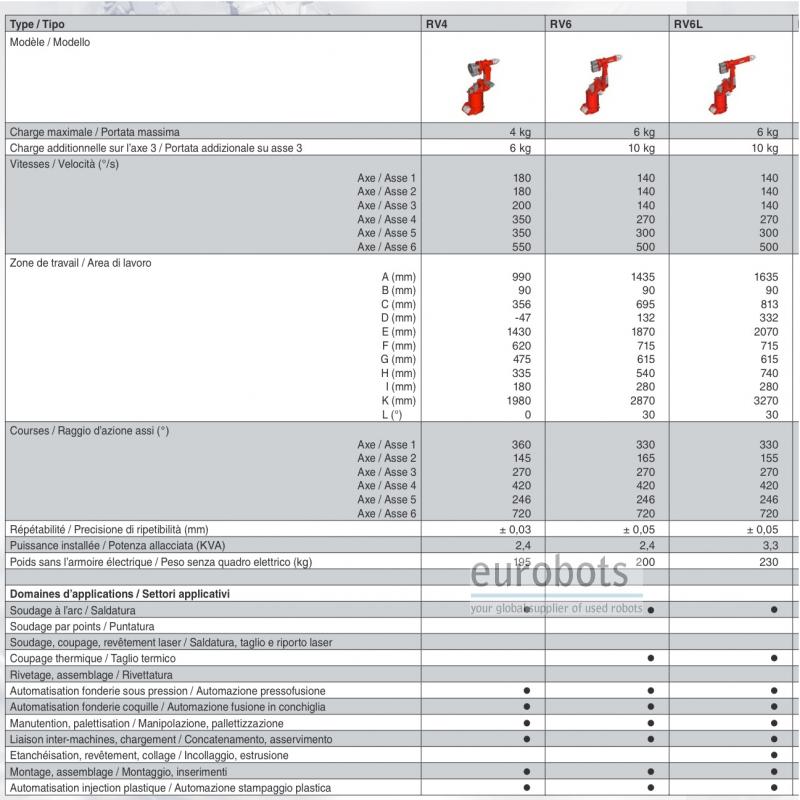

Robot Info:

    * Maximum Load of Robot: 6 Kg.

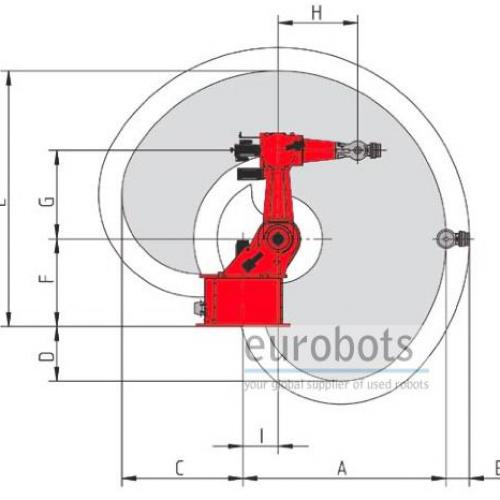

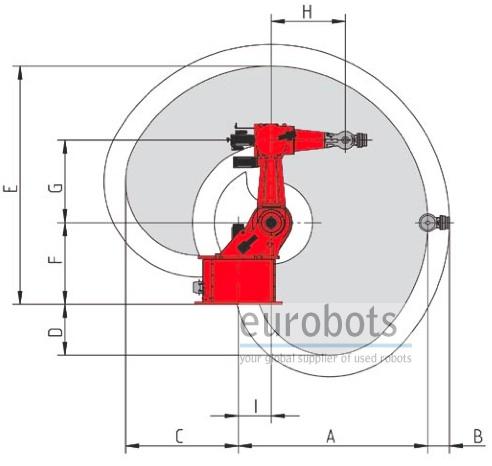

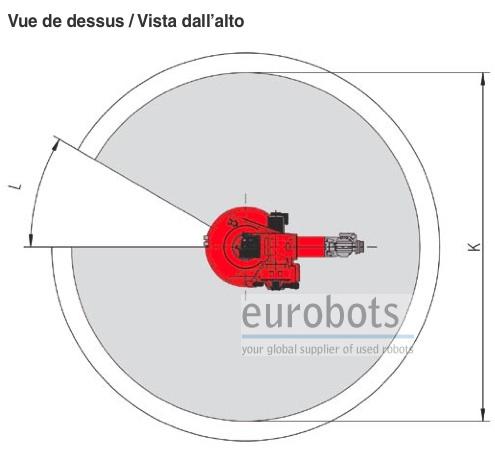

    * Maximum Reach: 1635 mm.
    * Repeatability: 0,05 mm.
    * Controller: ROBOTstarV

Robot Motion Speed:

    * Axe 1: 140º/seg
    * Axe 2: 140º/seg
    * Axe 3: 140º/seg
    * Axe 4: 270º/seg
    * Axe 5: 300º/seg
    * Axe 6: 500º/seg


उपयोग

Handling of parts , Machining , Loading and unloading of parts , Painting , Arc welding
