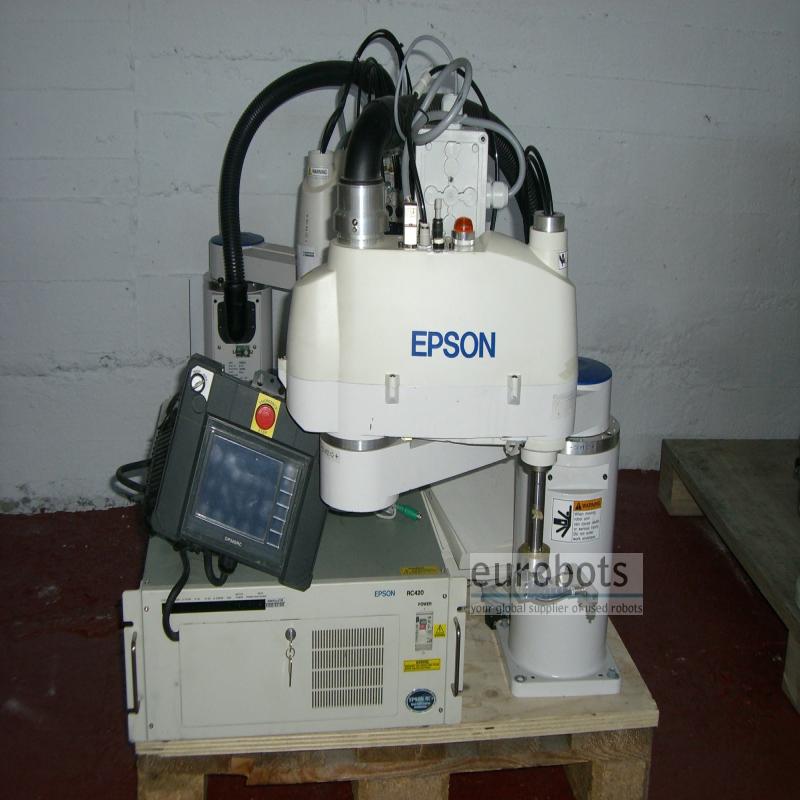

Scara Robots Epson Scara E2S65
Year 2005, barely used high accuracy robots suitable for handling and assembly applications.
With fast cycle times and impressive 15 micron repeatability the E2S models can handle a very wide variety of demanding applications. It's easy to see why the E2S Robots are some of our best selling robots due to their all around performance and value. The E2S Robots are ideal for a wide variety of applications where medium reach and high performance is required.
Equipped with the RC420 compact PC based controller.
Cycle time is the name of the game and just moving quickly in the XY plane isn't enough to meet the tough cycle time requirements of today's applications. This is why U Axis (or the tool rotational axis) speed is so important for most applications. The E2S Robots U Axis travels a full + 360 degrees and with a top speed of 1870 deg/second is over 1.5 times faster than most competitive models which translates to more parts processed per hour.
Robot Info:
- Maximum Load of Robot: 5Kg.
- Maximum Reach: 650 mm.
- Repeatability: 0,015 mm.
- Controller: RC420
Robot Motion Speed:
- Axe 1: 125º/seg
- Axe 2: 140º/seg
- Axe 3: 0º/seg
- Axe 4: 360º/seg
Robot Applications:
-
These robots are the perfect choice for applications such as:
- hard disk assembly
- electronics assembly
- fiber optics assembly
- machine loading
- material handling
