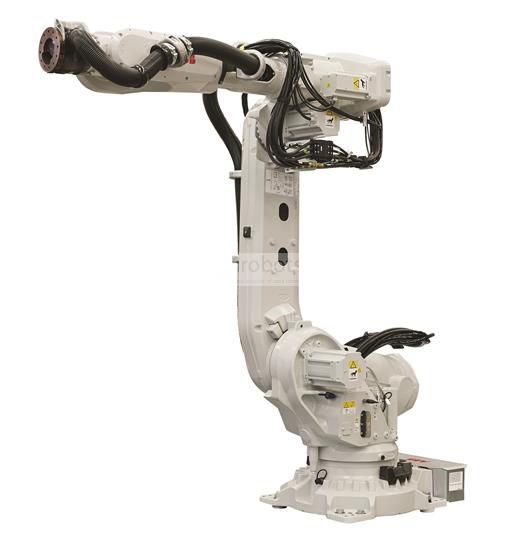

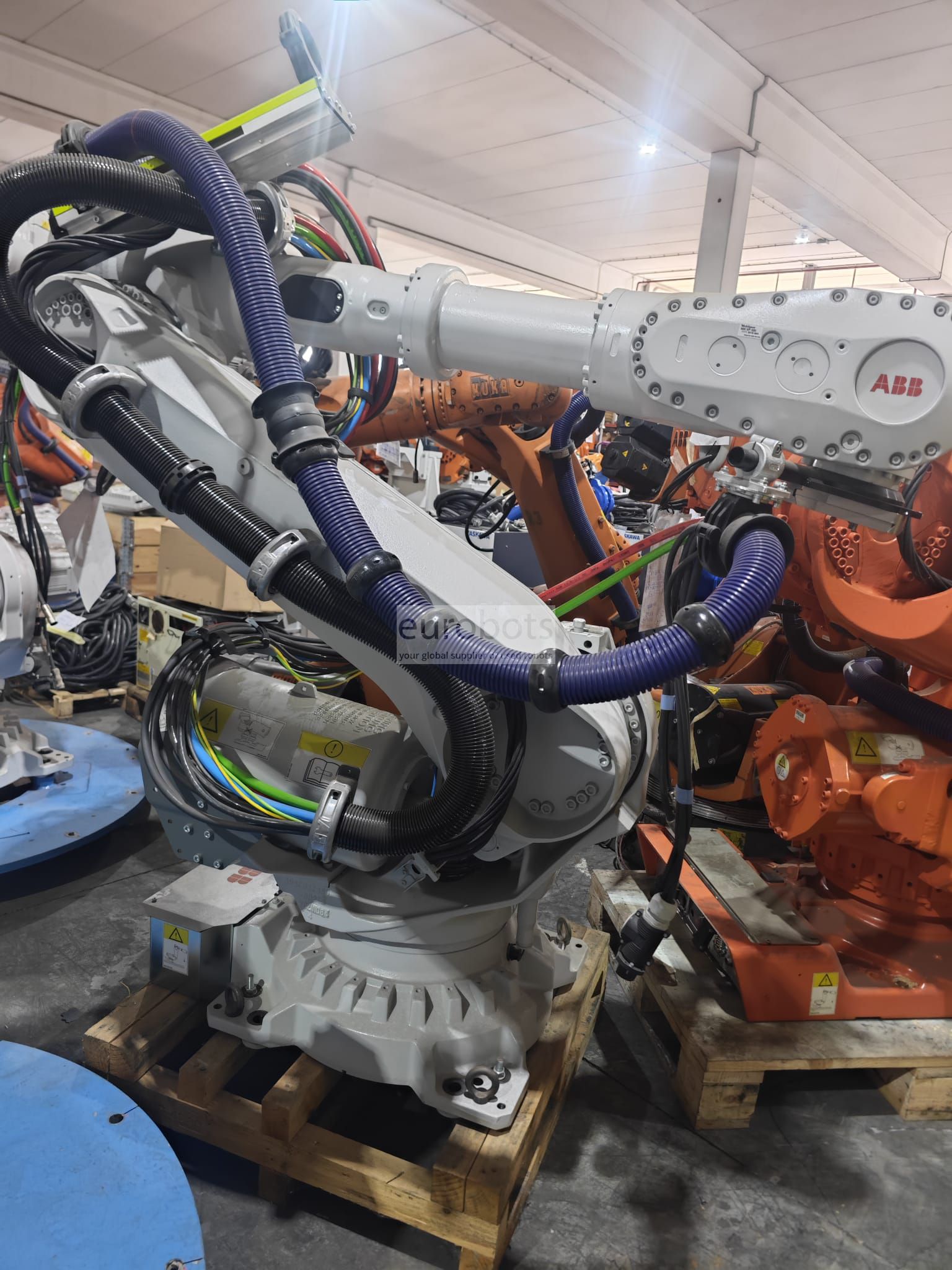

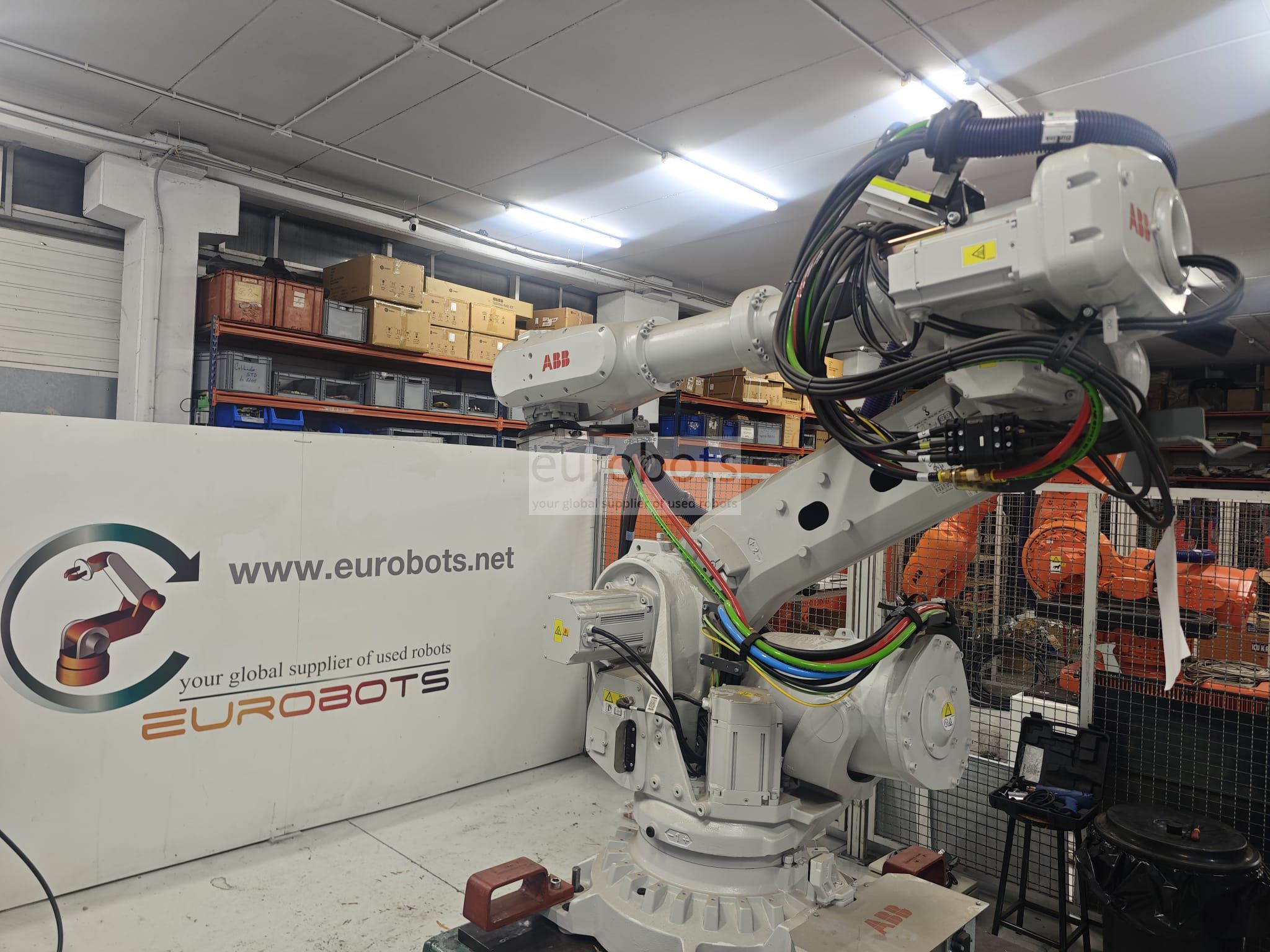

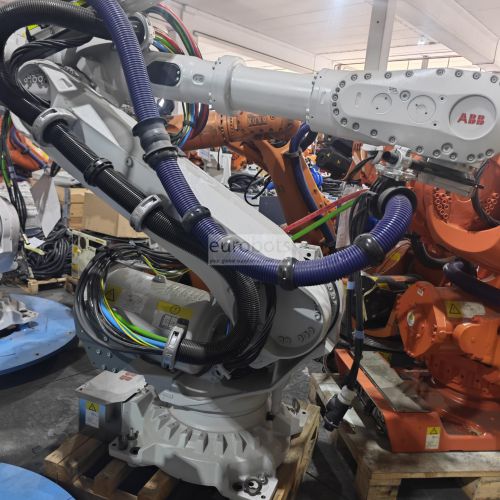

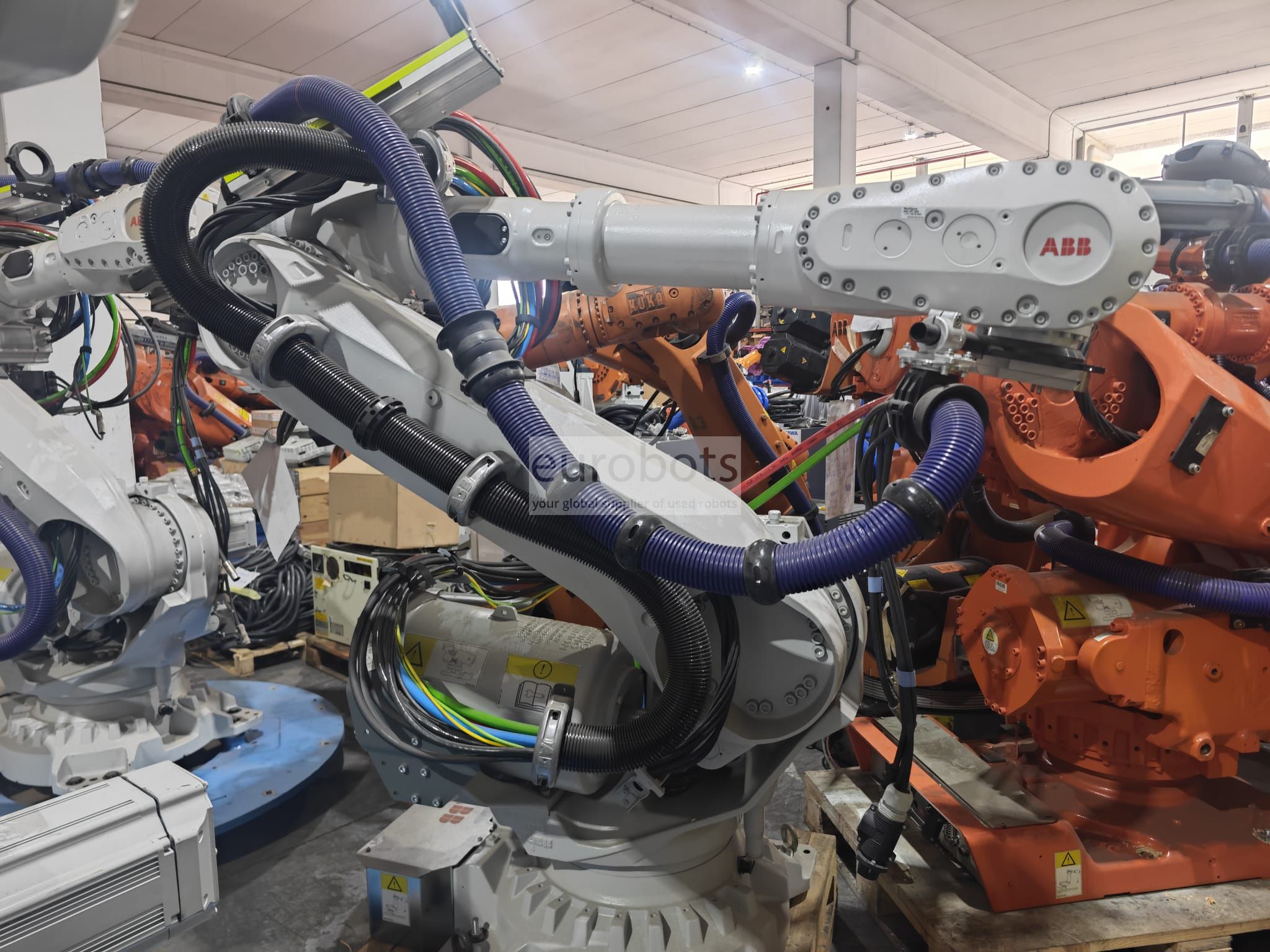

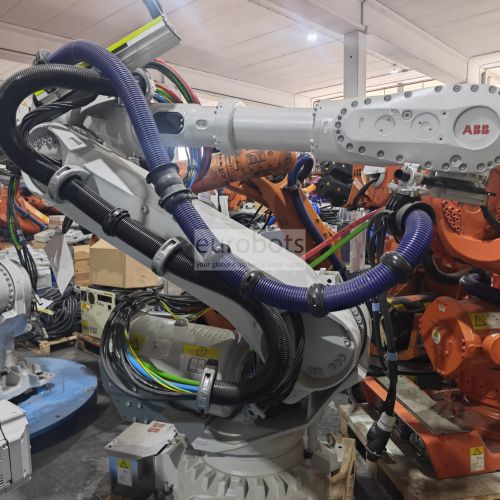

ABB IRB 6700

The robot IRB 6700 is part of the seventh generation of ABB robots featuring several improvements with a more rigid design that achieves a 20% reduction in total cost of ownership, greater accuracy, time short cycle, minimum maintenance, optimal protection to operate in hostile environments available in Foundry Plus 2 and a load capacity of 150 to 300 kilograms providing high performance and greater efficiency. This generation brings 10 versatile models. Equipped with the IRC5 controller.

 Main specifications

Robot version IRB 6700- 200/2.60 IRB 6700- 155/2.85 IRB 6700- 235/2.65 IRB 6700- 205/2.80 IRB 6700- 175/3.05 IRB 6700- 150/3.20 IRB 6700- 300/2.70 IRB 6700- 245/3.00 IRB 6700 Inv-300/2.60 IRB 6700 Inv-245/2.90
Maximum Load of Robot 200  kg 155 kg 235 kg 205 kg 175 kg 150 kg 300 kg 245 kg 300 kg 245 kg
Maximum reach 2600 mm 2850 mm 2650 mm 2800 mm 3050 mm 3200 mm 2700 mm 3000 mm 2600 mm 2900 mm
Number of axis 6 6 6 6 6 6 6 6 6 6
Position repeatability RP 0.10 mm 0.10 mm 0.10 mm 0.10 mm 0.10 mm 0.10 mm

0.10 mm

0.10 mm  0.10 mm 0.10 mm
Path repeatability RT 0.06 mm 0.12 mm 0.08 mm 0.12 mm    0.08 mm 0.12 mm 0.14 mm 0.07 mm 0.22 mm 0.10 mm
Controller IRC5 Single cabinet, IRC 5 Panel mounted controller IRC5 Single cabinet, IRC 5 Panel mounted controller IRC5 Single cabinet, IRC 5 Panel mounted controller IRC5 Single cabinet, IRC 5 Panel mounted controller IRC5 Single cabinet, IRC 5 Panel mounted controller IRC5 Single cabinet, IRC 5 Panel mounted controller IRC5 Single cabinet, IRC 5 Panel mounted controller IRC5 Single cabinet, IRC 5 Panel mounted controller IRC5 Single cabinet, IRC 5 Panel mounted controller IRC5 Single cabinet, IRC 5 Panel mounted controller

Range of motion

Robot version IRB 6700- 200/2.60 IRB 6700- 155/2.85 IRB 6700- 235/2.65 IRB 6700- 205/2.80 IRB 6700- 175/3.05 IRB 6700- 150/3.20 IRB 6700- 300/2.70 IRB 6700- 245/3.00 IRB 6700 Inv-300/2.60 IRB 6700 Inv-245/2.90
Axis 1 +170° to -170° +170° to -170° +170° to -170° +170° to -170° +170° to -170° +170° to -170° +170° to -170° +170° to -170° +170° to -170° +170° to -170°
Axis 2 +85° to -65° +85° to -65° +85° to -65° +85° to -65° +85° to -65° +85° to -65° +85° to -65° +85° to -65° +85° to -65° +85° to -65°
Axis 3 +70° tp -180° +70° tp -180° +70° tp -180° +70° tp -180° +70° tp -180° +70° tp -180° +70° tp -180° +70° tp -180° +70° tp -180° +70° tp -180°
Axis 4 +300 to -300° +300 to -300° +300 to -300° +300 to -300° +300 to -300° +300 to -300° +300 to -300° +300 to -300° +300 to -300° +300 to -300°
Axis 5 +130 to -130° +130 to -130° +130 to -130° +130 to -130° +130 to -130° +130 to -130° +130 to -130° +130 to -130° +130 to -130° +130 to -130°
Axis 6 +360 to -360° +360 to -360° +360 to -360° +360 to -360° +360 to -360° +360 to -360° +360 to -360° +360 to -360° +360 to -360° +360 to -360°

 Robot motion speed

Robot version IRB 6700- 200/2.60 IRB 6700- 155/2.85 IRB 6700- 235/2.65 IRB 6700- 205/2.80 IRB 6700- 175/3.05 IRB 6700- 150/3.20 IRB 6700- 300/2.70 IRB 6700- 245/3.00 IRB 6700 Inv-300/2.60 IRB 6700 Inv-245/2.90
Axis 1 110°/s 110°/s 100°/s 100°/s 100°/s 100°/s 100°/s 100°/s 100°/s 100°/s
Axis 2 110°/s 110°/s 90°/s 90°/s 90°/s 90°/s 88°/s 88°/s 88°/s 88°/s
Axis 3 110°/s 110°/s 90°/s 90°/s 90°/s 90°/s 90°/s 90°/s 90°/s 90°/s
Axis 4 190°/s 190°/s 170°/s 170°/s 170°/s 170°/s 140°/s 140°/s 140°/s 140°/s
Axis 5 150°/s 150°/s 120°/s 120°/s 120°/s 120°/s 110°/s 110°/s 110°/s 110°/s
Axis 6 210°/s 210°/s 190°/s 190°/s 190°/s 190°/s 180°/s 180°/s 180°/s 180°/s
