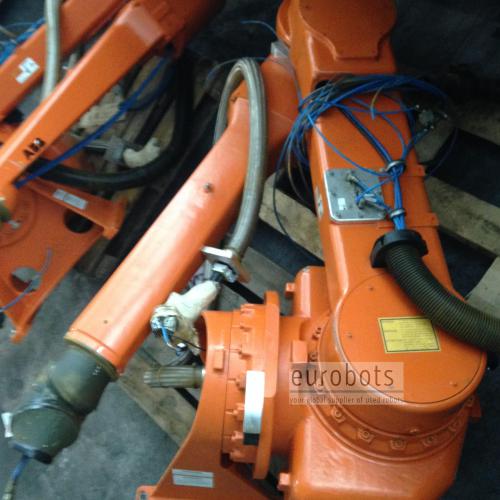

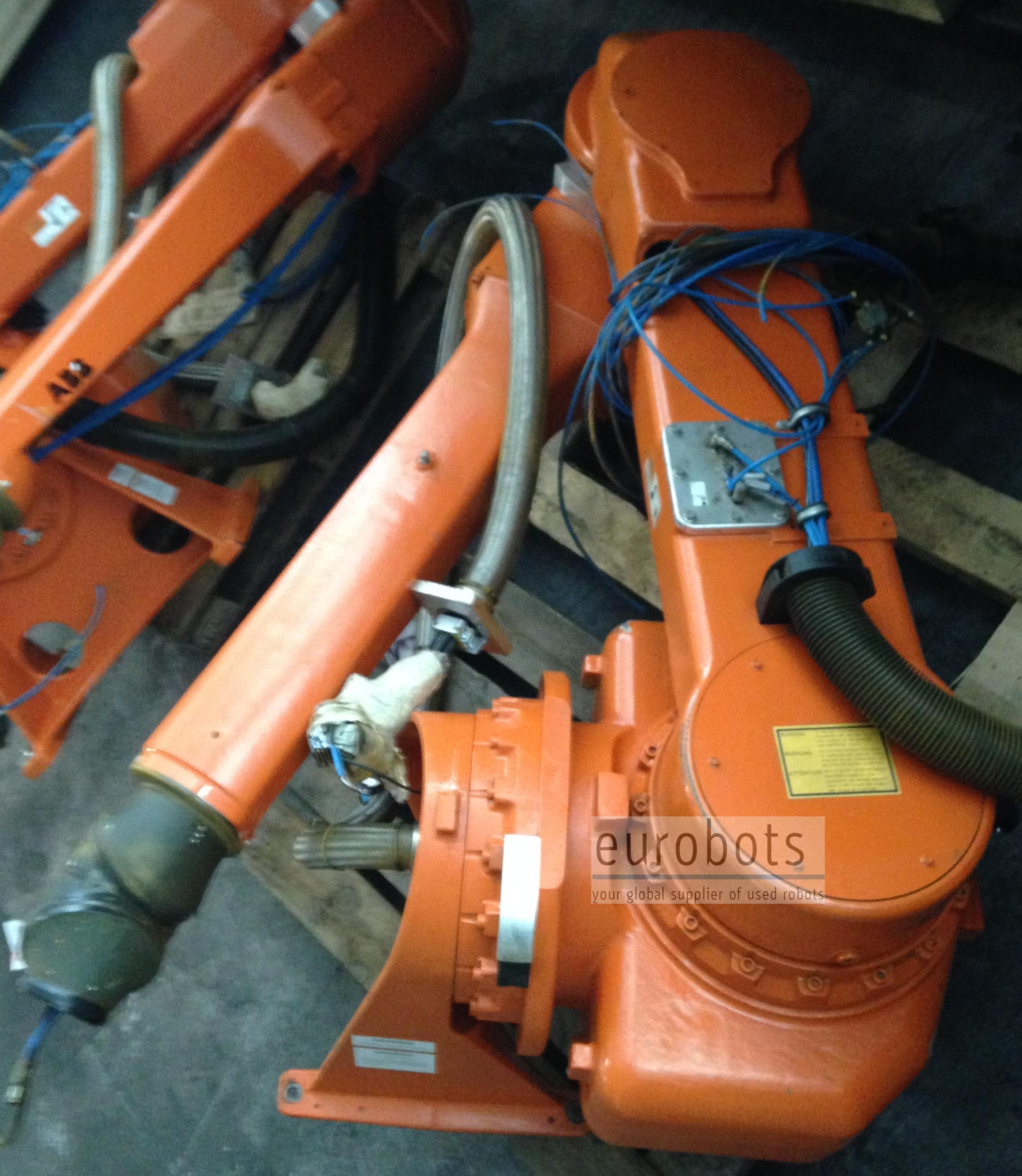

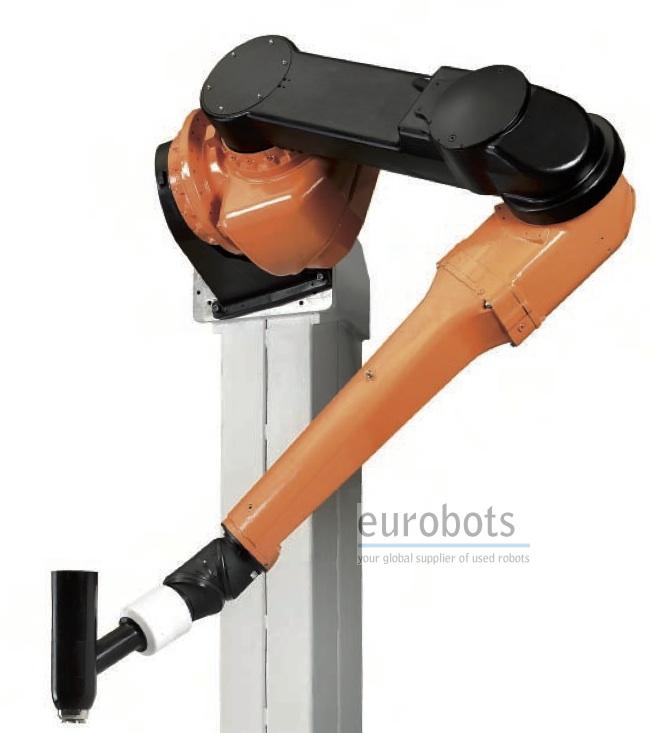

ABB flexpainter IRB 5500

Awaiting more stock

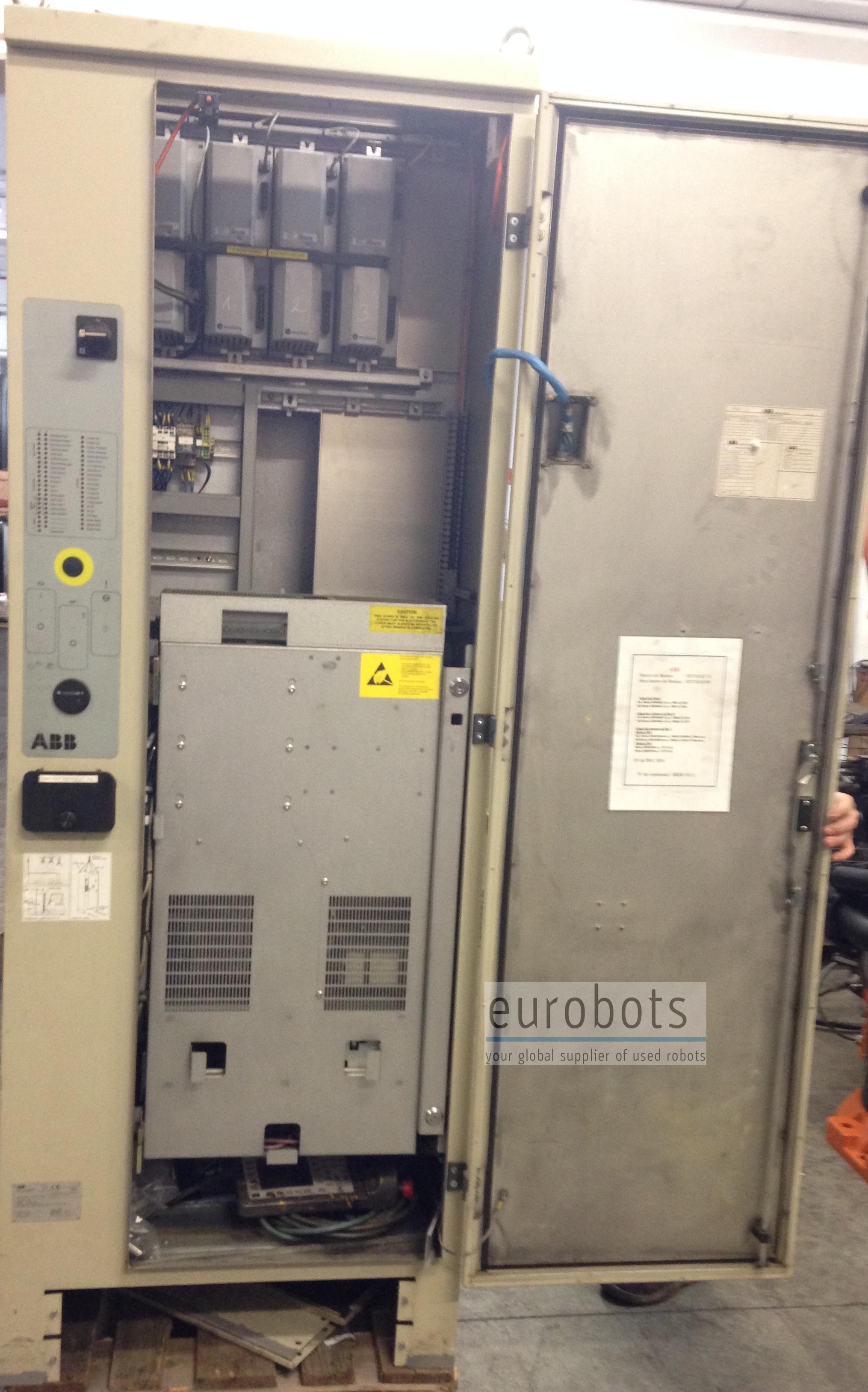

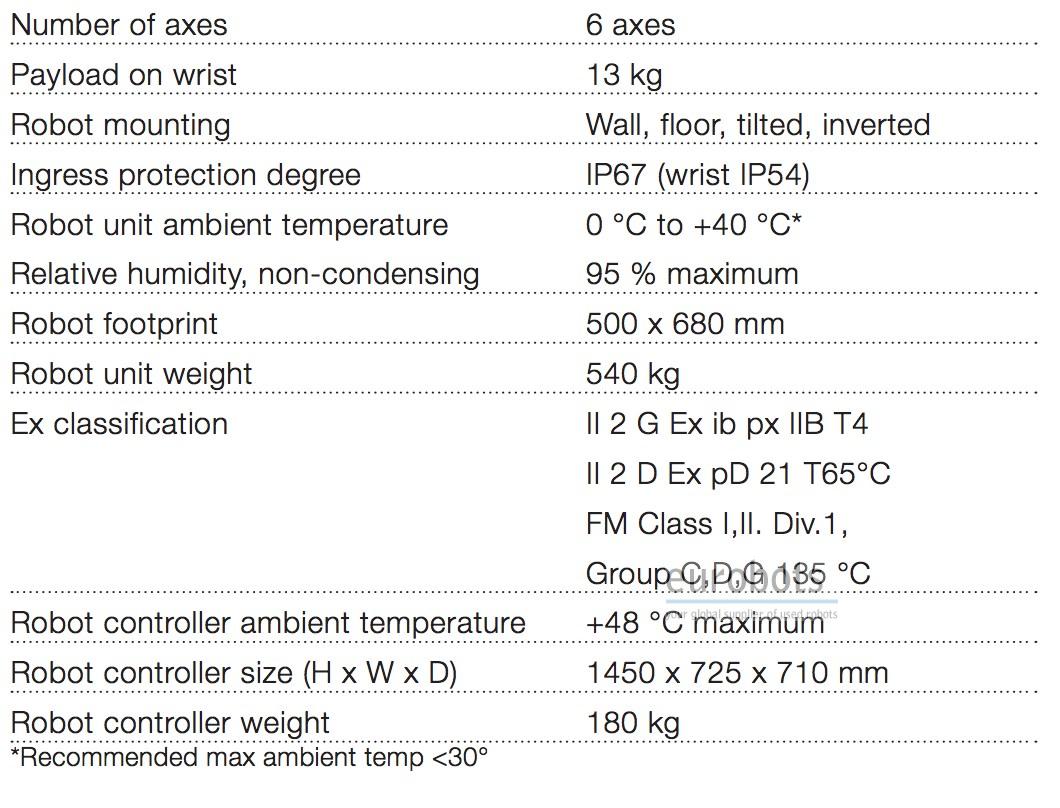

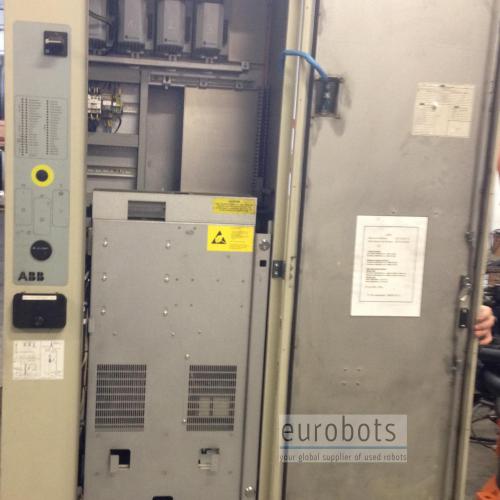

6 axis paint robot, explosion proof (ATEX) designed for wall mounting. Equipped with the S4P+ ABB exclusive paint control.

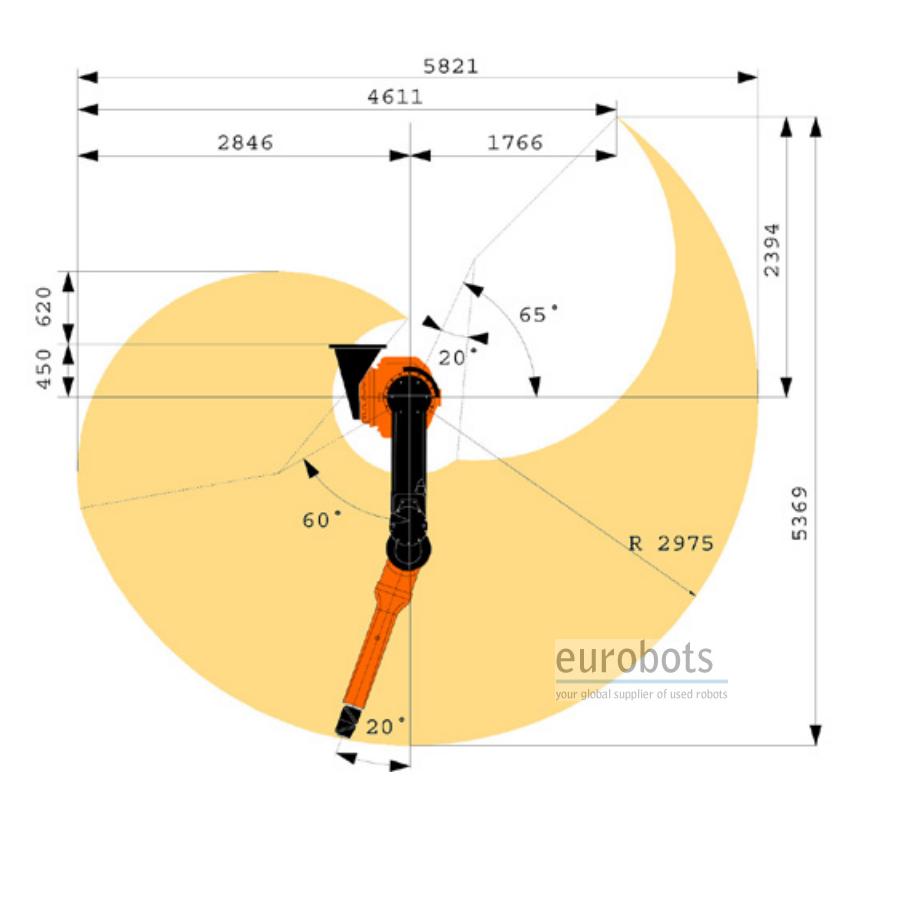

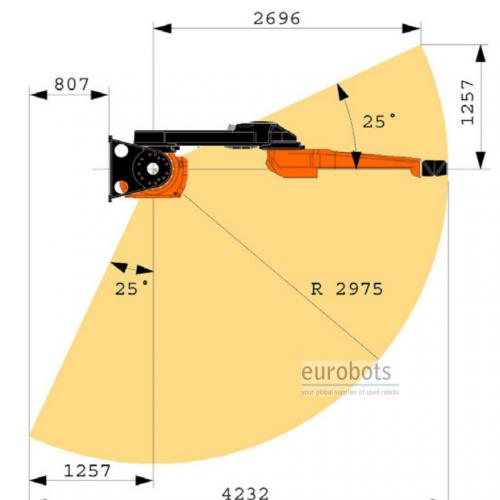

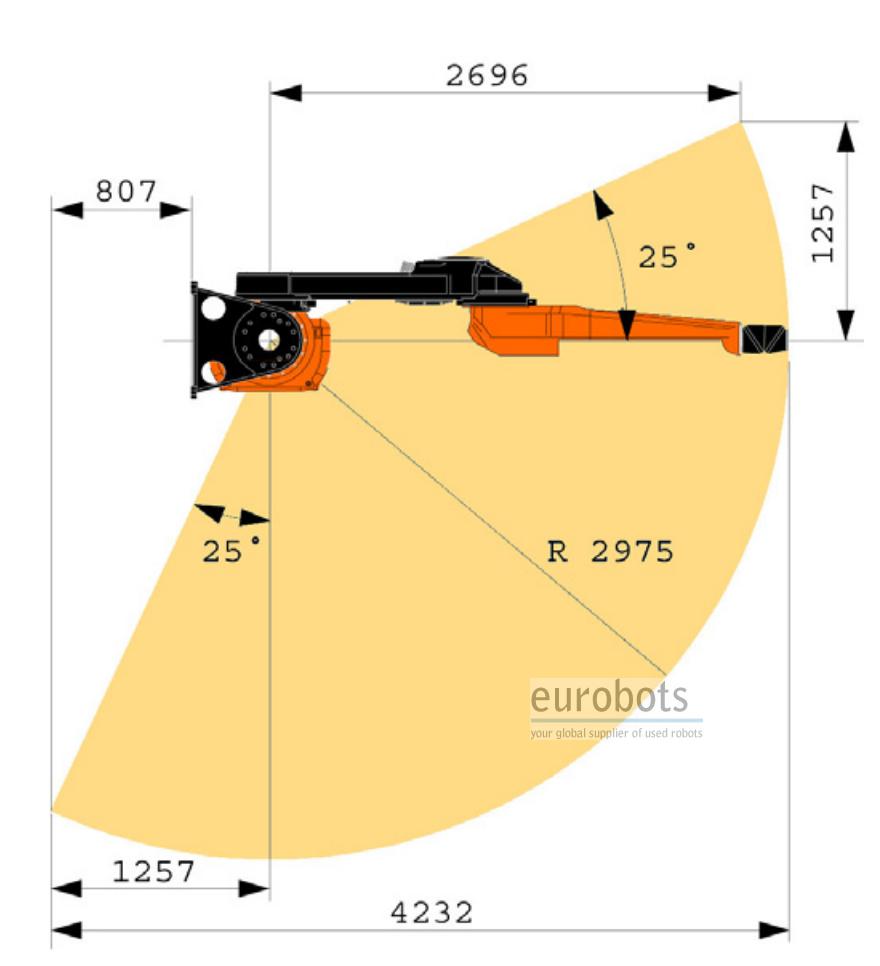

The unique design and configuration of the brand new wall mounted FlexPainter IRB 5500 has created the largest and most flexible robot working envelope of any exterior car body paint robot.

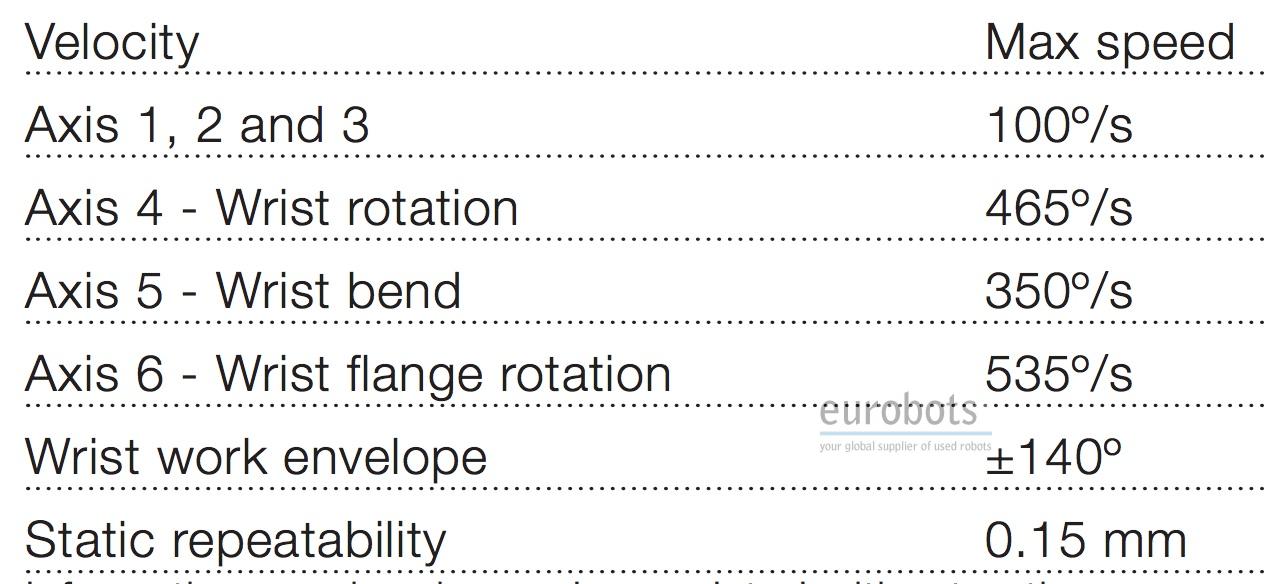

The FlexPainter IRB 5500 combines high acceleration, painting speed and large working envelope. This makes two FlexPainter IRB 5500s capable of handling jobs that up until now has required four paint robots.
ABB’s FlexBell Cartridge System (CBS) is the most efficient solution for non-batch painting and multiple coloring. The combination of ABB’s high flow atomizer and the acceleration and accuracy of the FlexPainter IRB 5500 makes this a unique power performance configuration.
The unique concept of the FlexPainter IRB 5500 allows the robot arm to move parallel to all vertical and horizontal car surfaces, eliminating the need for overlapping (patch work) painting. The result is a better finish quality and reduced paint consumption.
