ABB IRB 2400 M2004 tandem two robots - 1 x IRC5 controller

Awaiting more stock

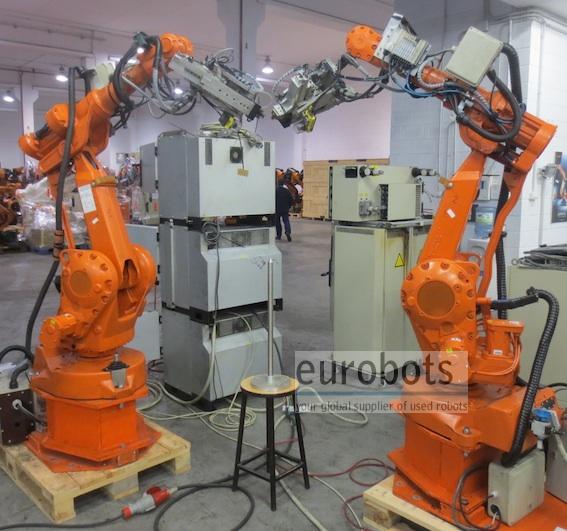

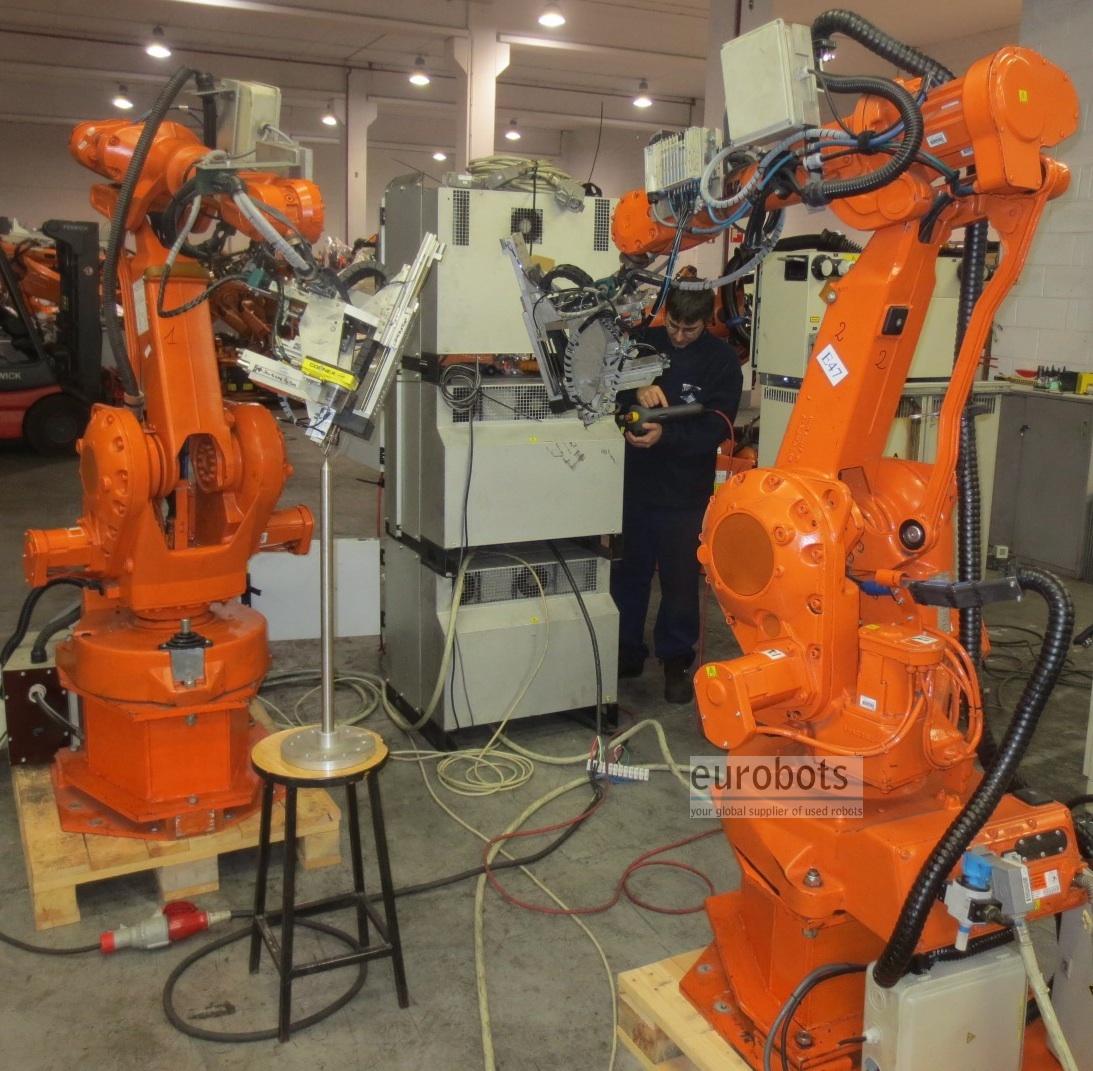

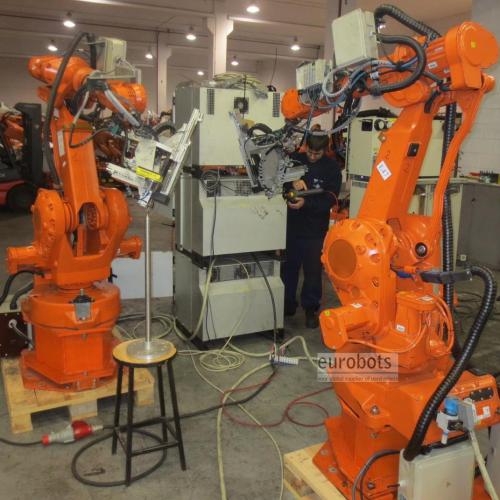

Two ABB IRB2400 robot arms controlled by a single cabinet. Both robots work synchronized allowing maximum performance and short cycle times.

ABB IRB 2400/16 M2004 features

6 axis industrial robot. 1550 mm arm reach and 20 kg payload. Equipped with the powerful IRC5 controller.

The IRB 2400 in its different versions and best accuracy, gives excellent performance in material handling, machine tending and process applications. IRB 2400 offers you increased production rates, reduced lead times and faster delivery for your manufactured product.

  • Reliable – High production up time
    IRB 2400 is the world’s most popular industrial robot The robust construction and use of minimum parts contribute to high reliability and long intervals between maintenance.
  • Fast – Short cycle times
    Thanks to the ABB´s unique motion control of the robot optimizes the acceleration and retardation, which results in shortest cycle time possible.
  • Accurate – Consistent parts quality
    Best in class regarding path accuracy and position repeatability (RP = 0.06 mm)
  • Strong – Maximized utilization
    Payload options are between 7 -20 kg. Max reach 1.810 m.
  • Robust – Harsh production environment
    IP 67 classified, steam washable, clean room (class 100) and “Foundry Plus” optional.
  • Versatile – Flexible integration and production
    All models offered with inverted mounting capability.

Robot Info

    Maximum Load of Robot: 20 Kg.

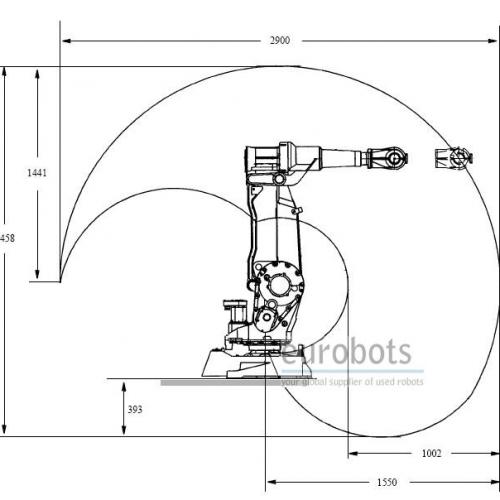

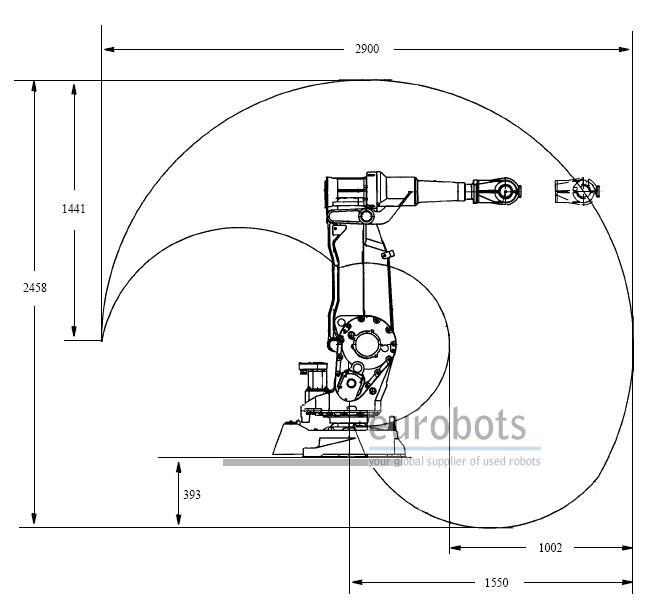

    Maximum Reach: 1550 mm.
    Repeatability: 0,15 mm.

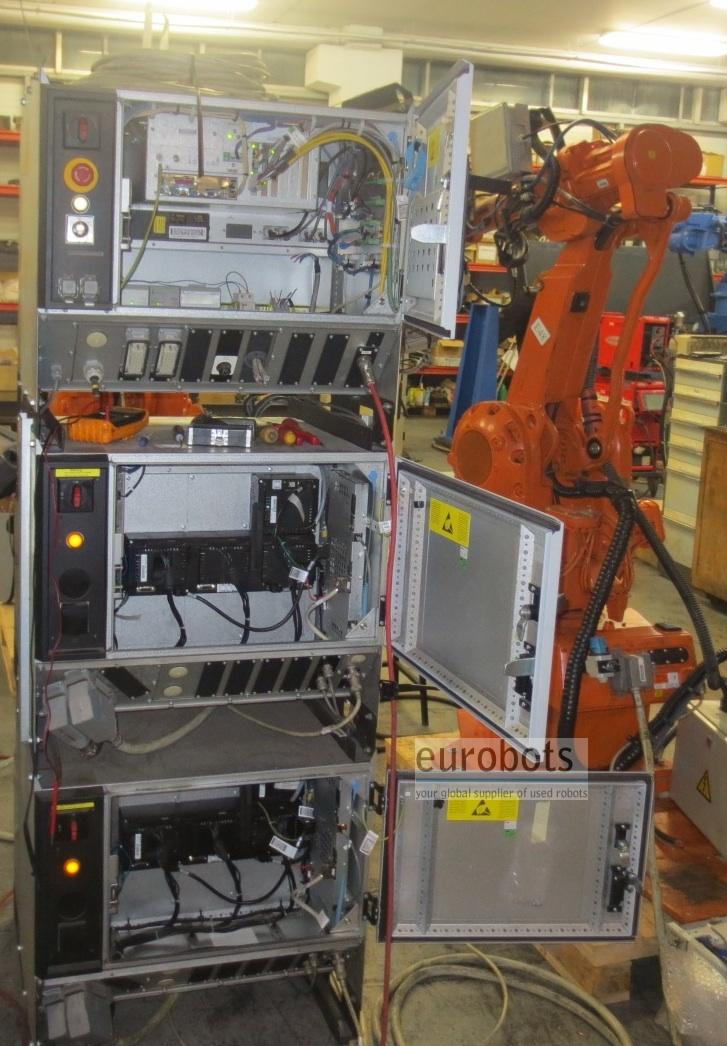

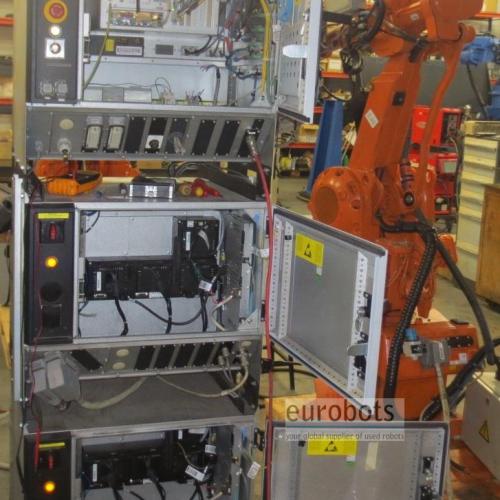

    Controller: IRC5 M2004 tandem - 1 controller for 2 robot arms

Robot Motion Speed

    Axis 1: 150º/s
    Axis 2: 150º/s
    Axis 3: 150º/s
    Axis 4: 360º/s
    Axis 5: 360º/s
    Axis 6: 450º/s

Robot applications

    Arc welding
    Material handling
    Polishing
    Machining
