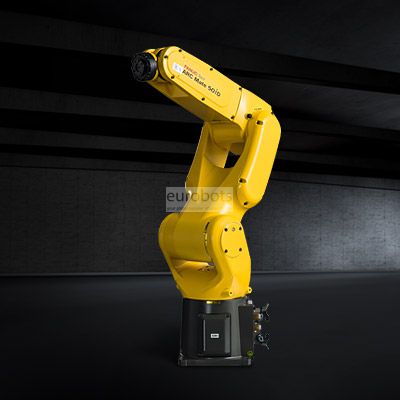

Fanuk ARC Mate 50iD

Awaiting more stock

ARC Mate 50iD robot for welding of high quality provided thanks to its light and compact structure that allows to work in narrow spaces with a high performance. With degree of protection in IP67 wrist for work in environments with water and dust and optional the IP69K.

R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Main specifications

Maximum Load of Robot: 7 Kg
Number of axis: 6
Maximum horizontal reach: 717 mm
Repeatability: ± 0.02
Controller: 30iB

Motion range (°)

Axis 1: 360°
Axis 2: 245°
Axis 3: 420°
Axis 4: 380°
Axis 5: 250°
Axis 6: 720°

Maximum speed (°/s)

Axis 1: 450°/s
Axis 2: 380°/s
Axis 3: 520°/s
Axis 4: 550°/s
Axis 5: 545°/s
Axis 6: 1000°/s

Robot applications

Arc welding


उपयोग

Pengelasan busur , Pengelasan spot , Stud welding
