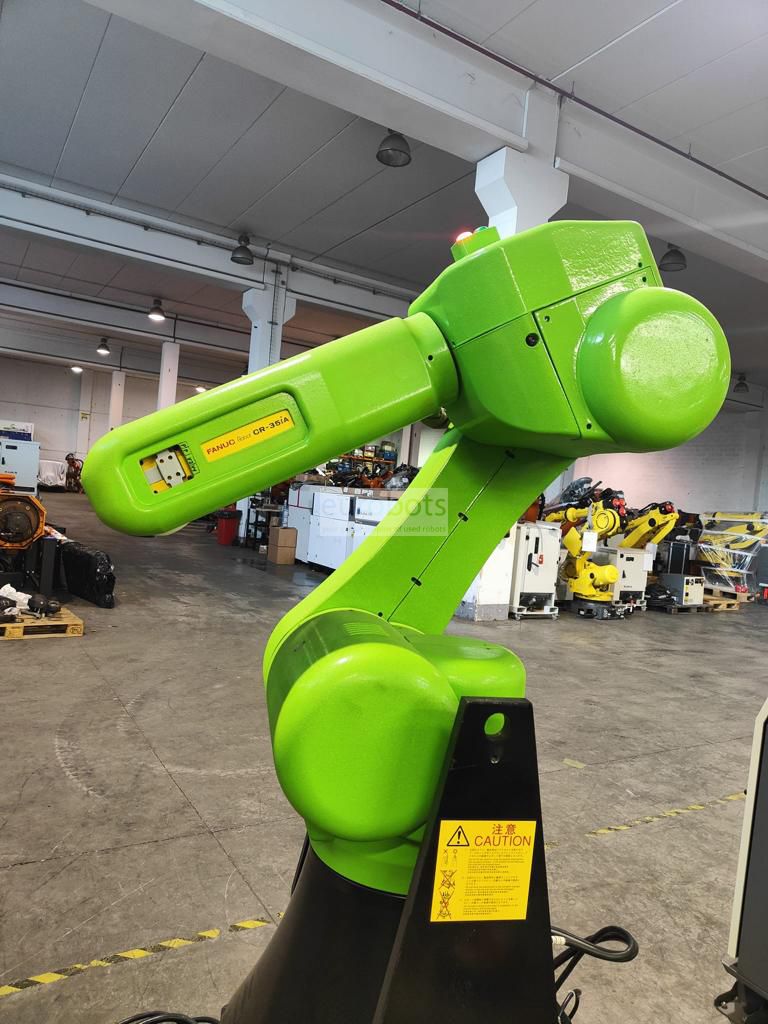

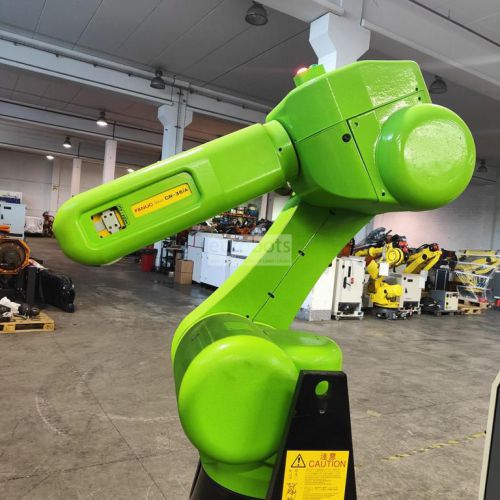

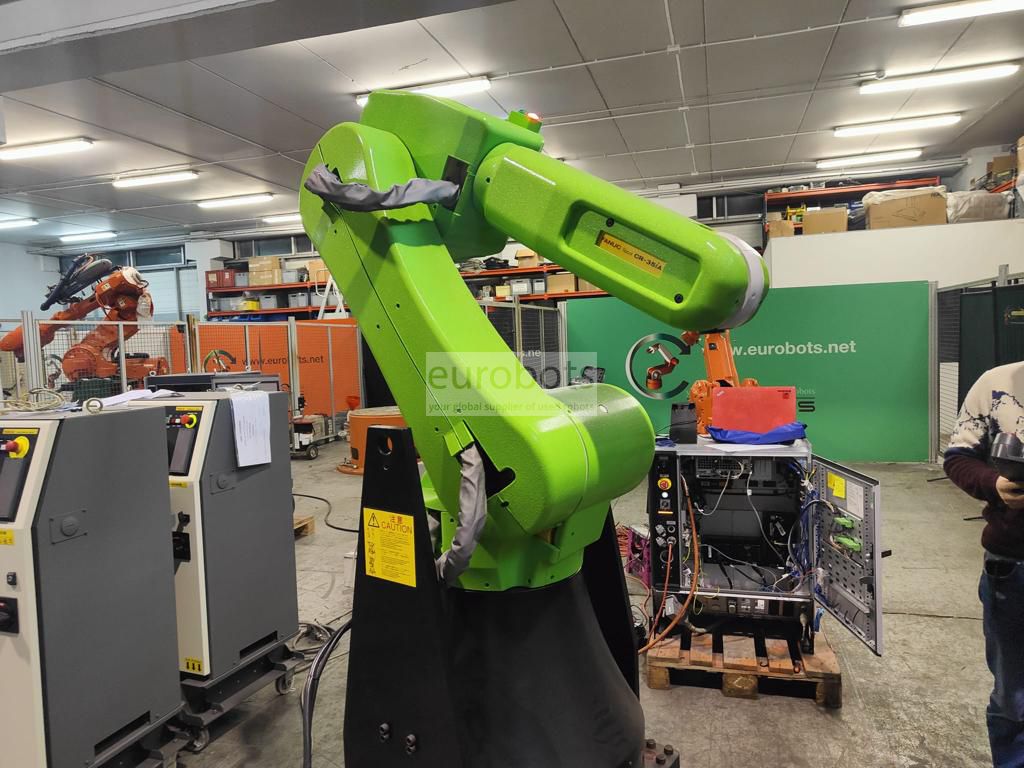

Fanuc Collaborative robot CR-35iA

Awaiting more stock

CR-35iA collaborative robot characterized by its load capacity of 35 kg ideal for manipulation of heavy elements in any position, reach of 1813 mm, has a system of integrated sensors that stops allow the robot greater strength and safety in the process of easy programming production; certificate in security.

R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.

Main specifications
Maximum Load of Robot: 35 Kg
Number of axis: 6
Maximum horizontal reach: 1813 mm
Repeatability: ± 0.04 mm (Based on ISO9283)
Controller: R30iB
Motion range (°)
Axis 1: 370°
Axis 2: 165°
Axis 3: 258°
Axis 4: 400°
Axis 5: 220°
Axis 6: 900°
Maximum speed (°/s)
max. cartesian speed 500mm/sec (750mm/sec when safety monitored)
Robot applications
Pick and Place
Handling machine


Pembuatan palet , Memuat dan membongkar suku cadang , Penanganan suku cadang , Perakitan bagian
