Fanuc M-710i C/70T series on track

Awaiting more stock

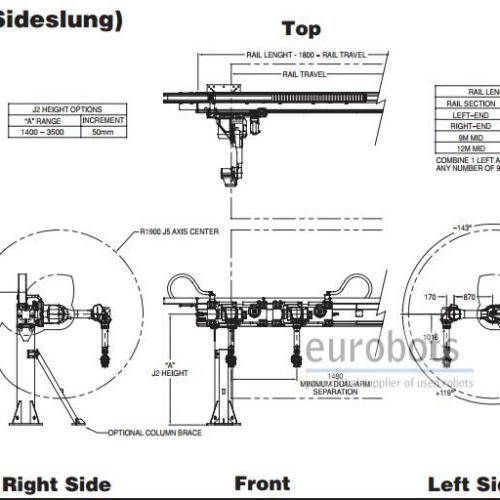

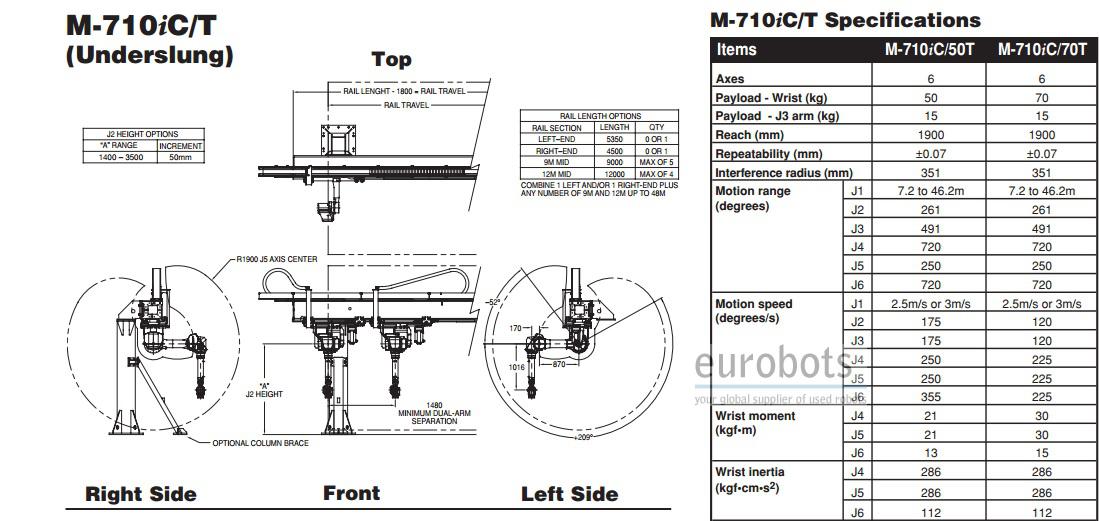

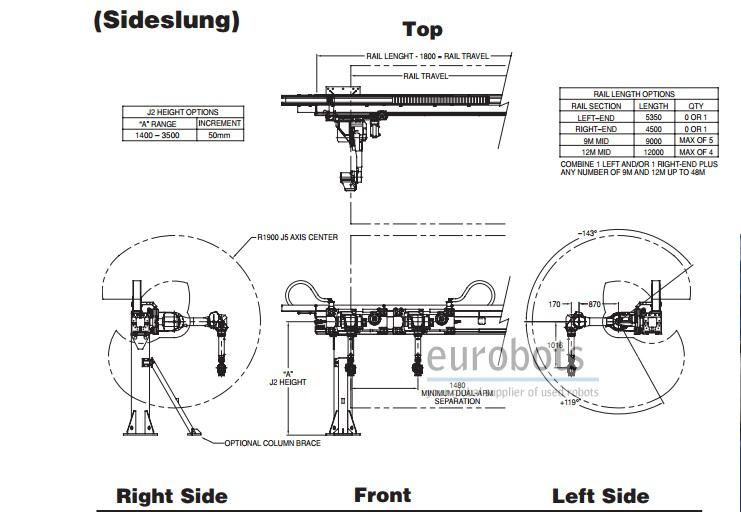

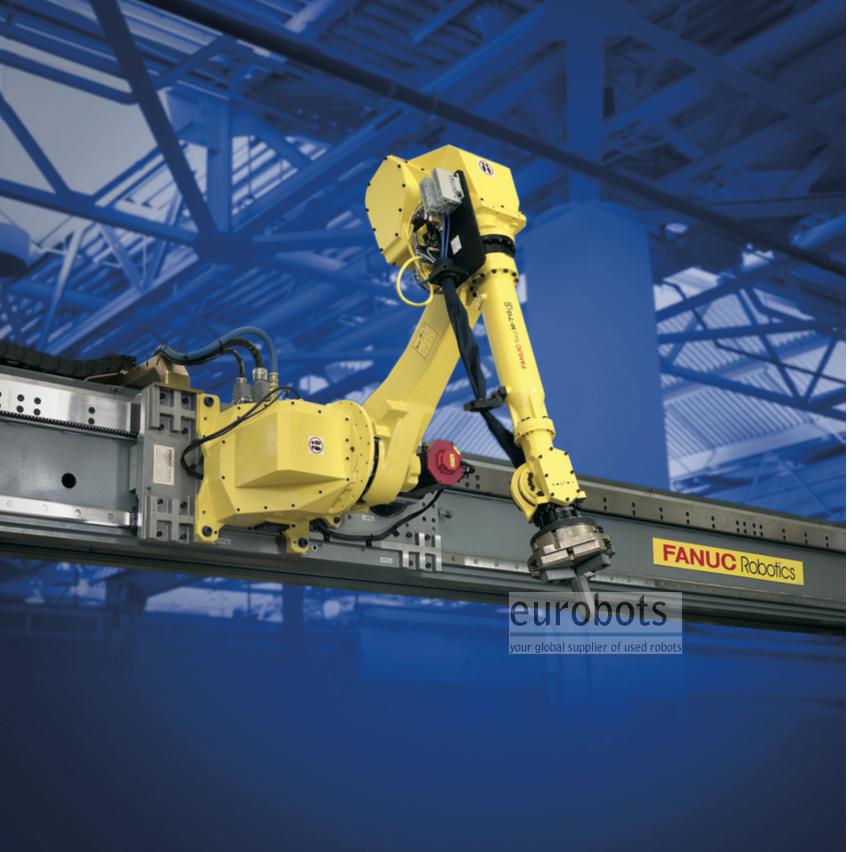

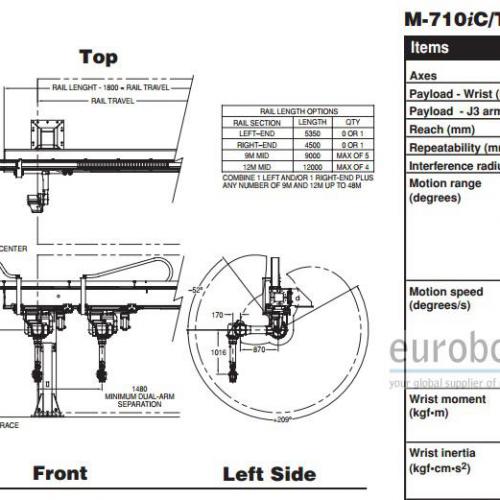

Year 2010, a rail mounted version of the 710 Fanuc robot. A 6 axis system that helps to add a robotic arm in a short time and with reduced cost. Can replace complex peripherals for handling and palletizing. The particular suspended figure would permit to use the robot either in vertical and horizontal machines. This robot is in the strongest verion (70KG) with it's original rail. The rail is modular and it can be extented up to 46.2m, the speed in the rail can go from 2.5m/s to 3 m/s. This robot was engineered for high precision and high speed task.

Coupled with the state of the art R-30iA controller.

R-30iA features

The R-30iA controller needs less than 1 minute to start (and even less with the basic software only). In case of power failure:

Robot program restarts much quicker than with any PC-based program (non-Windows operating system).

The resume hotstart function allows restarting safely and continuing production after power failure: no need to re-do the whole movement.
Unique resume tolerance check: in case of any program interruption, the robot automatically memorises its position before failure. When the program continues, it checks whether the robot has been moved outside of a preset tolerance. This avoids unexpected movements and collisions.
Increased up-time (robot availability)

VIBRATION CONTROL

Thanks to enhanced hardware and software capacities, the R-30iA controller offers much better robot vibration control. This greatly reduces the robot’s acceleration and deceleration times, leading to reduced cycle times.

WIDE RANGE OF CONNECTIONS (USB2), PCMCIA INTERFACE...

The R-30iA controller has an USB interface in the front panel and a PCMCIA interface inside of the control cabinet
2 serial interface connections (RS232C, RS422) available
Printer Connect
Data Transfer (option)
Sensor interface (option)
CRT keyboard (option)
User specific data transfer using KAREL option

This allows fast and economical back-ups and restore of data and programs.

The FANUC iPendant is an intelligent teach pendant and is available as standard (except for PaintTool). Touch screen is available as option.

Access via Ethernet to web sites
Pendant view status of peripheral equipment and other robots‘ html web server pages (when available)
Coloured, multi-windows display
Customizable screen

Easier work with the robot, enhanced productivity.

उपयोग

Palletising , Painting , Loading and unloading of parts , Machining , Handling of parts , Polishing , Assembly of parts , Glueing - Adhesive bonding
