KUKA KR 210 on KL1500 linear track

Awaiting more stock

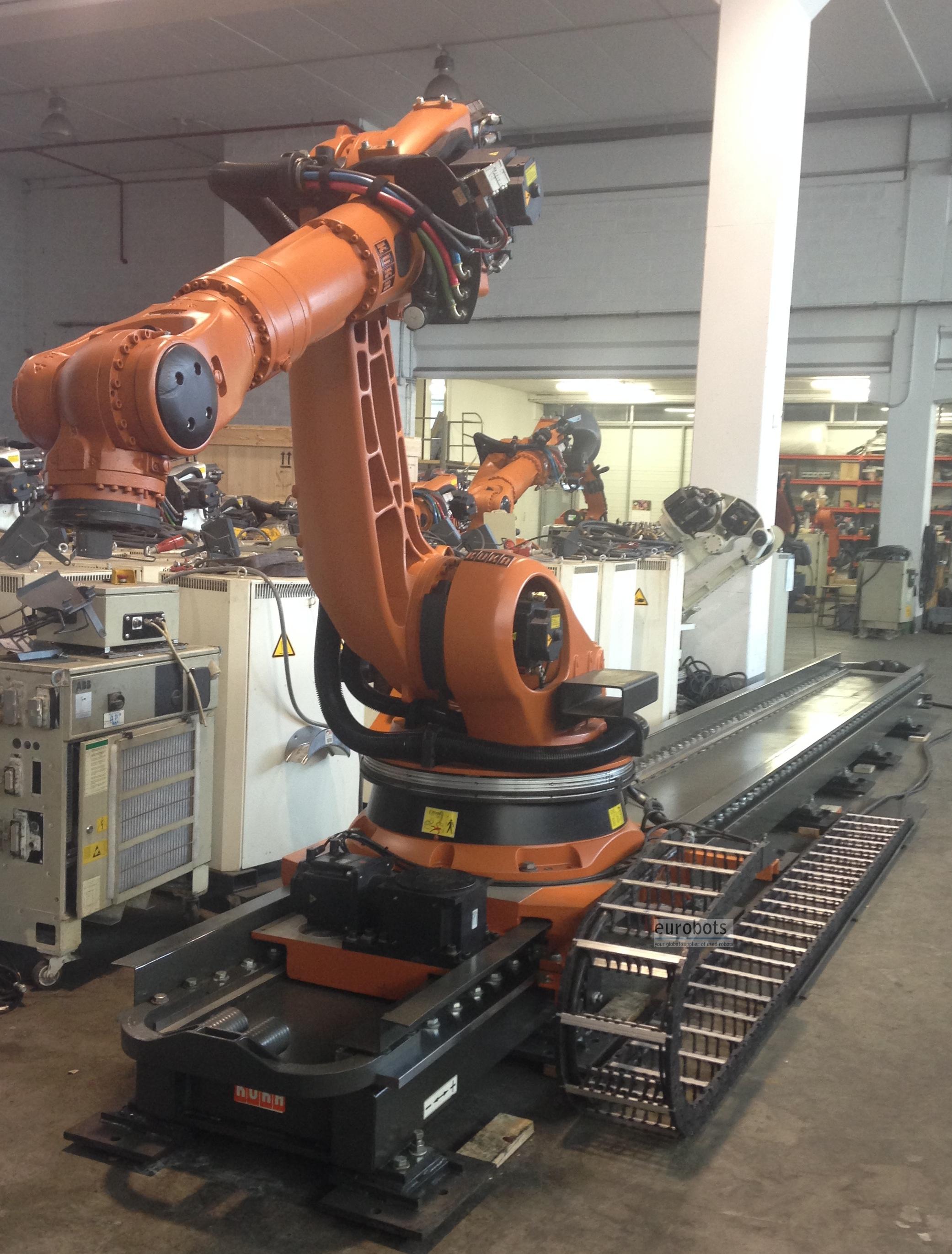

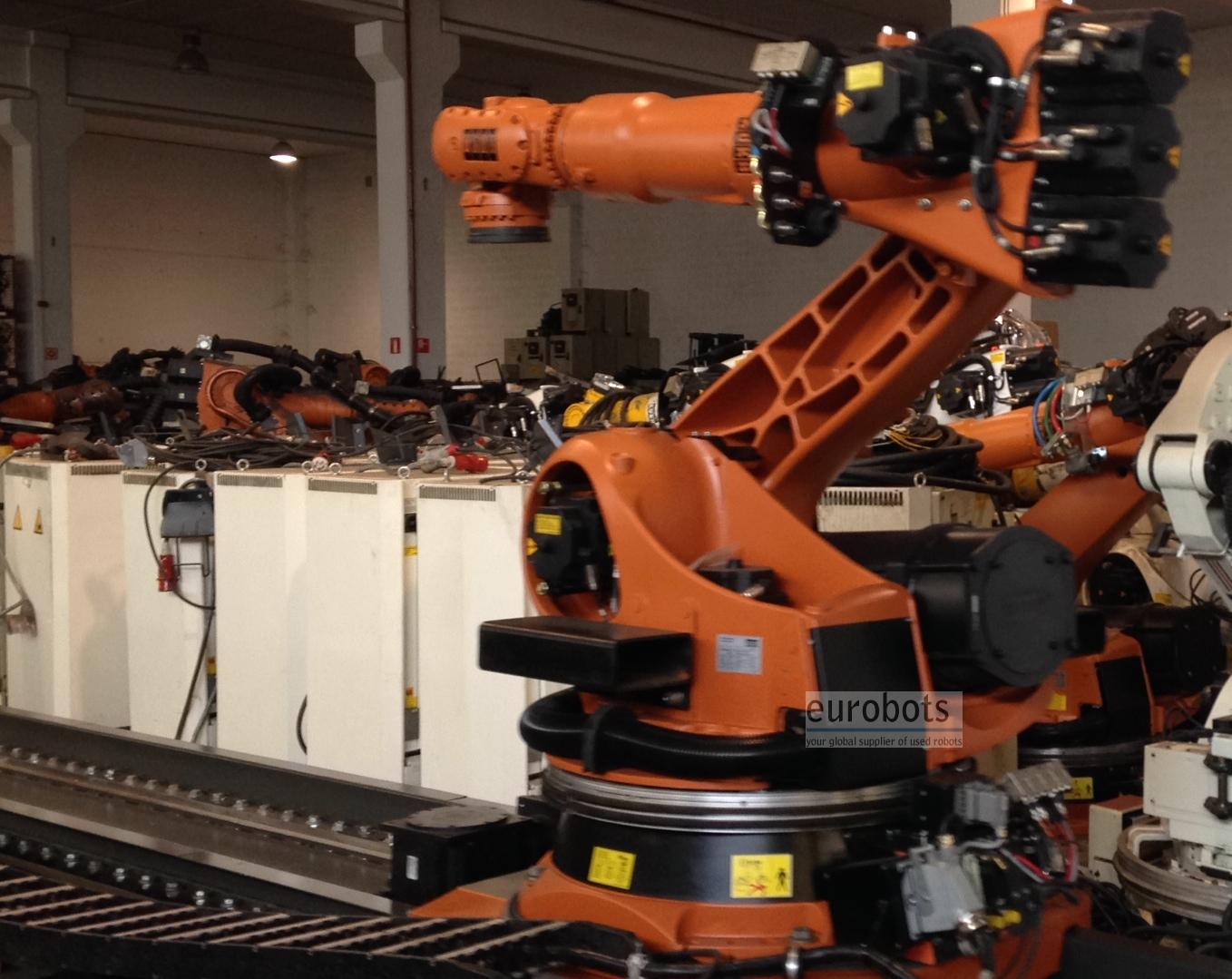

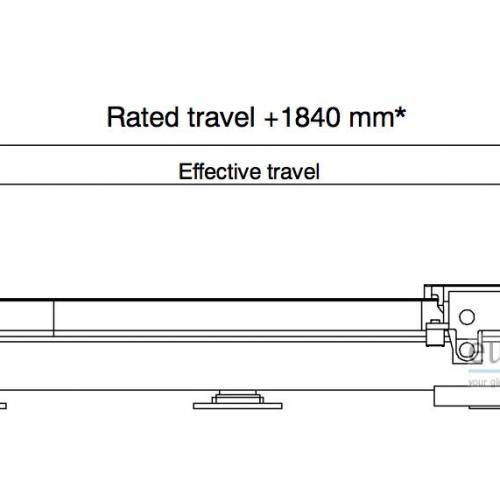

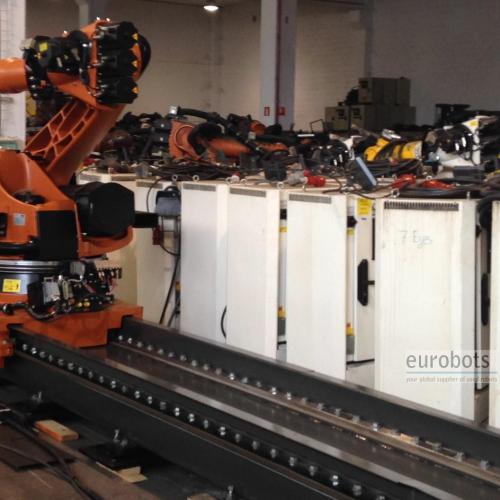

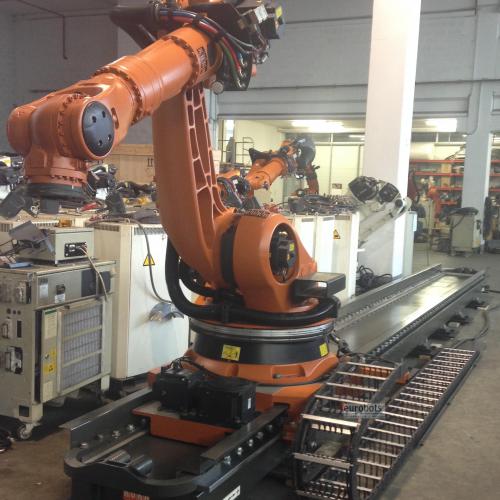

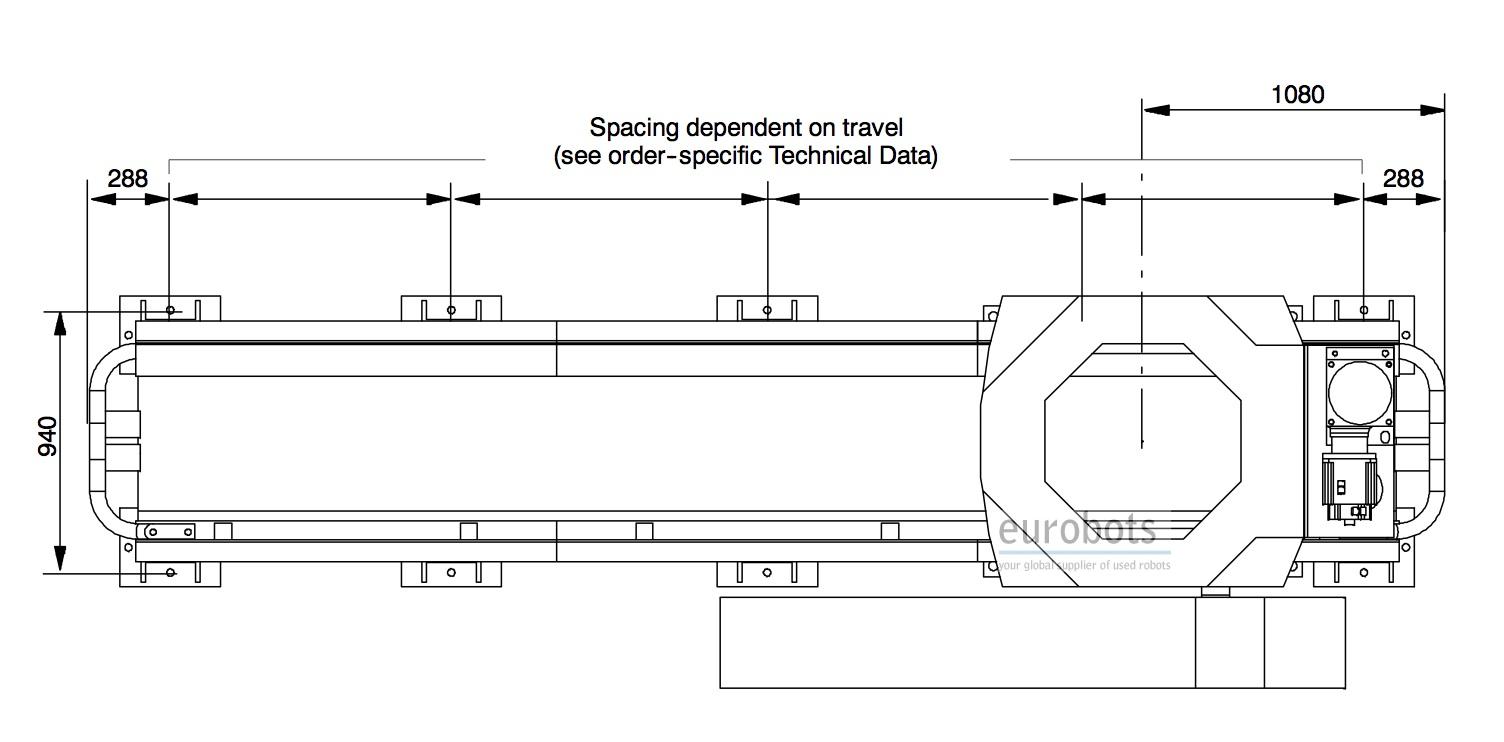

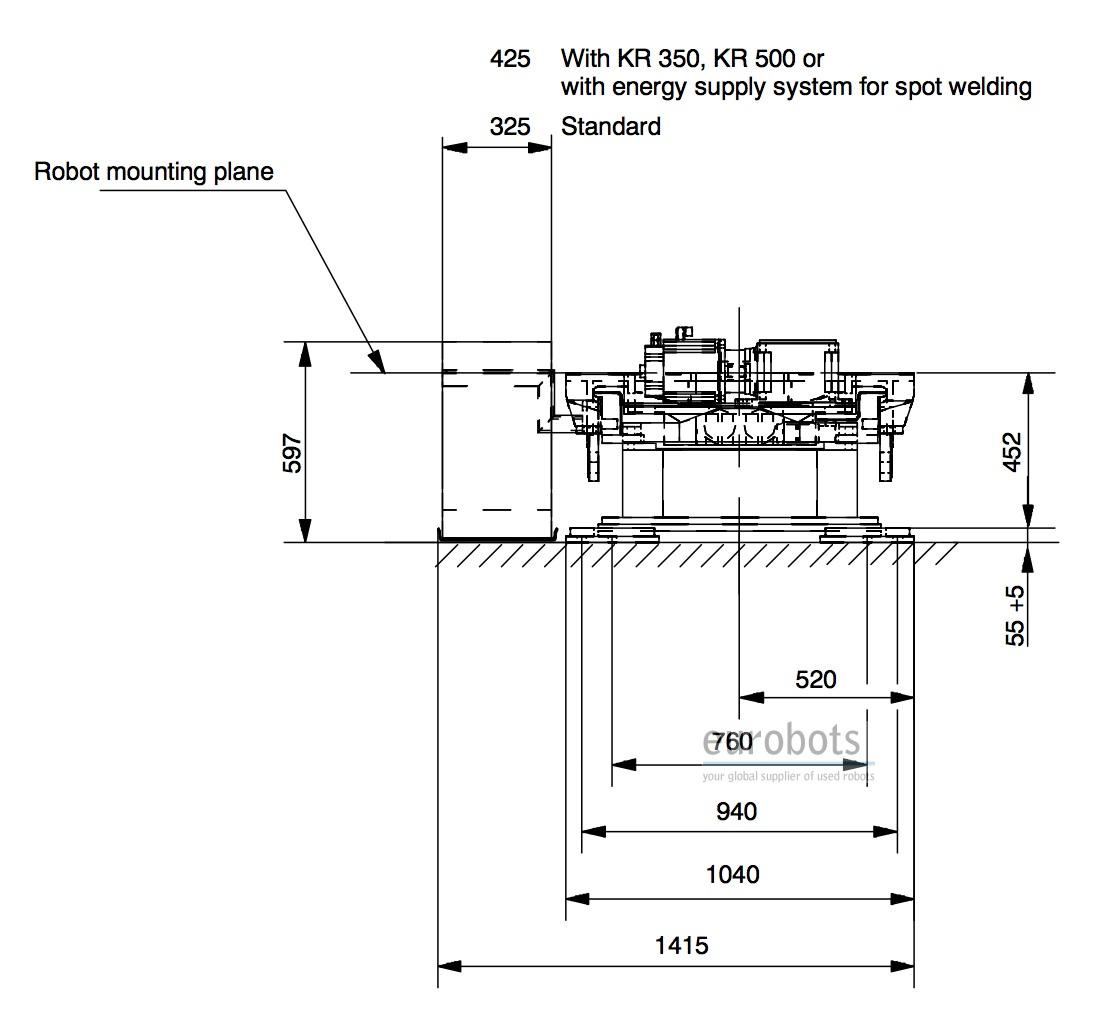

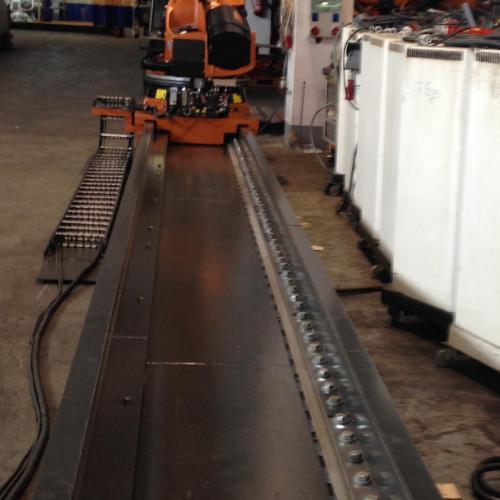

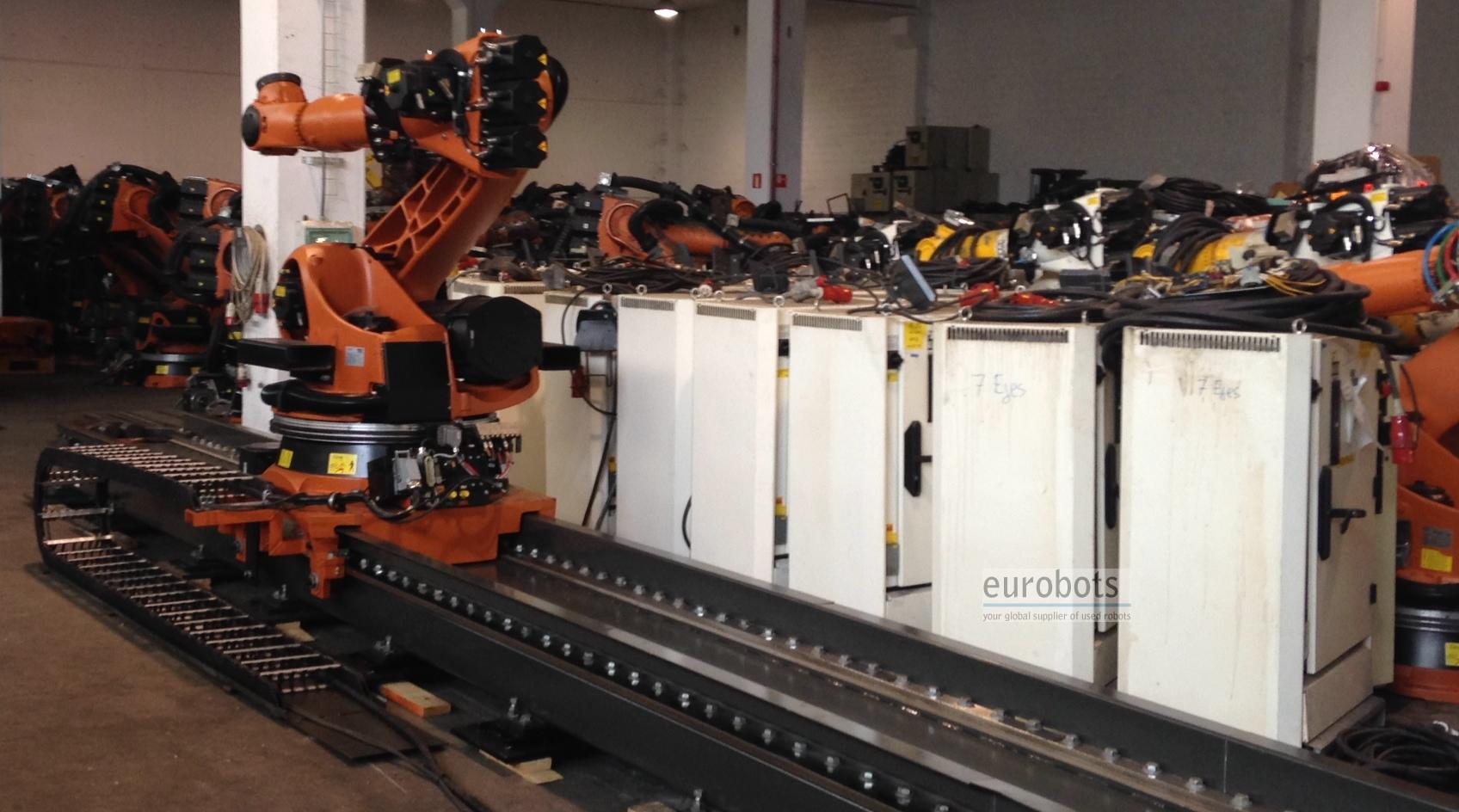

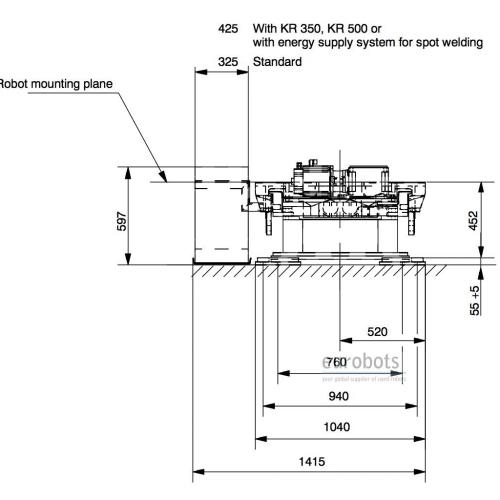

Kuka KR210 S2000 heavy payload industrial robot on a KL1500 7 axis linear track with lenghts ranging from 2000 to 15000 mm.

Available in three versions attending to the arm reach / payload: KR 210 (2700 mm / 210 kg) , KR 210L180 (2900 mm / 180 kg) , KR 210L150 (3100 mm / 150 kg).

Suitable for machining, spotwelding, measuring, handling and palletizing applications.

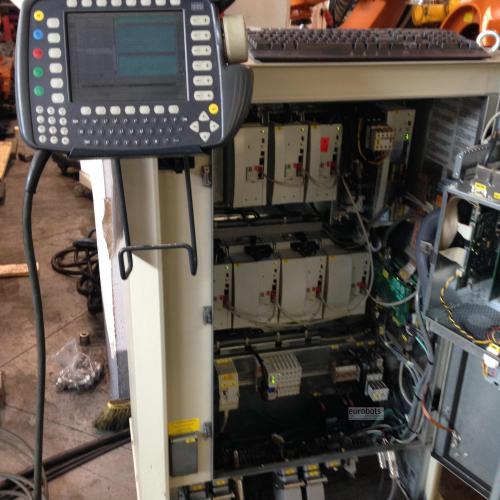

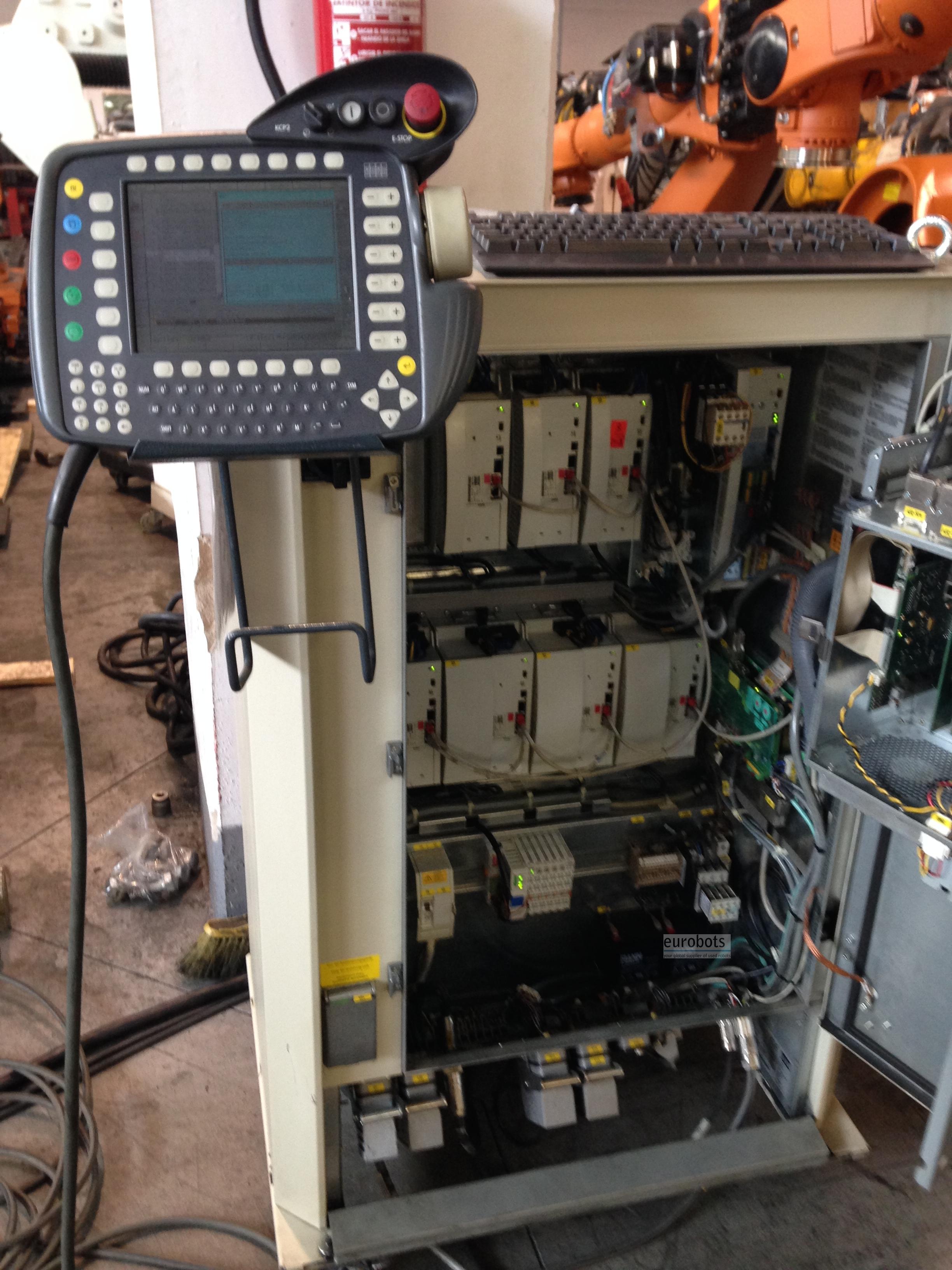

Equipped with the KRC2 controller available in two versions attending to the software version: 5.2.14 on WinXP with handling and welding software technologies.

The KR C2 robot controller makes programming easier with its Microsoft Windows interface. It is expandable, can be integrated into networks via a bus, and contains ready-made software packages.

KR C2 features

* Open, network-capable PC technology
* 2 free slots for external axes
* DeviceNet and Ethernet slots for common bus systems (e.g. INTERBUS, PROFIBUS, DeviceNet) provided as standard
* Motion profile function for optimal interaction between the individual robot motors and their velocity
* Floppy disk and CD-ROM drives for data backup
* Facilities such as remote diagnosis via the Internet
* Simple operation and programming via KUKA Control Panel (KCP) with Windows user interface
* Compact control cabinet
* Ergonomic KUKA Control Panel (KCP)

Robot Info

  • Maximum Load of Robot: 210/180/150 Kg
  • Maximum Reach: 2700/2900/3100 mm
  • Repeatability: 0.15
  • Controller: KR C2

Axis Speed in º/s for the models: KR 210 / KR 210 L180 / KR 210 L150Axis 1: 86º/s (all 3 models)

  • Axis 2: 84º/s (all 3 models)
  • Axis 3: 84º/s  84º/s 81º/s
  • Axis 4: 100º/s (all 3 models)
  • Axis 5: 110º/s (all 3 models)
  • Axis 6: 184º/s (all 3 models)

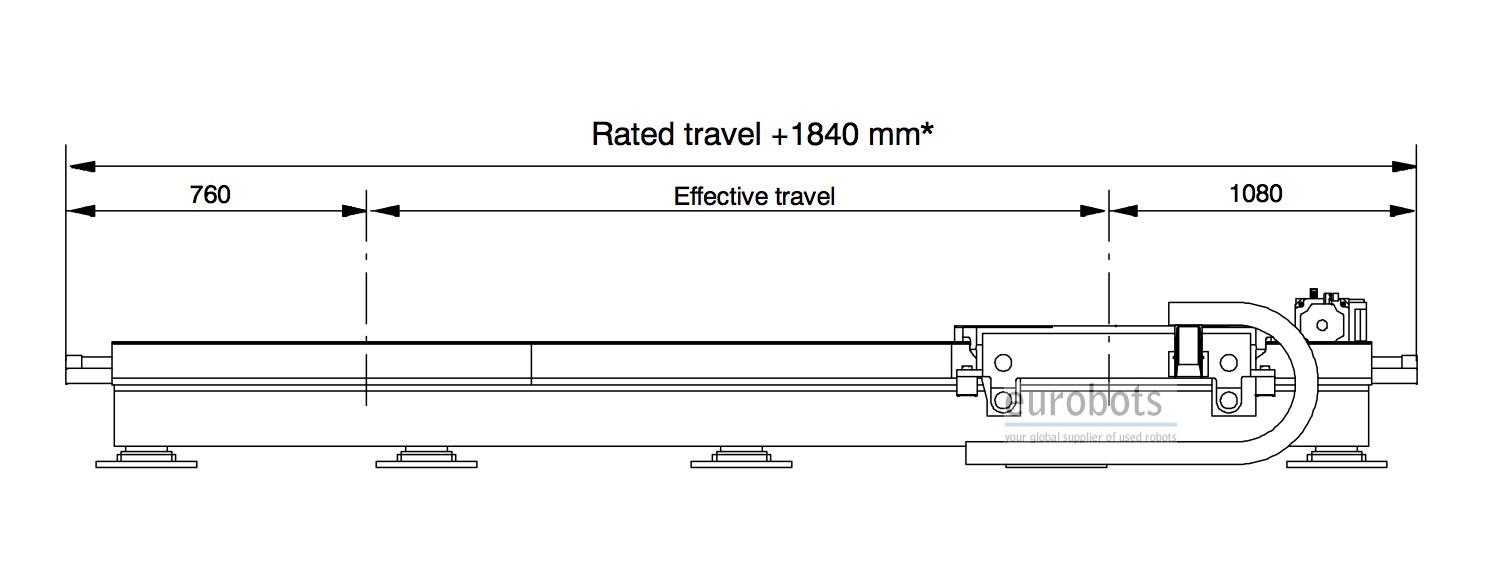

  • Axis 7: (speed in mm/s): 1450 mm/s

Range of motion (Axis 1 to 6)

  • Axis 1: +- 185º
  • Axis 2: +90 to -61º
  • Axis 3: +65º to -209º
  • Axis 4: +-350º
  • Axis 5: +-125º
  • Axis 6: +-350º

उपयोग

Pengelasan busur , Pengelasan spot , Tekan merawat , Memuat dan membongkar suku cadang , Mesin , Penanganan suku cadang , Laser cutting , Laser welding Nd-Yag , Lem - Ikatan perekat , Stud welding , Pemotongan plasma
