Heaviest payload version of the KR360-KR500 class. Identical in geometry to the KR 360, yet with a more powerful hand which can make this robot handle up to 500 kg.

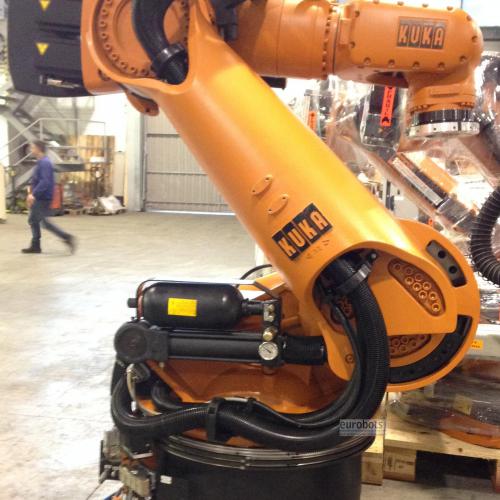

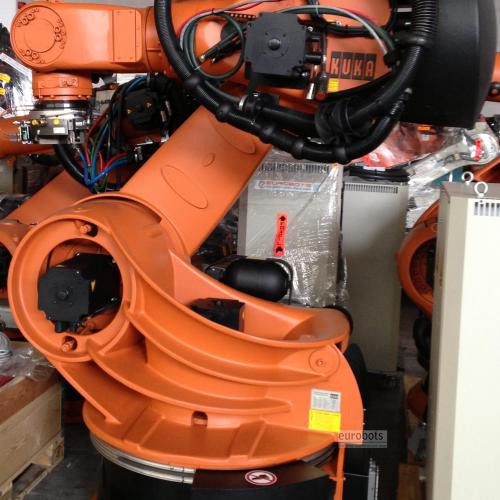

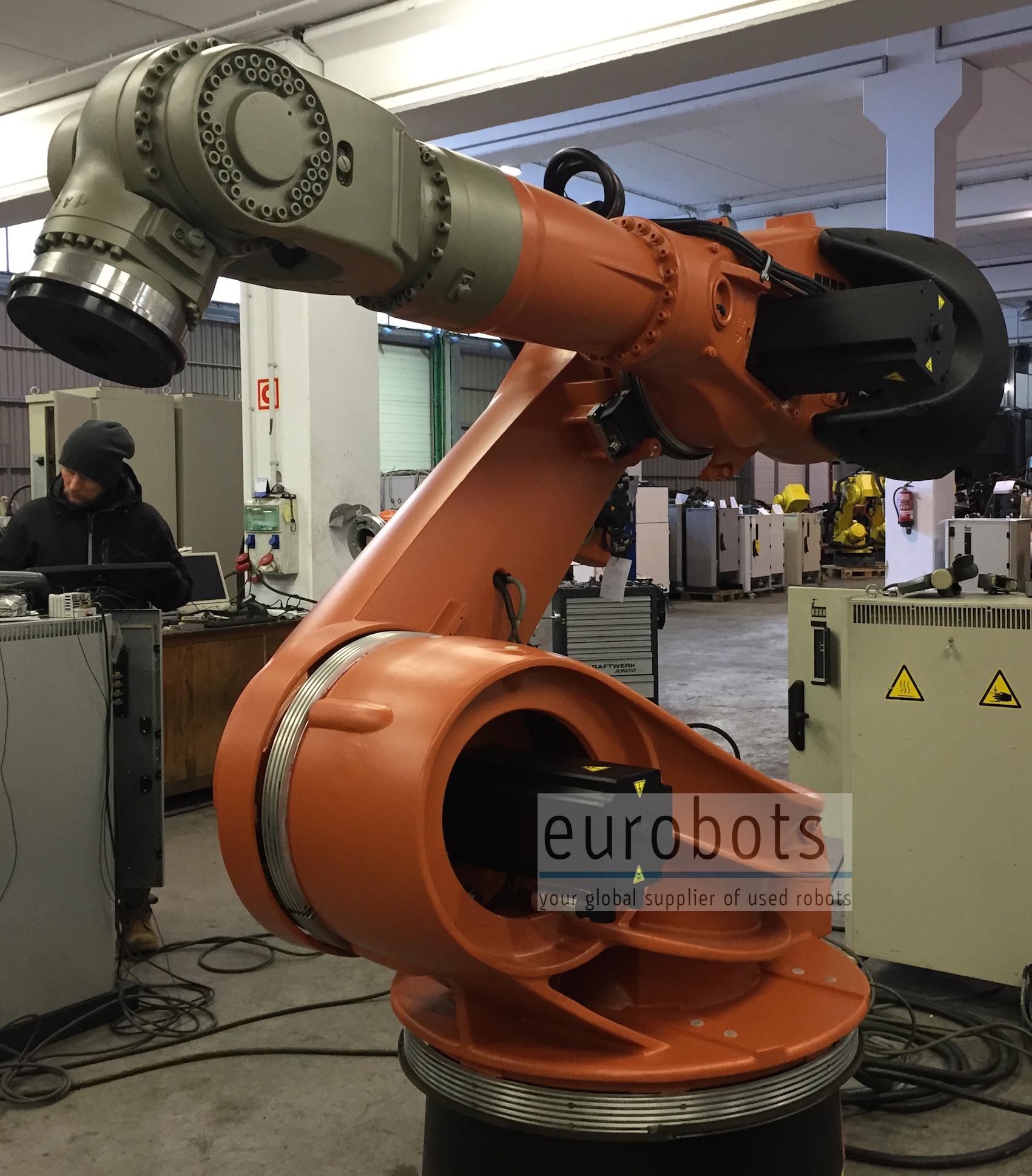

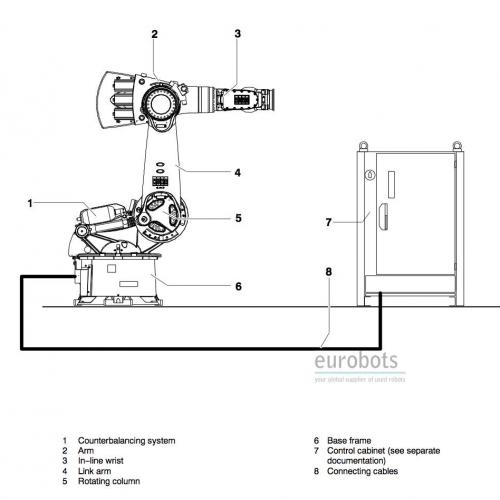

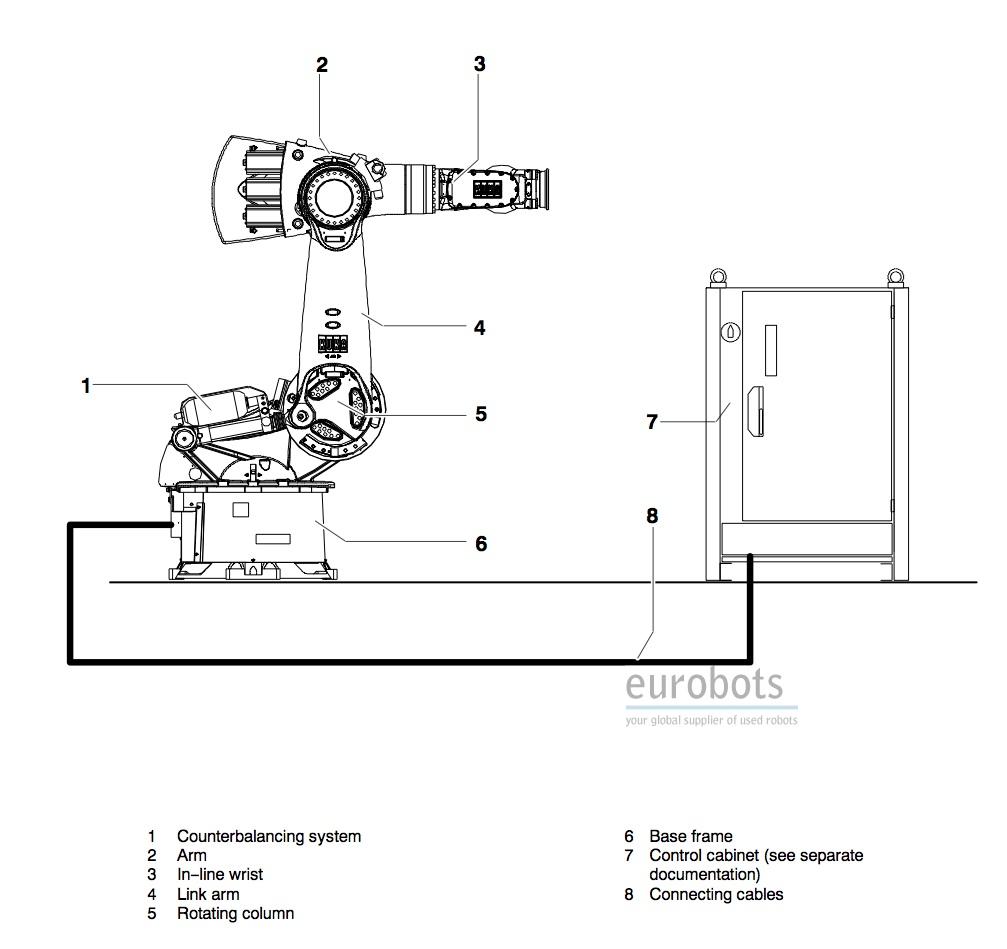

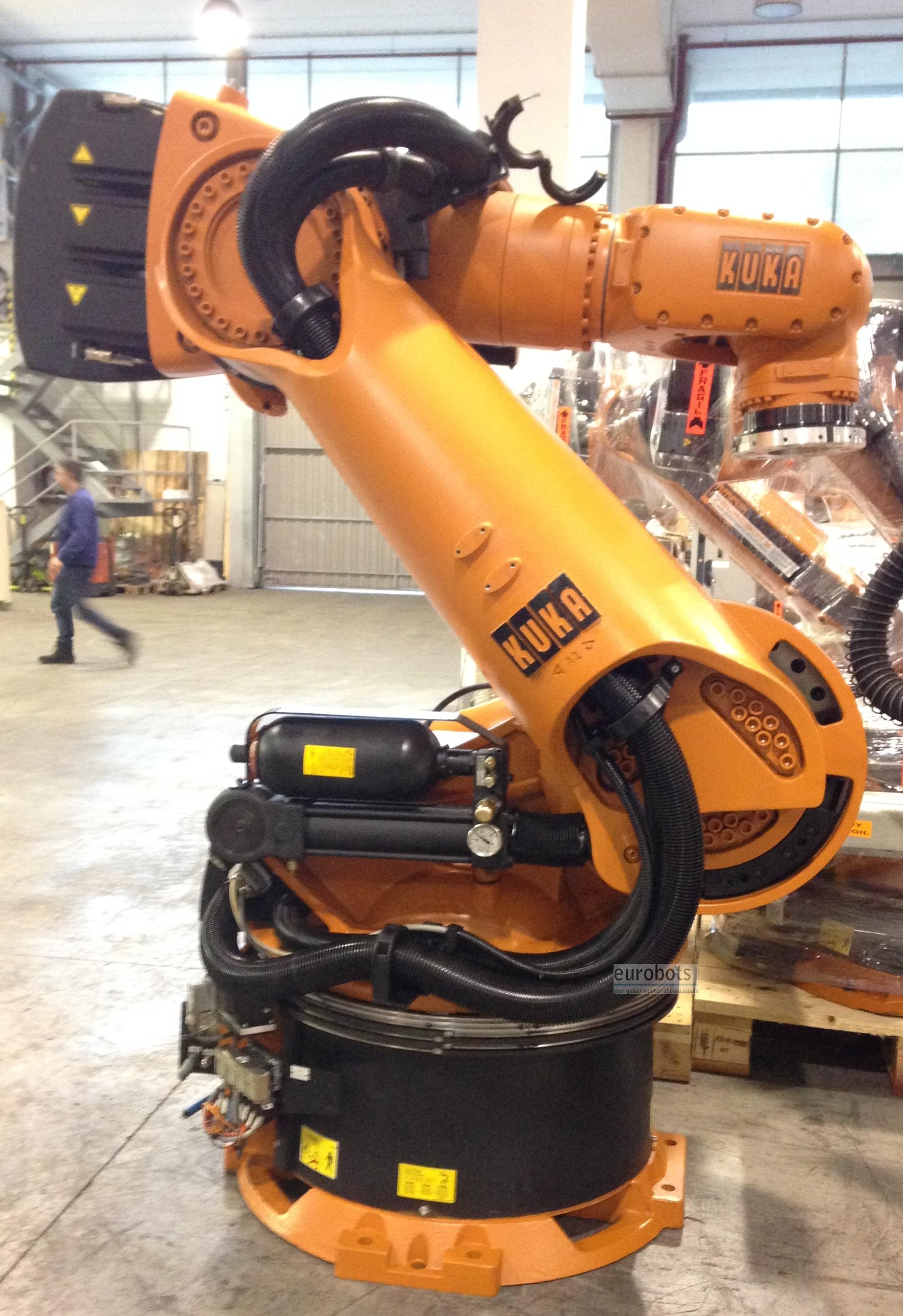

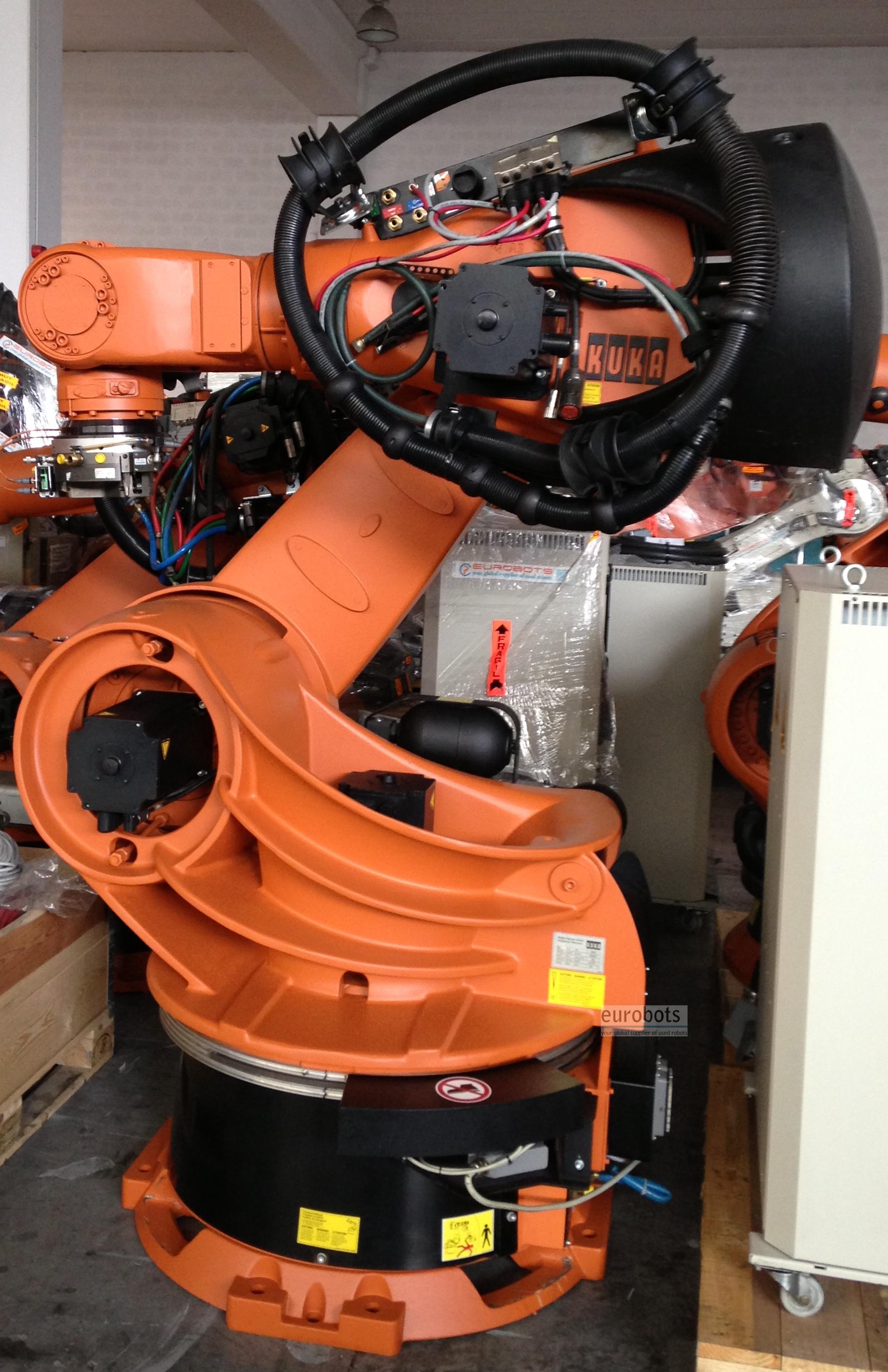

The KR 500 is a heavy duty payload industrial robot. The KR 500 is a six axis industrial robot for installation on the floor or on the ceiling. It is suitable for all point-to-point and continuous-path controlled tasks.

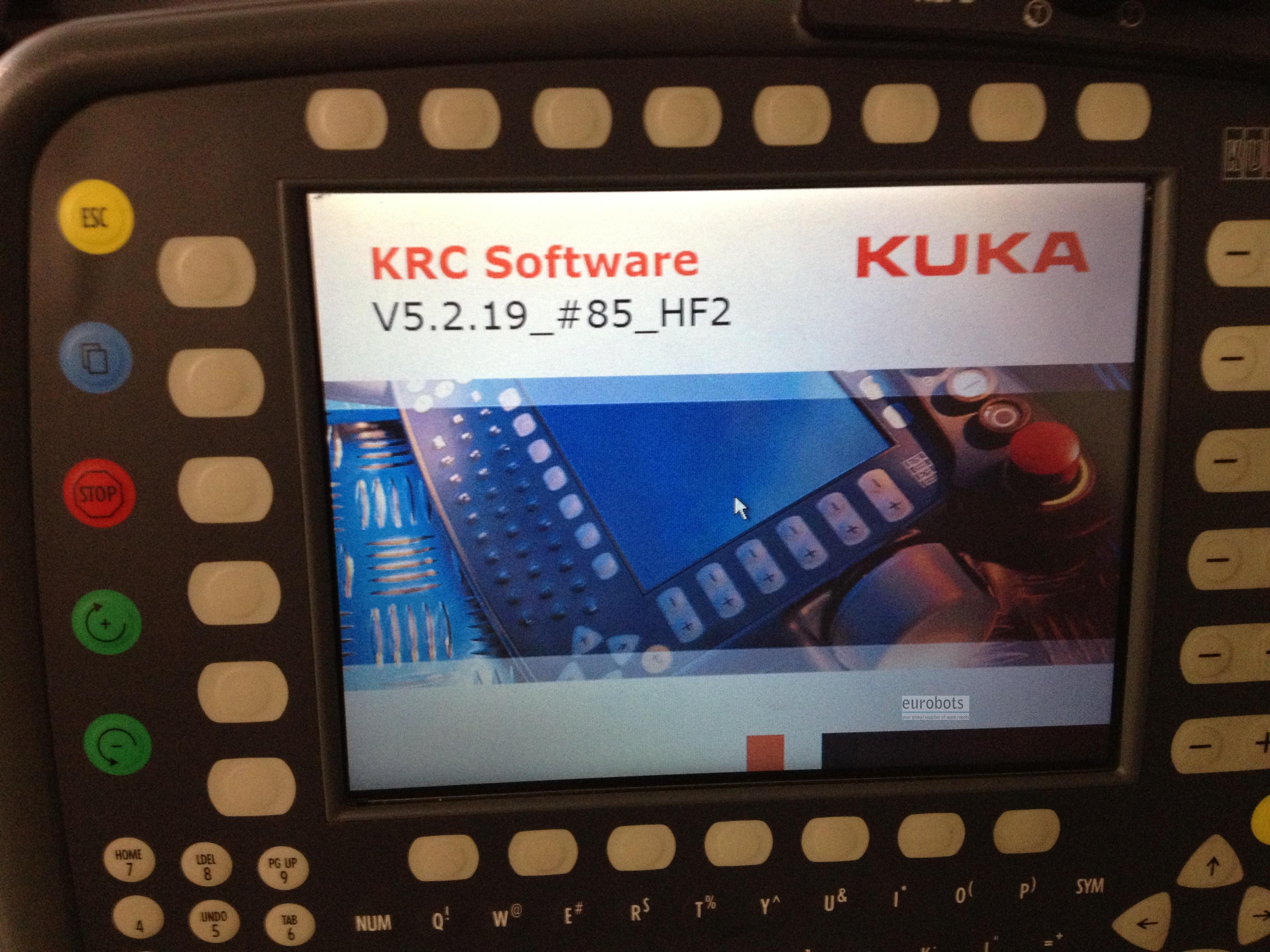

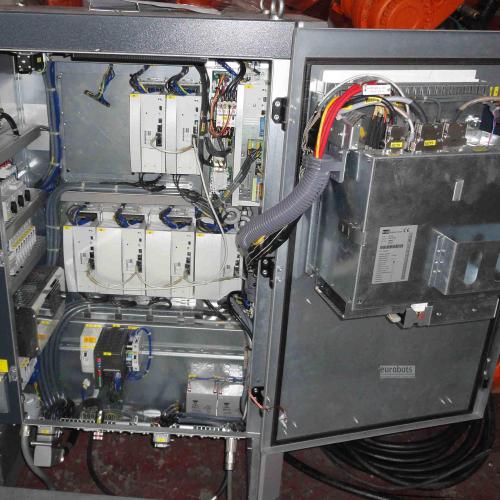

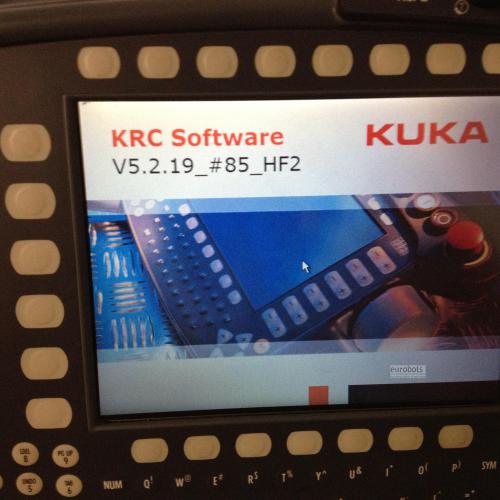

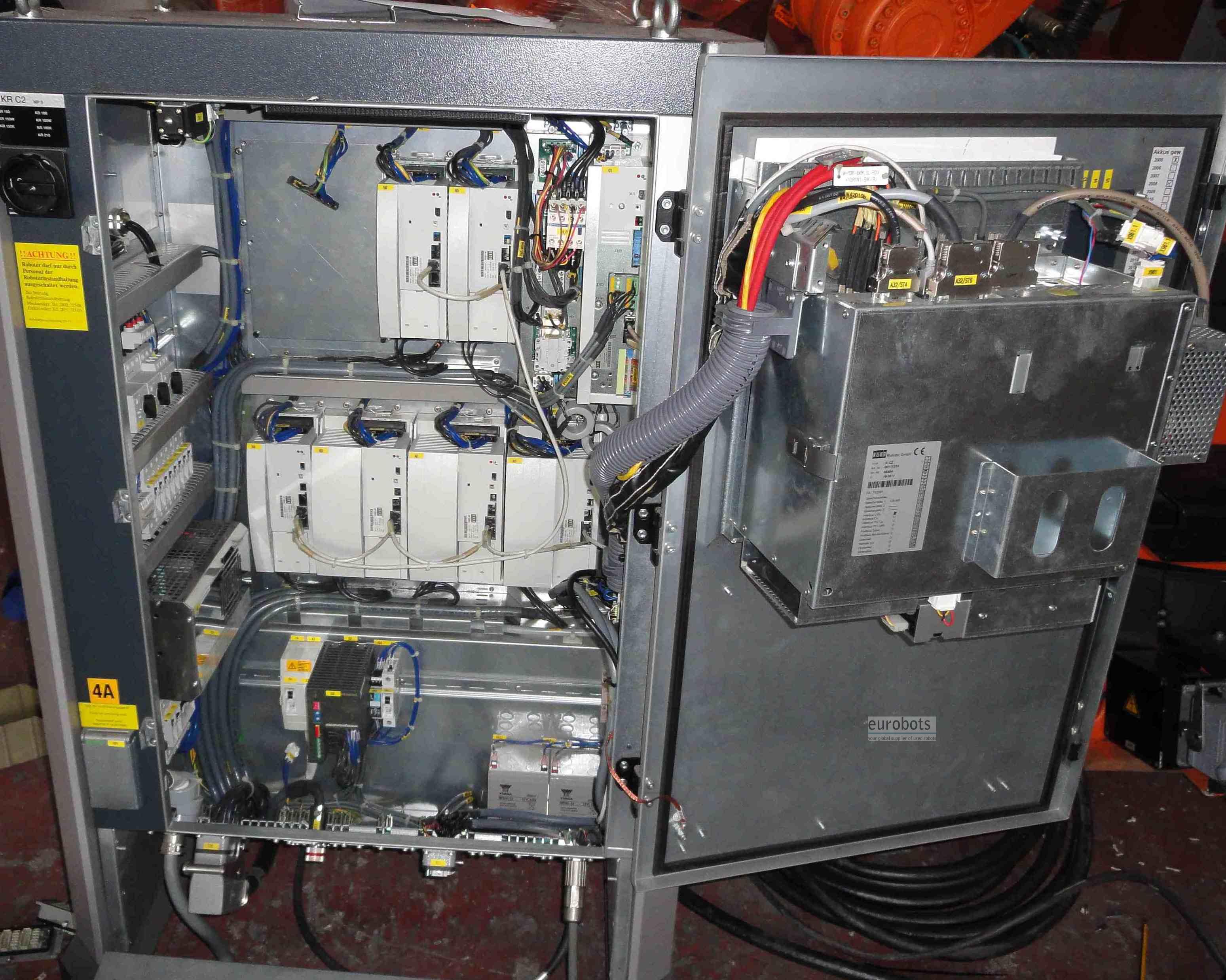

Equipped with the powerful KR C2 controller under WinXP platform, 5.2.9 software version. The KR C2 robot controller makes programming easier with its Microsoft Windows interface. It is expandable, can be integrated into networks via a bus, and contains ready-made software packages.

KR C2 features

* Open, network-capable PC technology
* 2 free slots for external axes
* DeviceNet and Ethernet slots for common bus systems (e.g. INTERBUS, PROFIBUS, DeviceNet) provided as standard
* Motion profile function for optimal interaction between the individual robot motors and their velocity
* Floppy disk and CD-ROM drives for data backup
* Facilities such as remote diagnosis via the Internet
* Simple operation and programming via KUKA Control Panel (KCP) with Windows user interface
* Compact control cabinet
* Ergonomic KUKA Control Panel (KCP)


Technical specifications

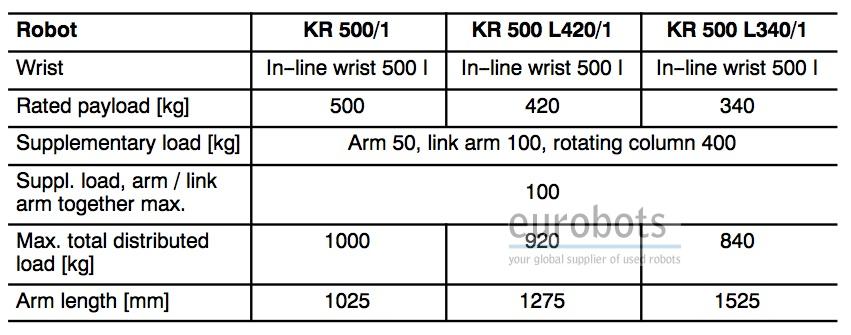

    Maximum Load of Robot: 500/420/340 Kg

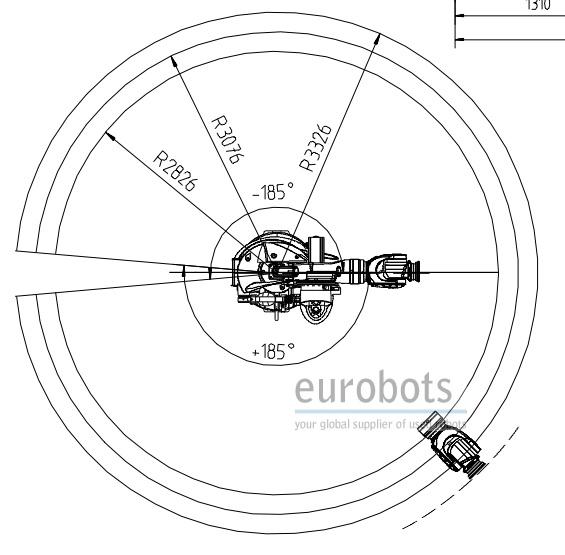

    Maximum Reach: 2826/3076/3326 mm
    Repeatability: 0.3 mm
    Controller: KRC2

Robot motion speed

    Axis 1: 69º/s
    Axis 2: 69º/s
    Axis 3: 69º/s
    Axis 4: 77º/s
    Axis 5: 76º/s
    Axis 6: 120º/s

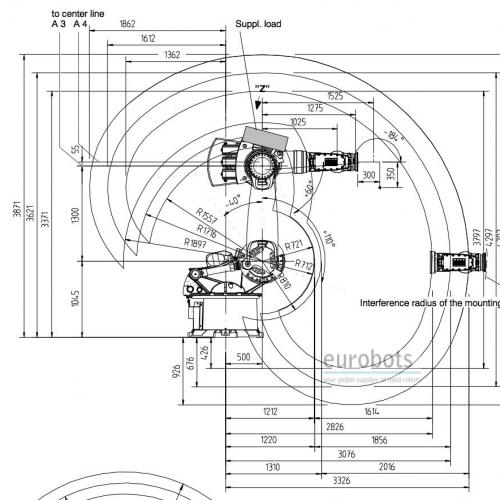

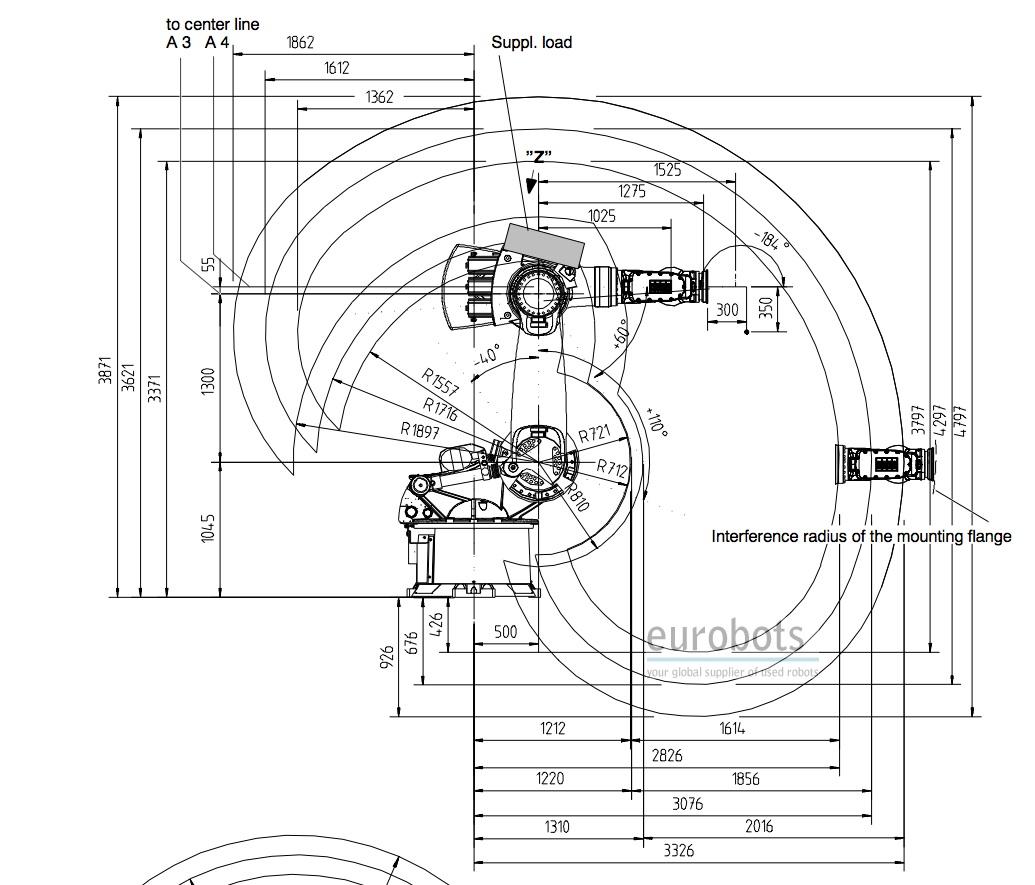

Range of motion software-limited

    Axis 1: ±185º
    Axis 2: +110º to -40º
    Axis 3: +60º to -184º
    Axis 4: ±350º
    Axis 5: ±118º
    Axis 6: ±350º


Pembuatan palet , Memuat dan membongkar suku cadang , Penanganan suku cadang
