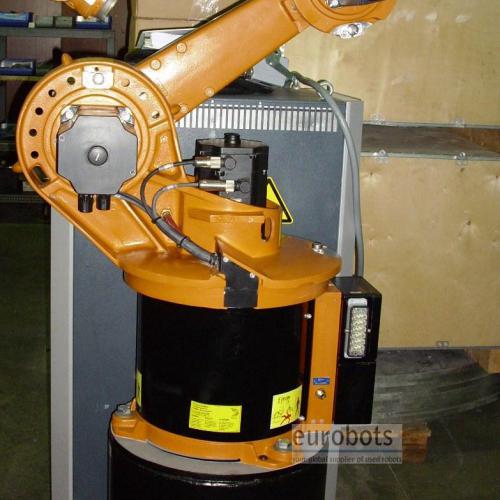

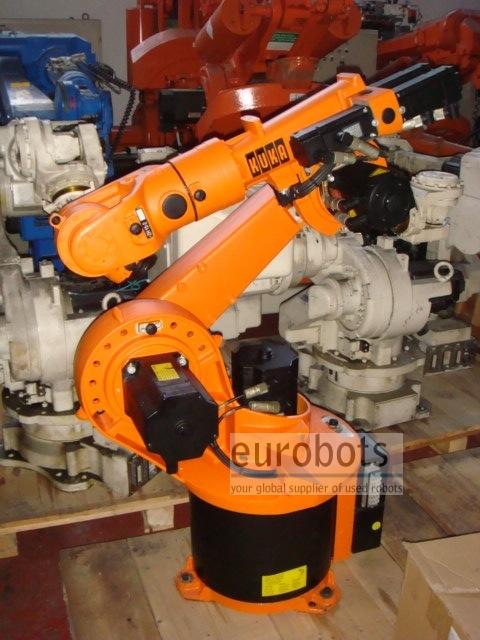

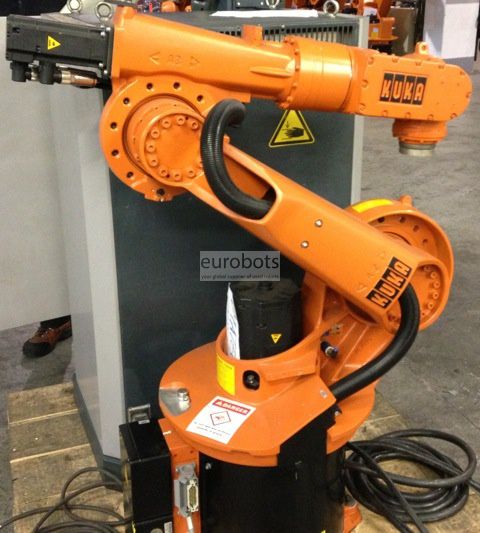

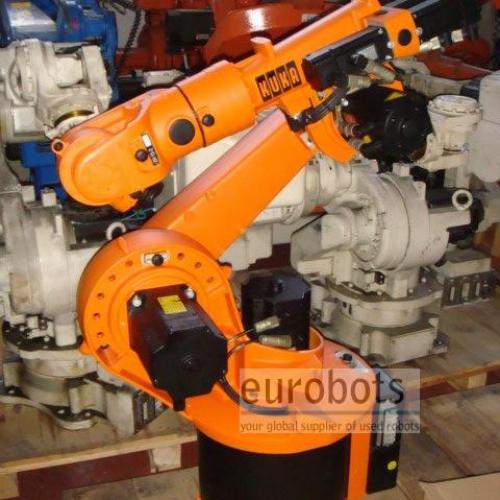

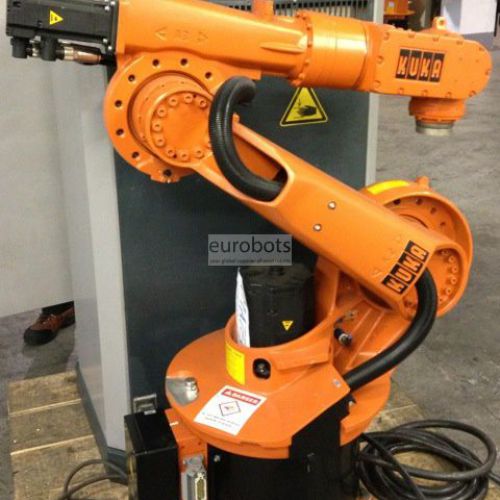

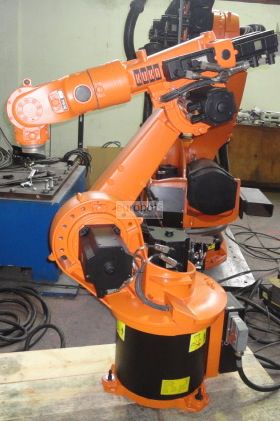

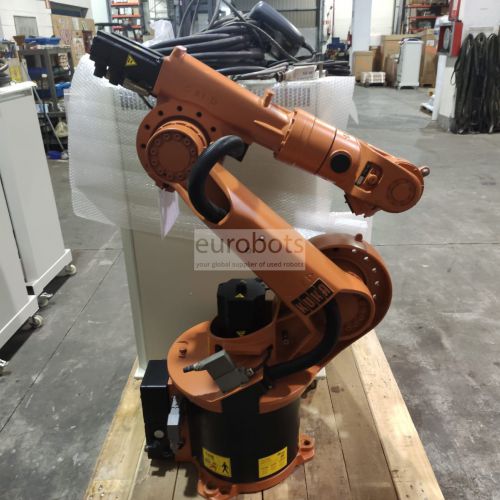

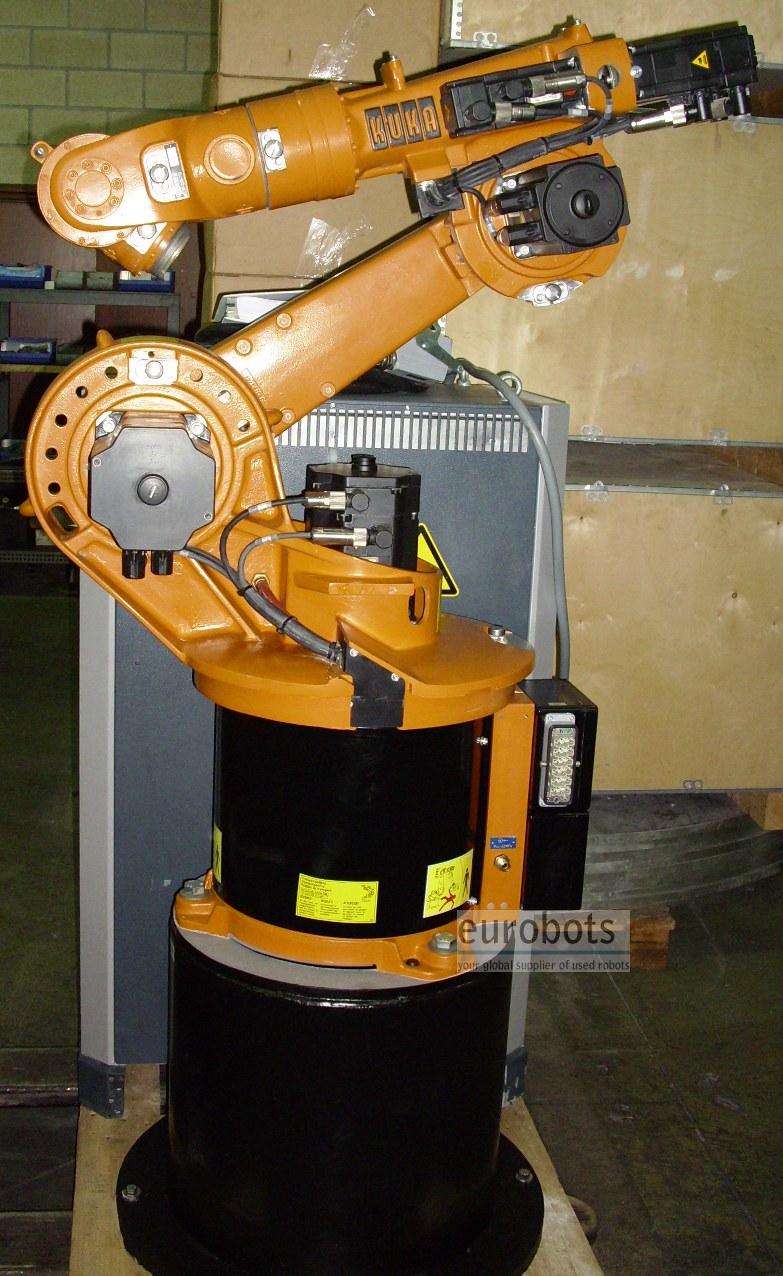

KUKA KR15 KR 15/2

Awaiting more stock

Due to its versatility and flexibility, the KR 15 is at home in most of the manufacturing industries. Short cycle times and high accuracy.
Mounting positions Floor, ceiling, wall.

This robot is equipped with the KRC2 controller, 4.1.4 software version.

The KR C2 robot controller makes programming easier with its Microsoft Windows interface. It is expandable, can be integrated into networks via a bus, and contains ready-made software packages.

KR C2 features:

* Open, network-capable PC technology
* 2 free slots for external axes
* DeviceNet and Ethernet slots for common bus systems (e.g. INTERBUS, PROFIBUS, DeviceNet) provided as standard
* Motion profile function for optimal interaction between the individual robot motors and their velocity
* Floppy disk and CD-ROM drives for data backup
* Facilities such as remote diagnosis via the Internet

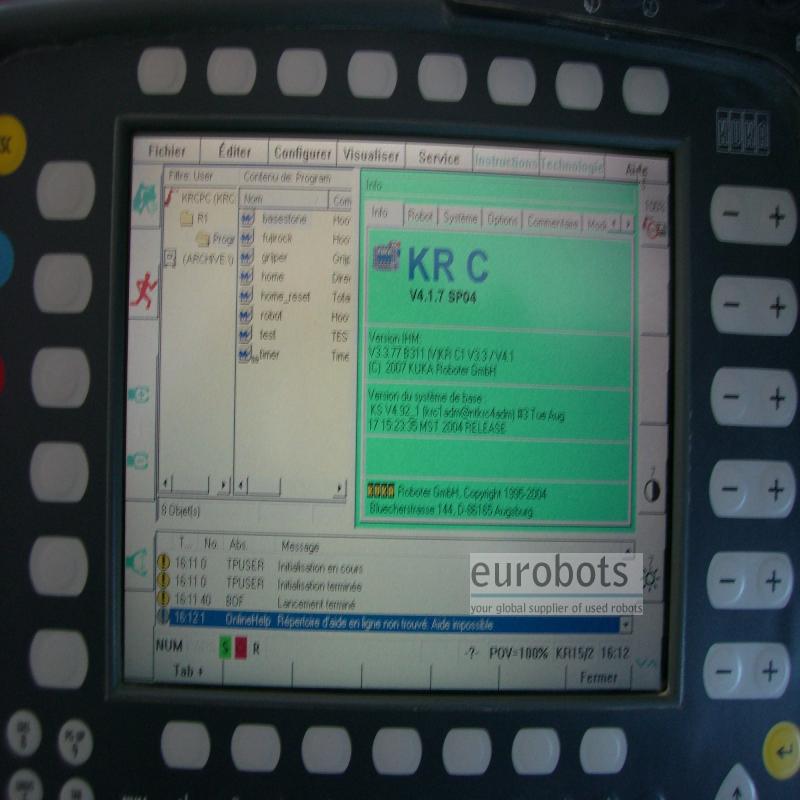

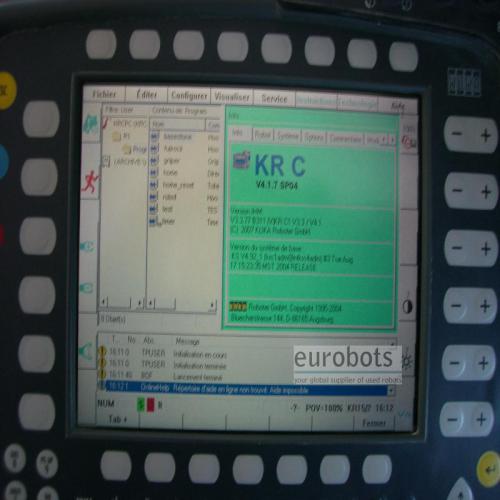

* Simple operation and programming via KUKA Control Panel (KCP) with Windows user interface

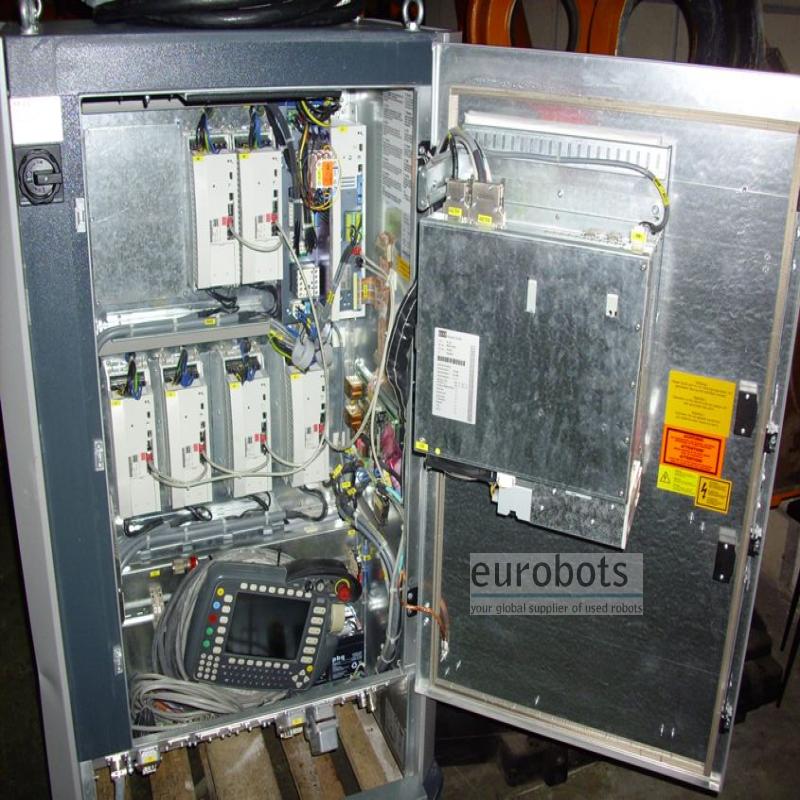

* Compact control cabinet
* Ergonomic KUKA Control Panel (KCP)

Robot Info:

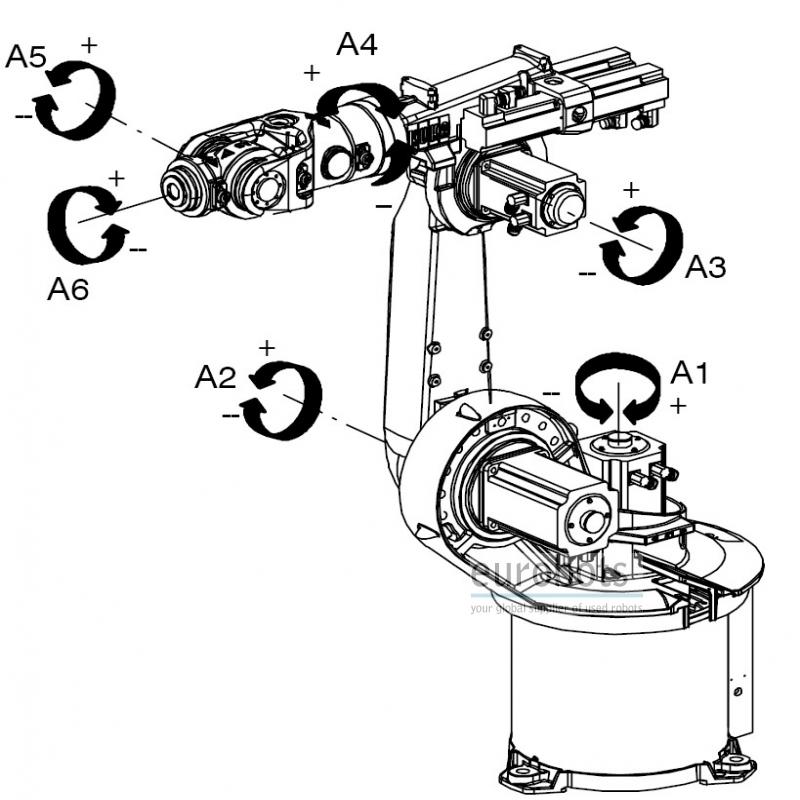

  • Number of axis: 6
  • Maximum Load of Robot: 15 Kg

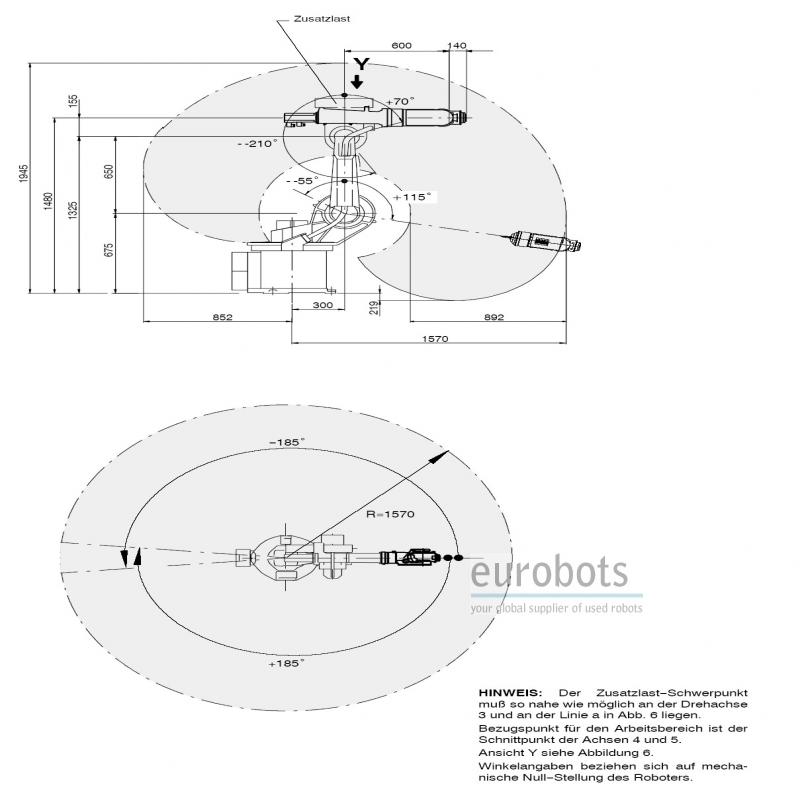

  • Maximum Reach: 1570 mm
  • Repeatability: +-0,1 mm
  • Controller: KR C2

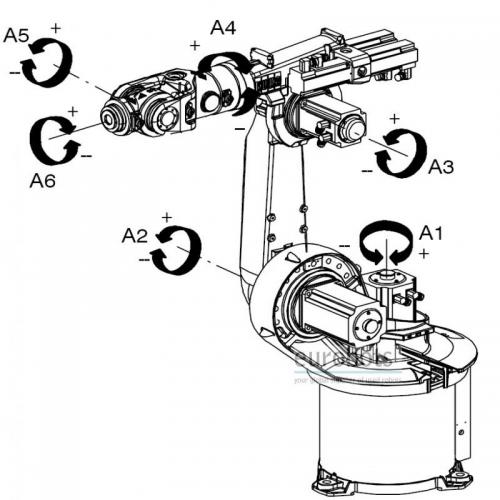

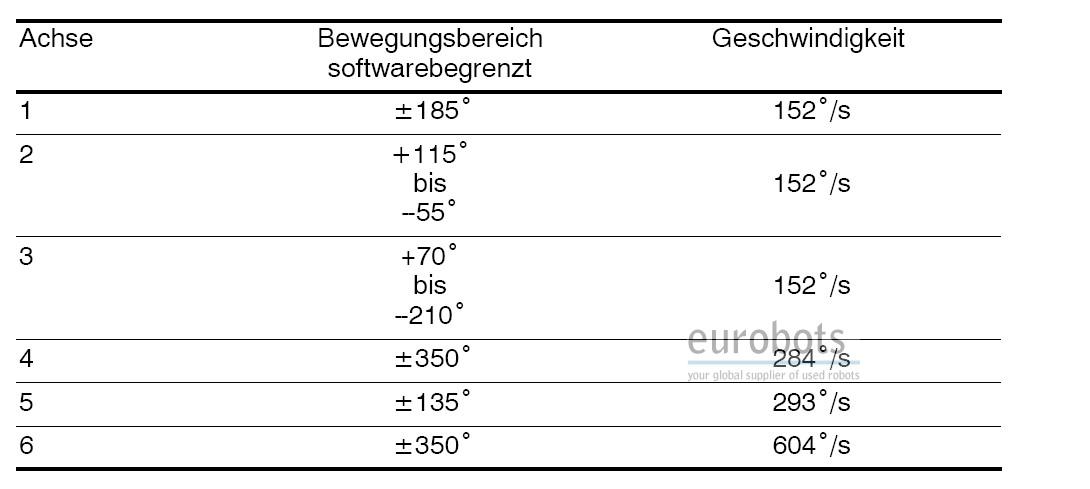

Robot Motion Speed:

  • Axe 1: 152º/s
  • Axe 2: 152º/s
  • Axe 3: 152º/s
  • Axe 4: 284º/s
  • Axe 5: 293º/s
  • Axe 6: 604º/s

Robot Applications:

  • Machining
  • Machine tending
  • Polishing, grinding and deburring
  • Coating and bonding
  • Handling
  • Measuring and testing
  • Assembly
  • Palletizing and order picking
  • Cutting
  • Welding

उपयोग

Pengelasan busur , Tekan merawat , Pembuatan palet , Lukisan , Memuat dan membongkar suku cadang , Mesin , Penanganan suku cadang , Poles , Pengukuran , Perakitan bagian , Laser cutting , Lem - Ikatan perekat
