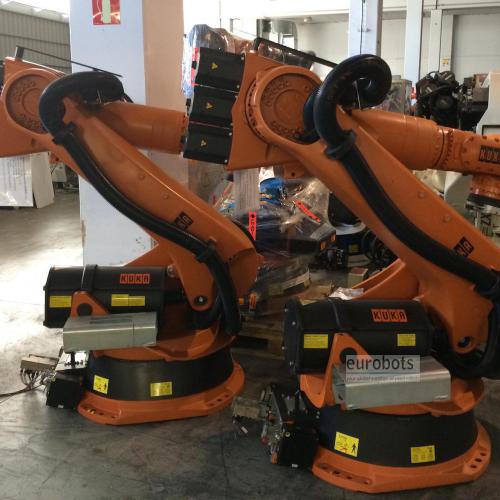

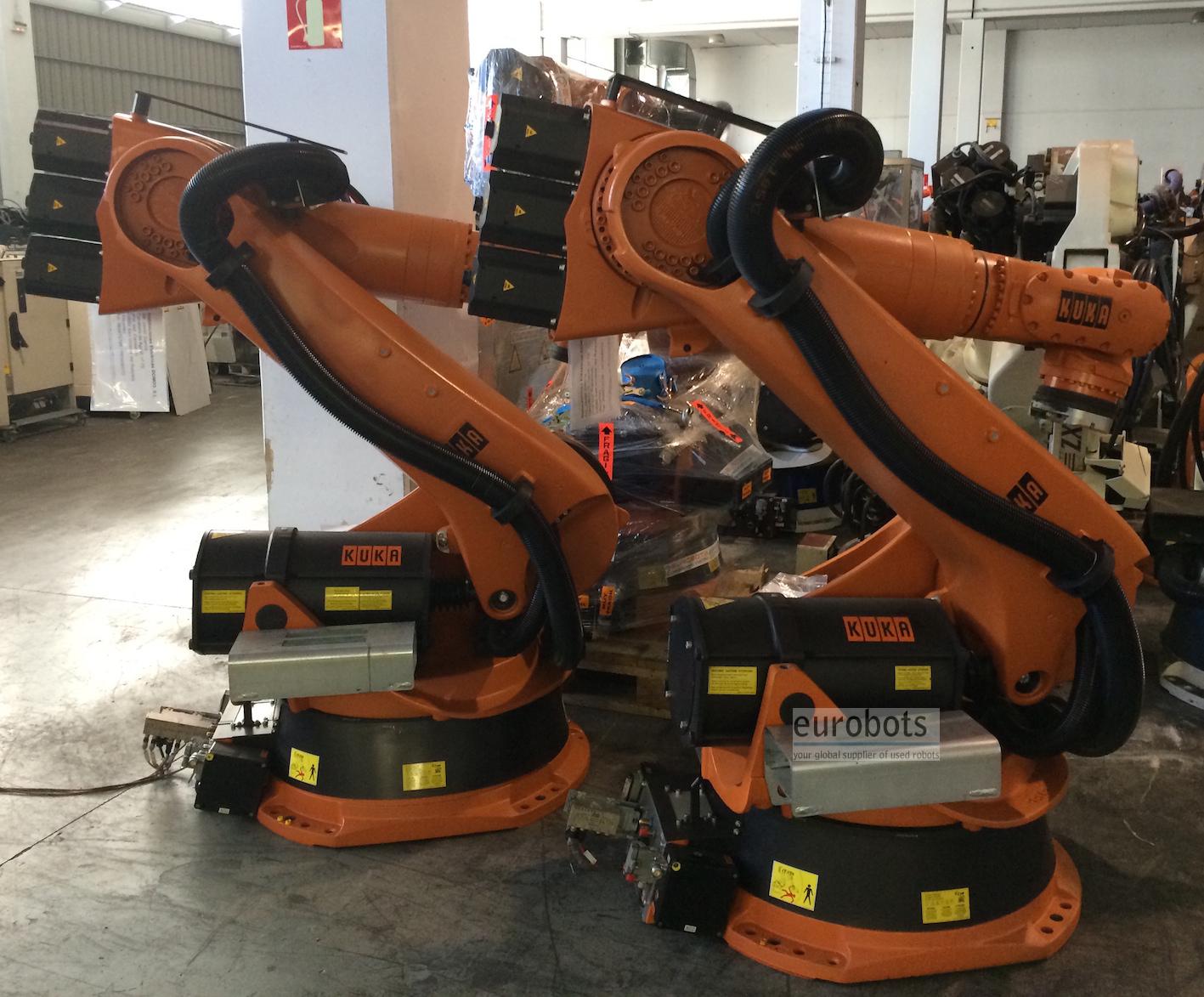

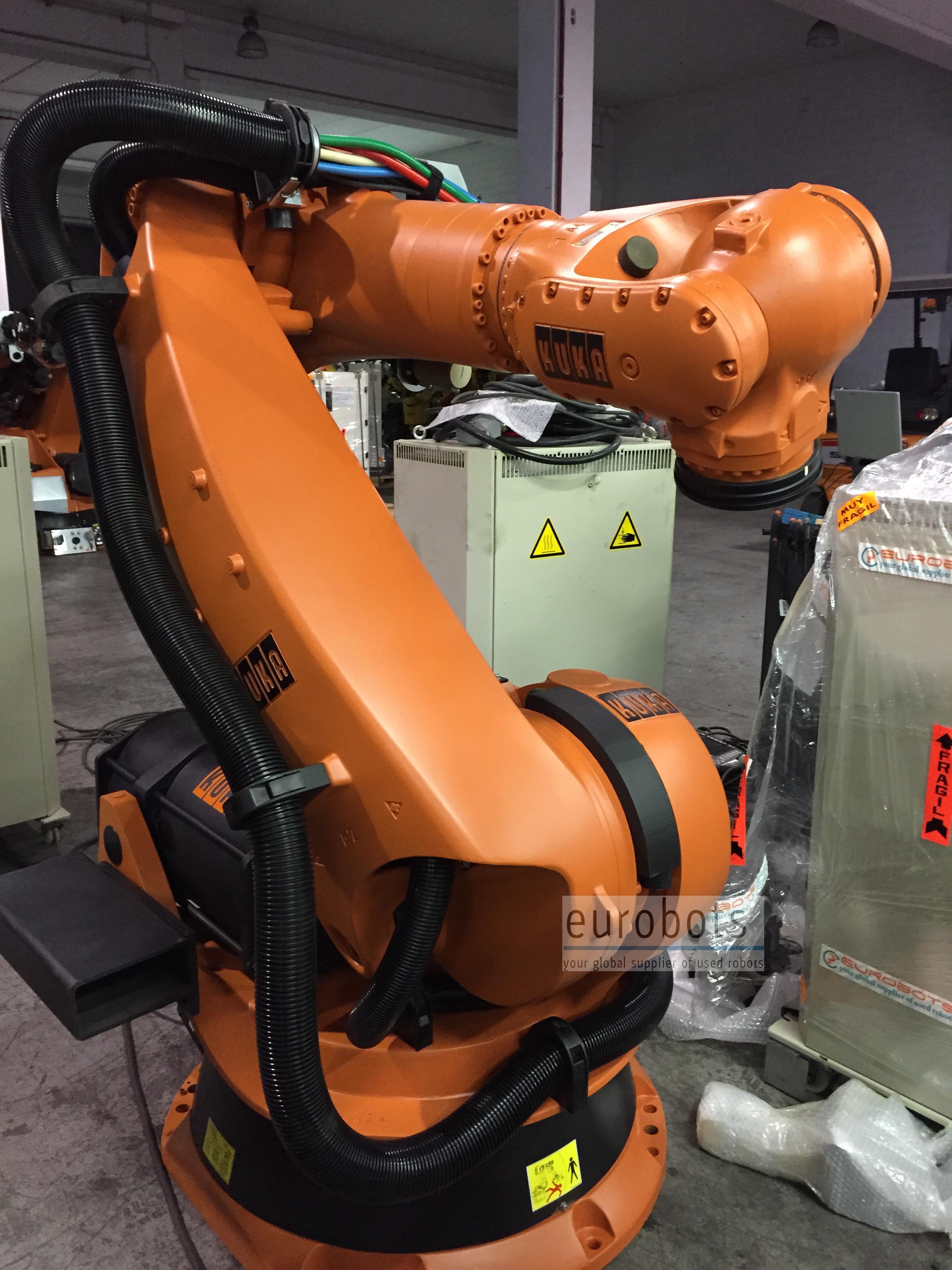

KUKA KR150-2

One of the lightest and fastest model of the S2000 Heavy payload 6 axis industrial robots. Available in three versions attending to the arm reach / payload: KR 150-2 (2700 mm / 150 kg) , KR 150L130-2 (2900 mm / 130 kg) , KR 150L110-2 (3100 mm / 110 kg).

Suitable for machining, spotwelding, measuring, handling and palletizing applications.

Equipped with the KRC2 controller available in two versions attending to the software version: 4.1.7 under Win95 or 5.2.9 under WinXP.

The KR C2 robot controller makes programming easier with its Microsoft Windows interface. It is expandable, can be integrated into networks via a bus, and contains ready-made software packages.

KR C2 features

* Open, network-capable PC technology
* 2 free slots for external axes
* DeviceNet and Ethernet slots for common bus systems (e.g. INTERBUS, PROFIBUS, DeviceNet) provided as standard
* Motion profile function for optimal interaction between the individual robot motors and their velocity
* Floppy disk and CD-ROM drives for data backup
* Facilities such as remote diagnosis via the Internet

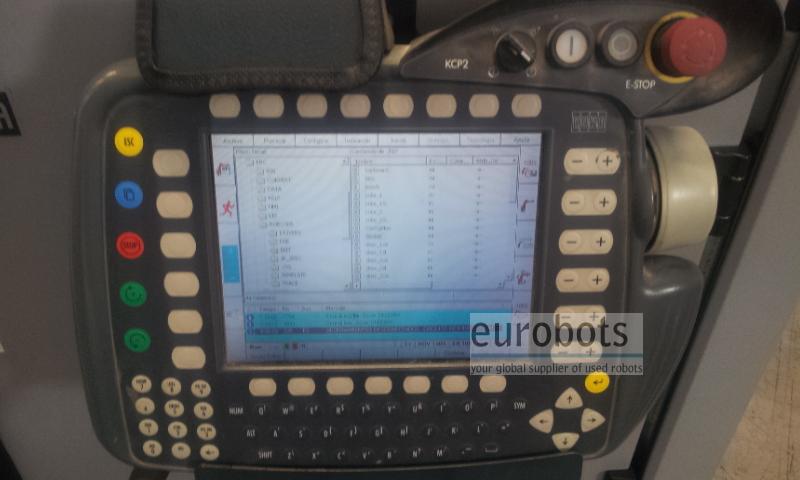

* Simple operation and programming via KUKA Control Panel (KCP) with Windows user interface

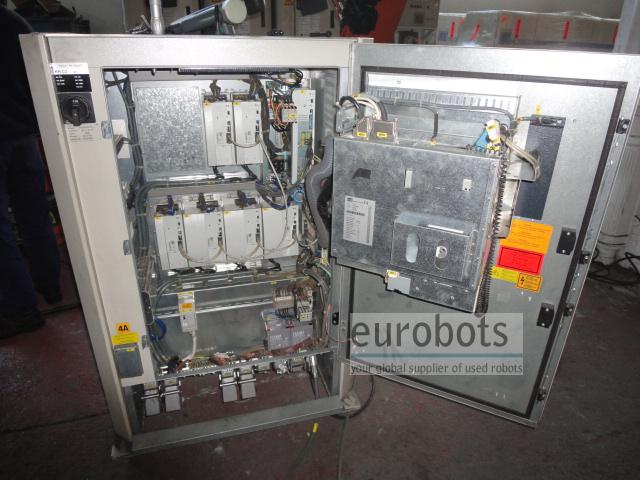

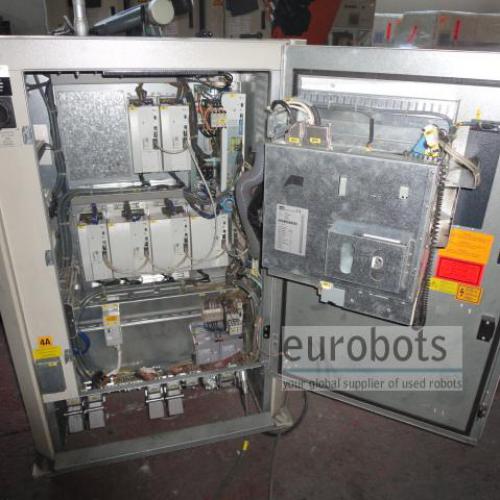

* Compact control cabinet

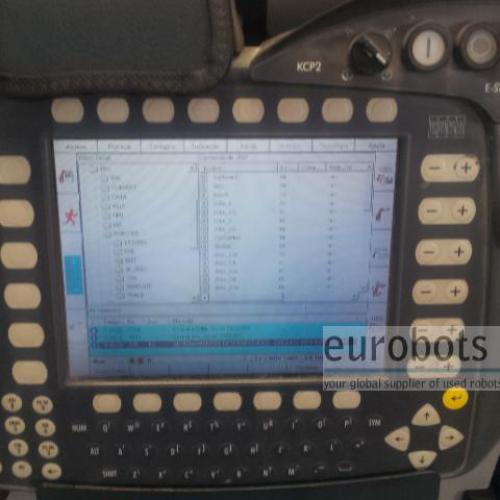

* Ergonomic KUKA Control Panel (KCP)

Robot Info

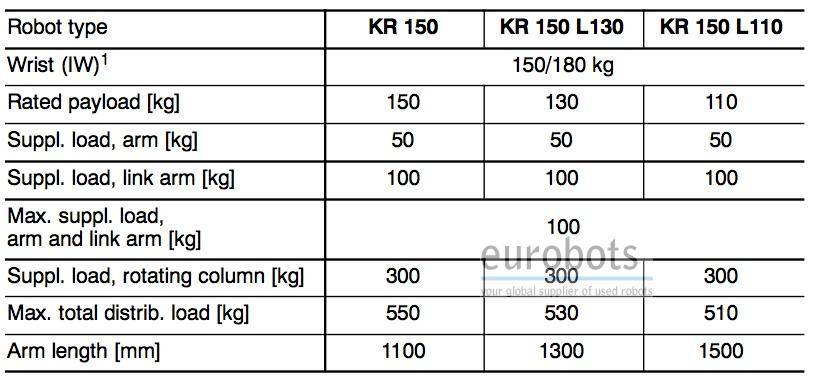

Maximum Load of Robot: 150/130/110 Kg

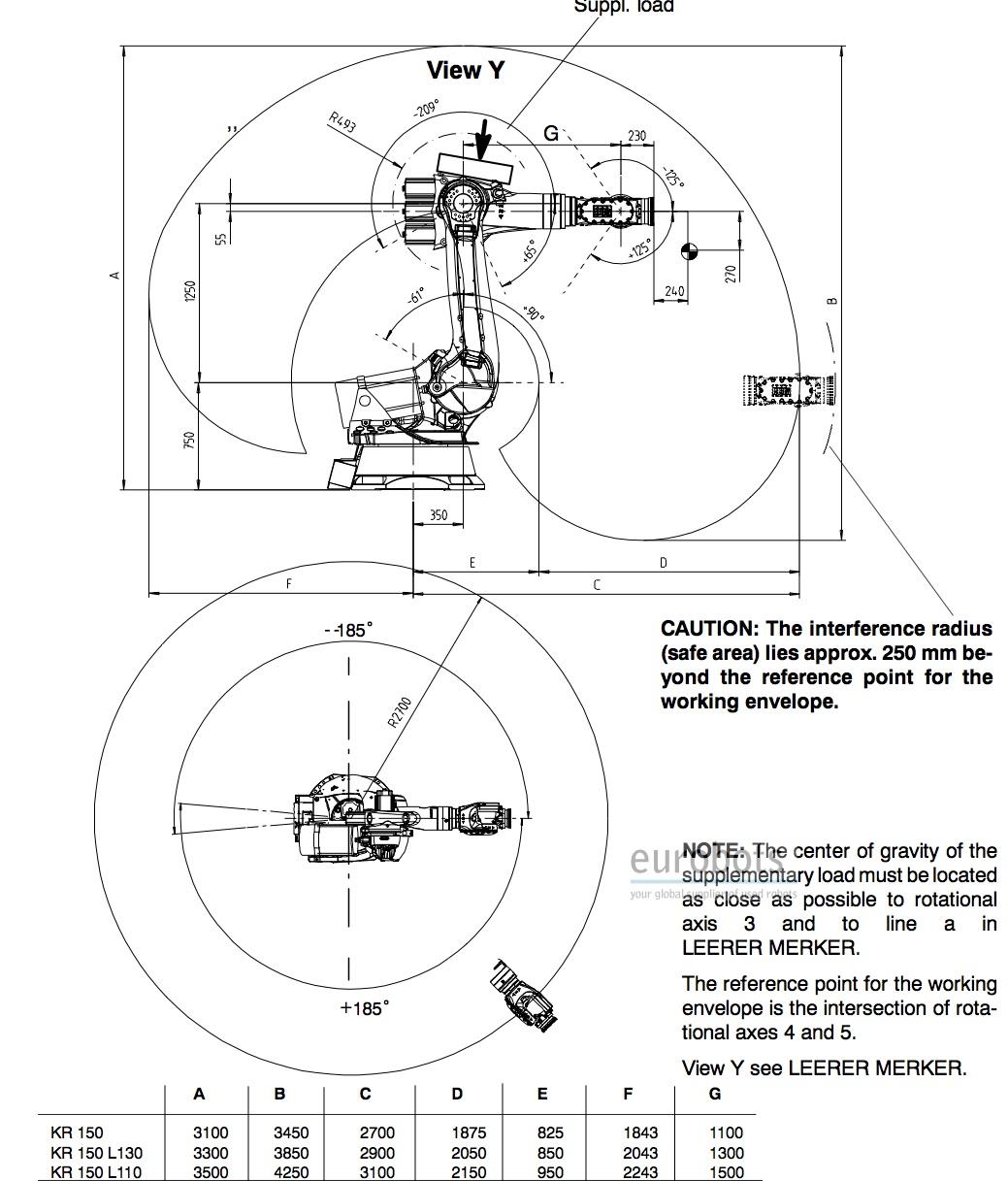

Maximum Reach: 2700/2900/3100 mm
Repeatability: 0.15
Controller: KR C2

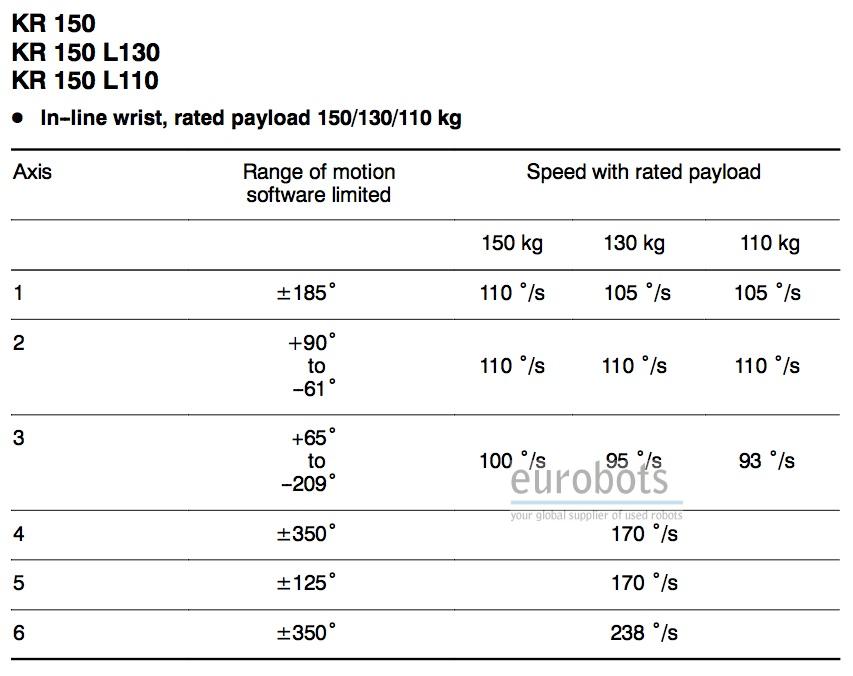

Axis Speed in º/s for the models: KR 150-2 / KR 150 L130-2 / KR 150 L110-2

Axis 1: 110º/s 105º/s 105º/s
Axis 2: 110º/s 110º/s 110º/s
Axis 3: 100º/s 95º/s 93º/s
Axis 4: 170º/s (all 3 models)
Axis 5: 170º/s (all 3 models)
Axis 6: 238º/s (all 3 models)

Range of motion (Axis 1 to 6)

Axis 1: +- 185º
Axis 2: +90 to -61º
Axis 3: +65º to -209º
Axis 4: +-350º
Axis 5: +-125º
Axis 6: +-350


Pengelasan spot , Tekan merawat , Pembuatan palet , Memuat dan membongkar suku cadang , Mesin , Penanganan suku cadang , Pengukuran , Laser cutting , Laser welding Nd-Yag , Lem - Ikatan perekat , Stud welding , Pemotongan plasma
