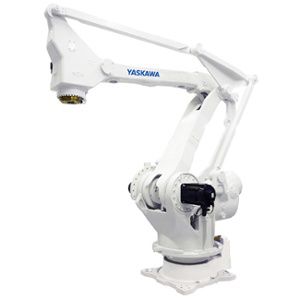

MPL300 II 4 axes very versatile, adaptable and high speed suitable for palletizing processes, The T axis presents a high acceptable moment of inertia; Irregular loads are operated safely without affecting speed or performance. its improved arm reach allows high loads of up to102 inches on standard pallets.
Minimum integration costs.
Greater reliability and energy efficiency.
Improvement of maintenance capacity, reduction of average repair time (MTTR).
Functional Safety Unit (FSU) Performance Level 3 (PLd).
Multiple robot control of up to 8 robots / 72 axes with synchronized movement between devices.
Advanced robot movement control (ARM) provides high productivity and trajectory planning.
Small and lightweight pendant with Windows® CE programming color touch screen with multiple window display possibilities.
Number of axis: 4
Maximum horizontal reach: 3,159 mm
Maximum vertical reach: 3,024 mm
Repeatability: ±0.5 mm
Controller: DX200, MLX200
Axis L: +90°/-45°
Axis U: +15.5°/-120°
Axis T: ±360°
Axis L: 100°/s
Axis U: 110°/s
Axis T: 195°/s
