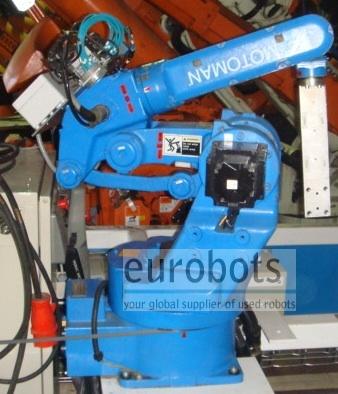

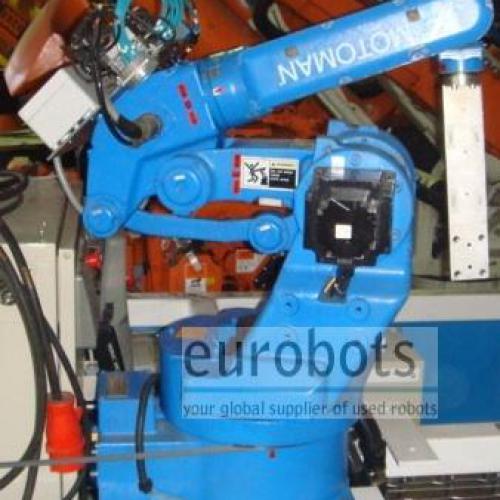

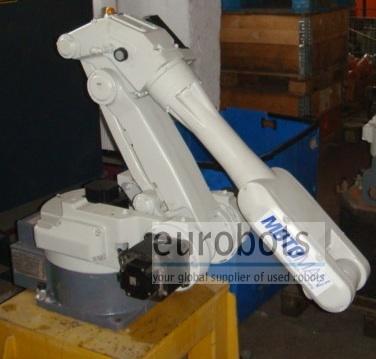

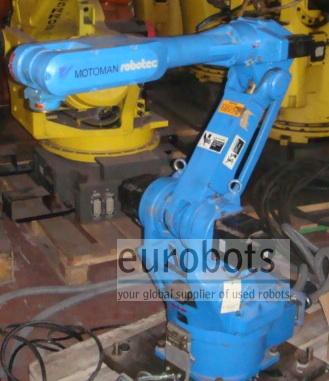

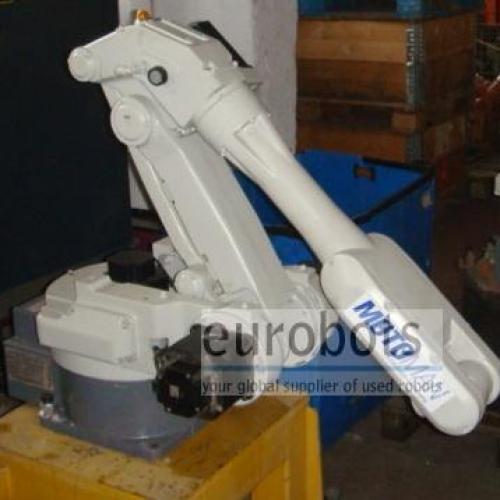

Motoman SK6

Year 1999. Equipped with the evolution of the MRC controller, the MRCII.
Capable of handling a wide variety of factory automation applications, the Motoman SK6 can also be used as an arc welder. With six axes of motion, and durable cycloidal wrist design that is fully functional with MRC/XRC Controller. Having a max payload capacity of 6kg, the Motoman SK6 is a versatile assembly robot for any factory floor.



Robot Info:

  • Maximum Load of Robot: 6Kg.

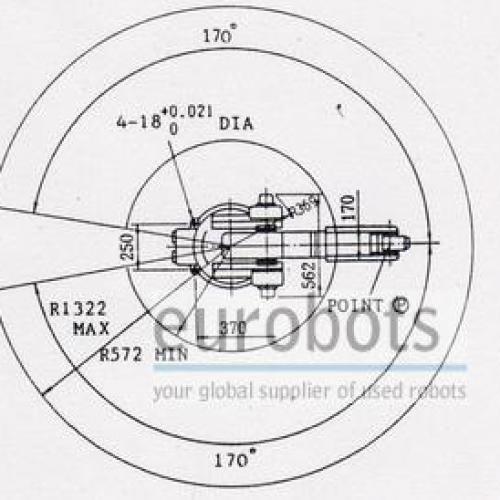

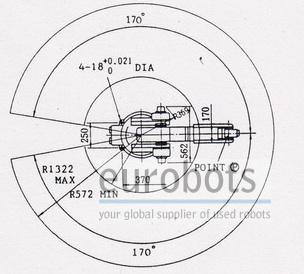

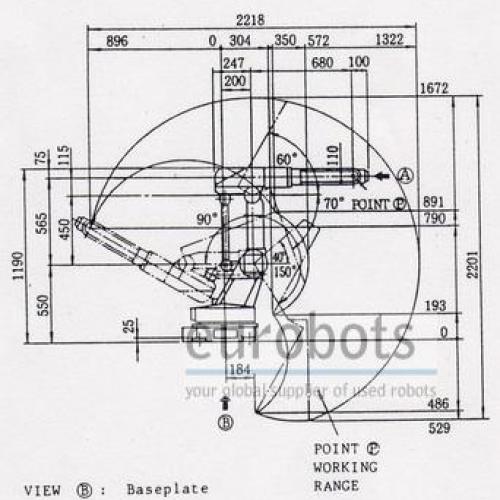

  • Maximum Reach: 1322 mm.
  • Repeatability: 0,1 mm.

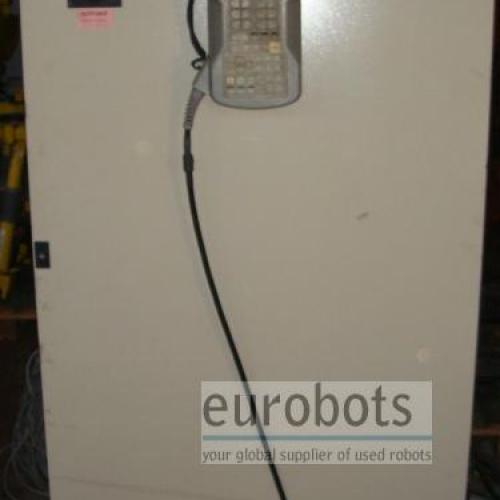

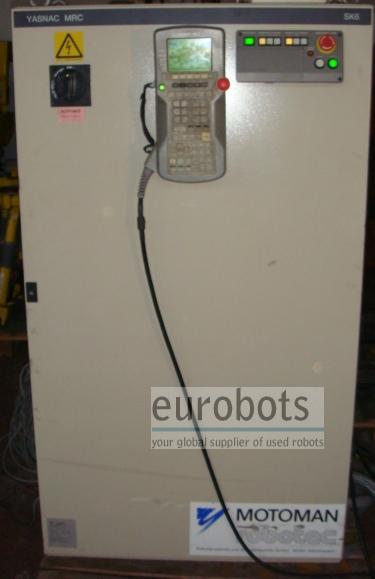

  • Controller:MRC II

Robot Motion Speed:

  • Axe 1: 110º/seg
  • Axe 2: 90º/seg
  • Axe 3: 110º/seg
  • Axe 4: 240º/seg
  • Axe 5: 180º/seg
  • Axe 6: 400º/seg

Robot Applications:

  • Arc welding
  • Machining
  • Machine tending
  • Polishing, grinding and deburring
  • Coating and bonding
  • Handling
  • Measuring and testing
  • Assembly
  • Palletizing and order picking
  • Cutting

उपयोग

Pengelasan busur , Lukisan , Memuat dan membongkar suku cadang , Penanganan suku cadang
