Motoman SPX100-250 Palletiser

Awaiting more stock

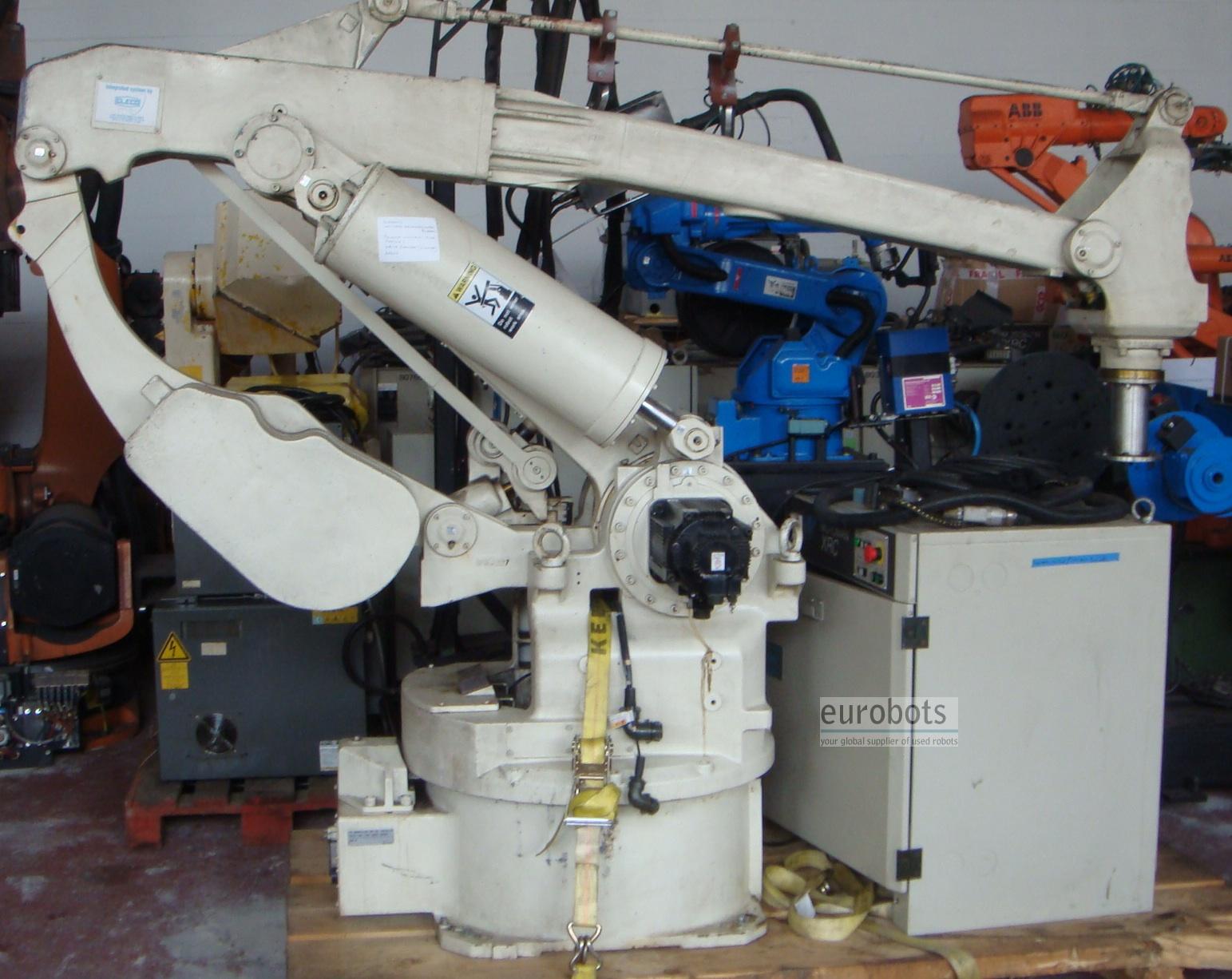

Special design 4 axis palletiser robot year 2000. 250 kg payload and 3291 mm arm reach.

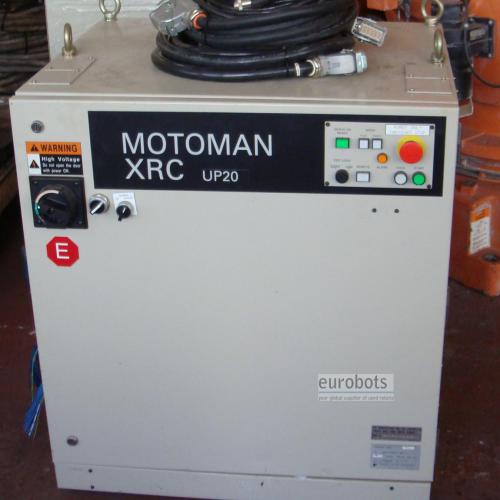

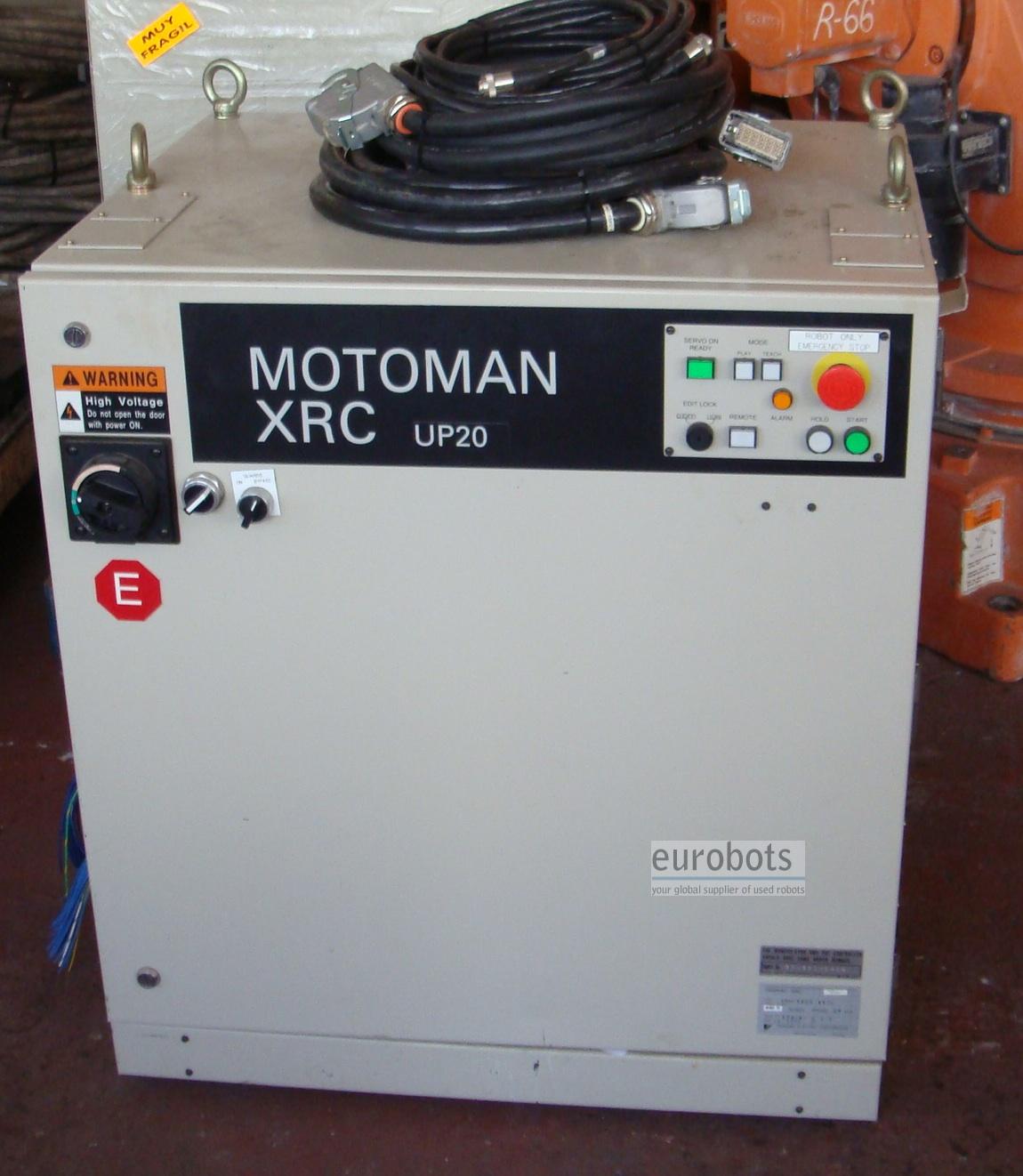

This robot is equipped with the versatile and powerful XRC controller.


MOTOMAN's advanced MOTOMAN XRC robot controller offers flexibility, high performance, open communication and award winning ergonomic design. Its design is compact but its functionality is not. The XRC system even offers the possibility of controlling up to 27 axes from one single CPU. (e.g. three robots including external axes)
Multi Functional The XRC can "multi-task" simultaneously performing up to six tasks. The XRC has many advanced software functions including Advanced Robot Motion (ARM) Control providing high-performance path accuracy, and integrated

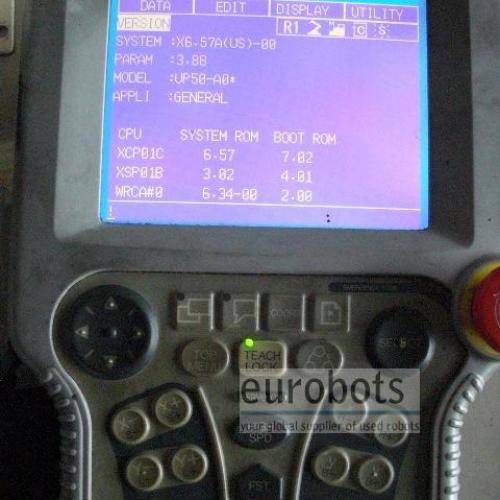

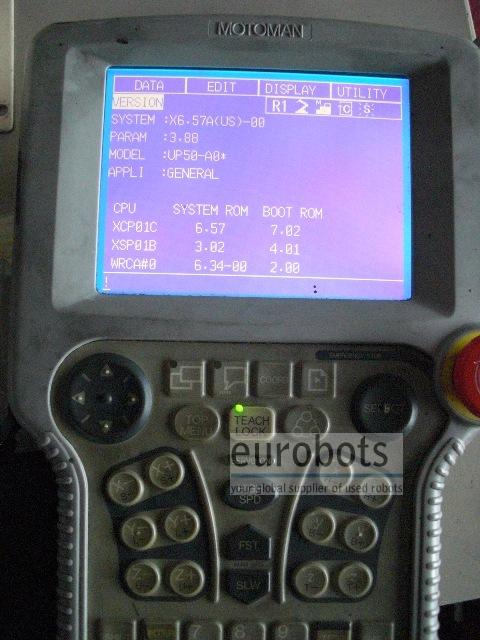

Collision Detection. User Friendly The XRC's award winning, lightweight, ergonomically designed programming pendant simplifies programming

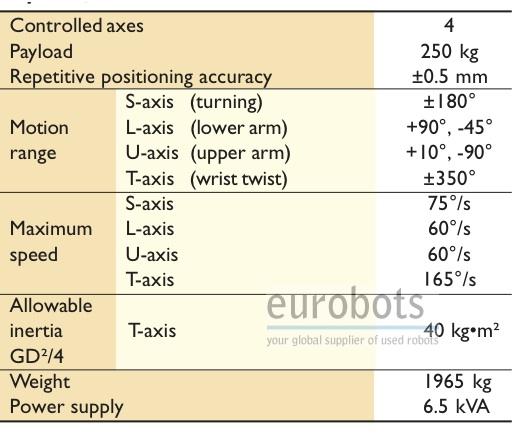

Robot Info:

  • Maximum Load of Robot: 250 Kg

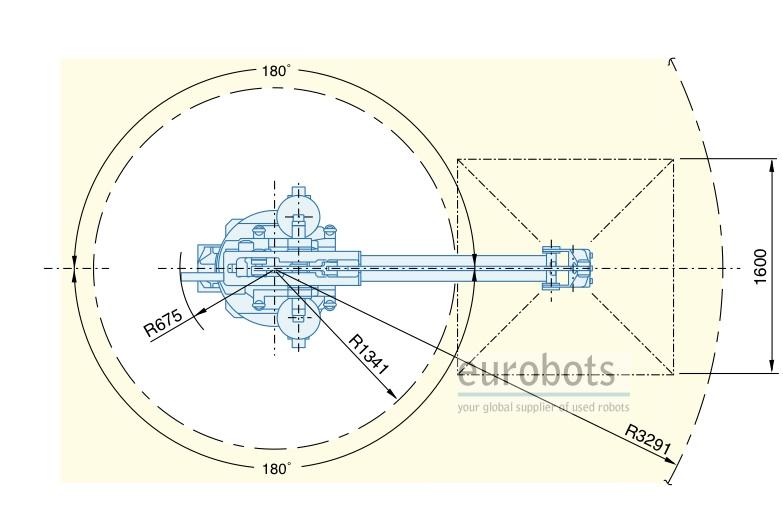

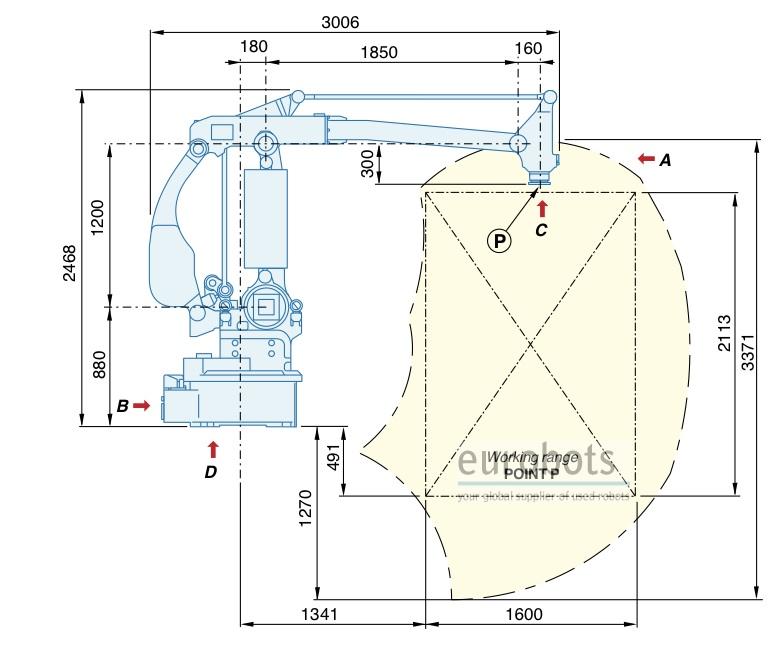

  • Maximum Reach: 3291 mm.
  • Repeatability: 0,5 mm.
  • Controller: XRC

Robot Motion Speed:

  • Axe 1: 75º/s
  • Axe 2: 60º/s
  • Axe 3: 60º/s
  • Axe 4: 165º/s

उपयोग

Pembuatan palet , Penanganan suku cadang
