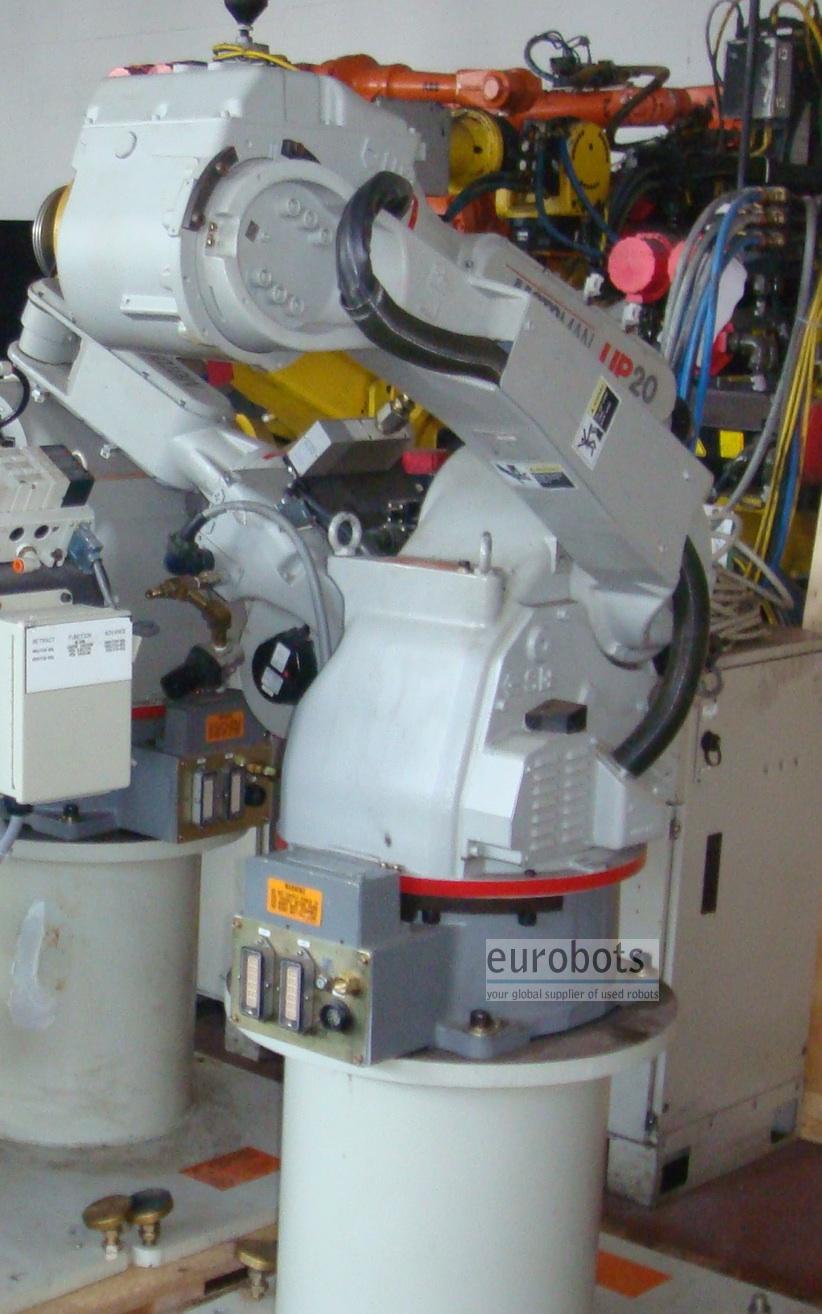

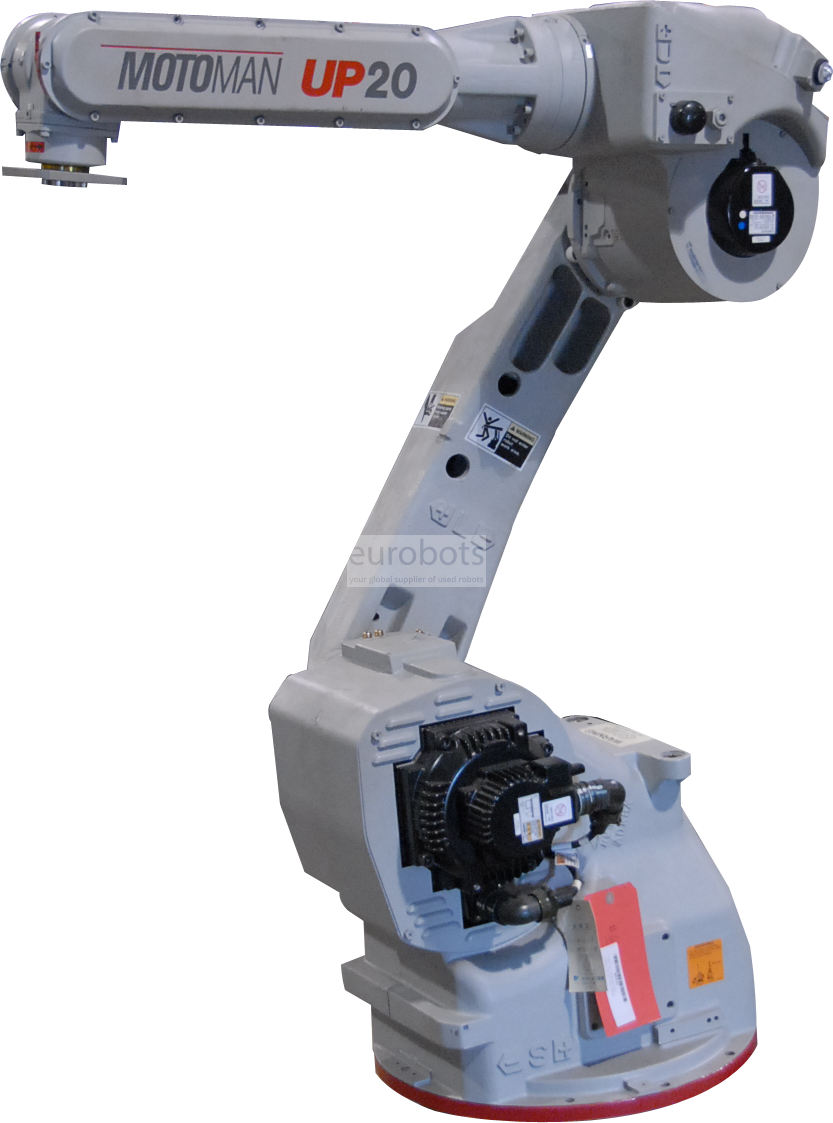

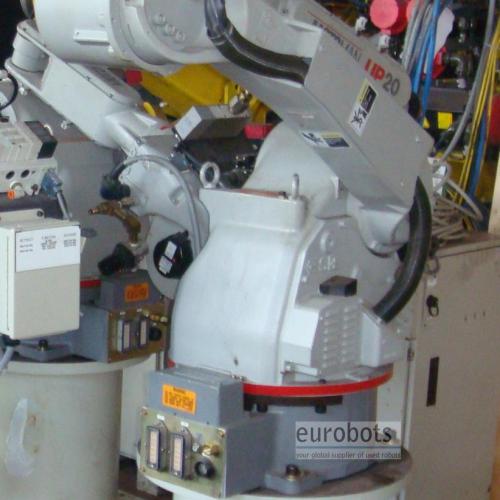

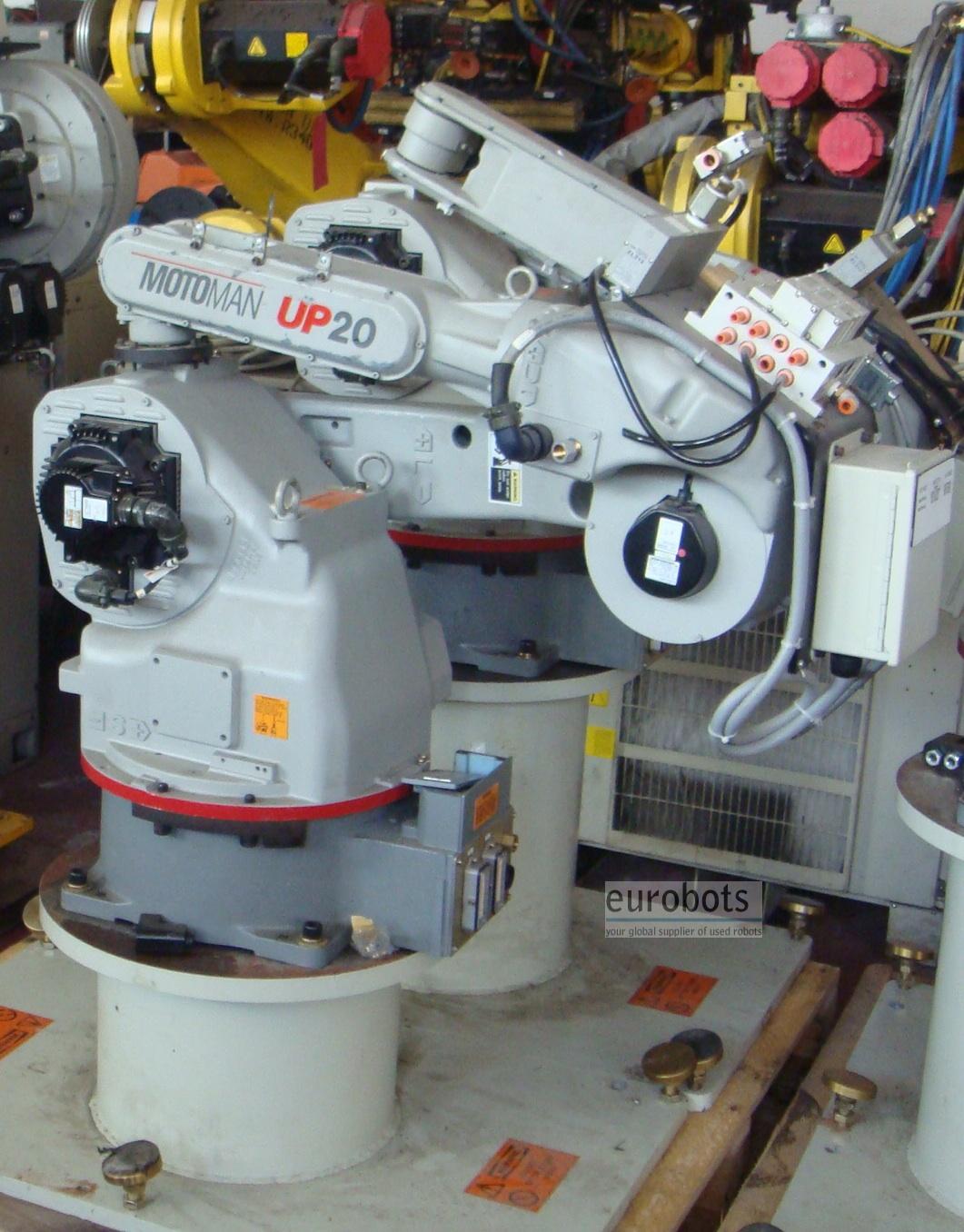

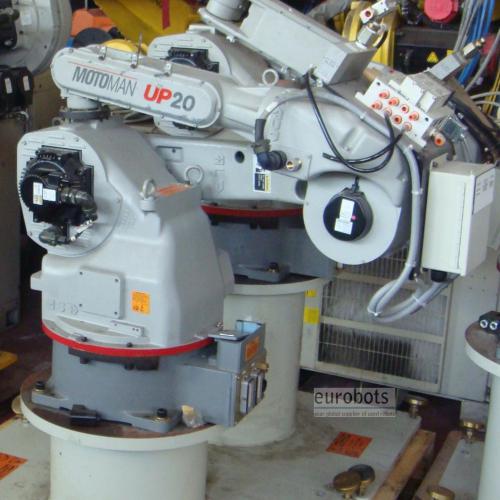

Motoman UP20

Awaiting more stock

Year 2001.This dynamic, high-speed robot is compact and requires minimal installation space. It offers superior performance in handling, machine tending, packaging, cutting and dispensing applications.

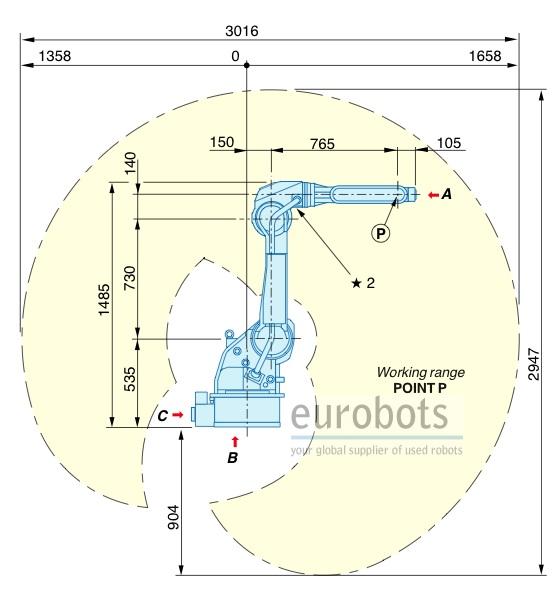

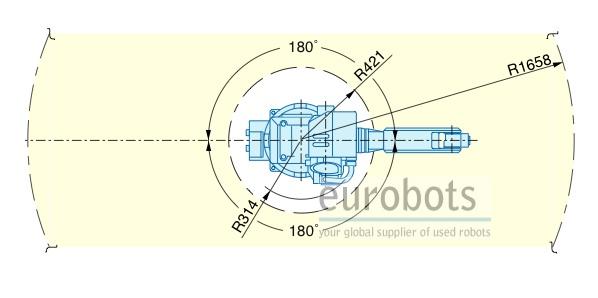

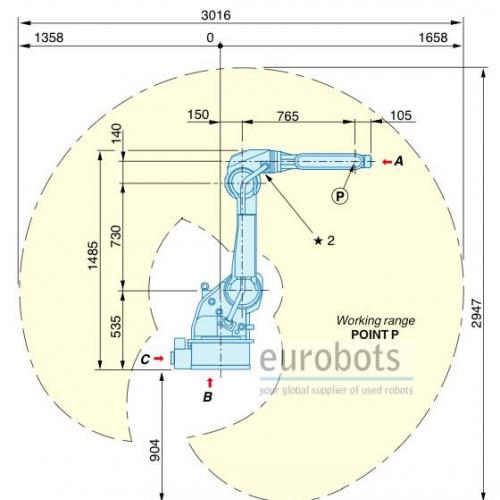

The UP20 features a 1658 mm reach and offers the widest work envelope in its class. The slim base, waist, and arm allow the robot to be placed close to workpiece holding fixtures to improve part accessibility.

The compact design and built-in collision avoidance features with multiple robot control allow up to four robots to be used together to maximize productivity while reducing overall floorspace requirements.

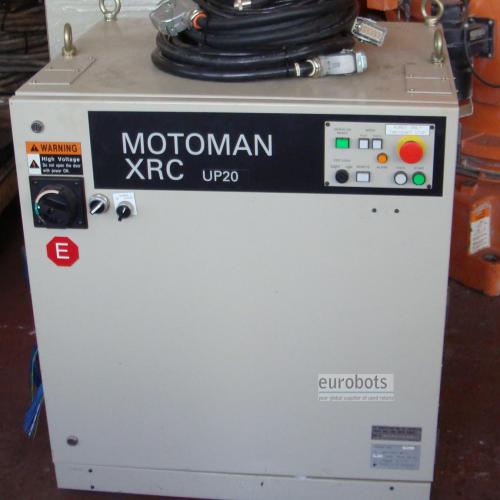

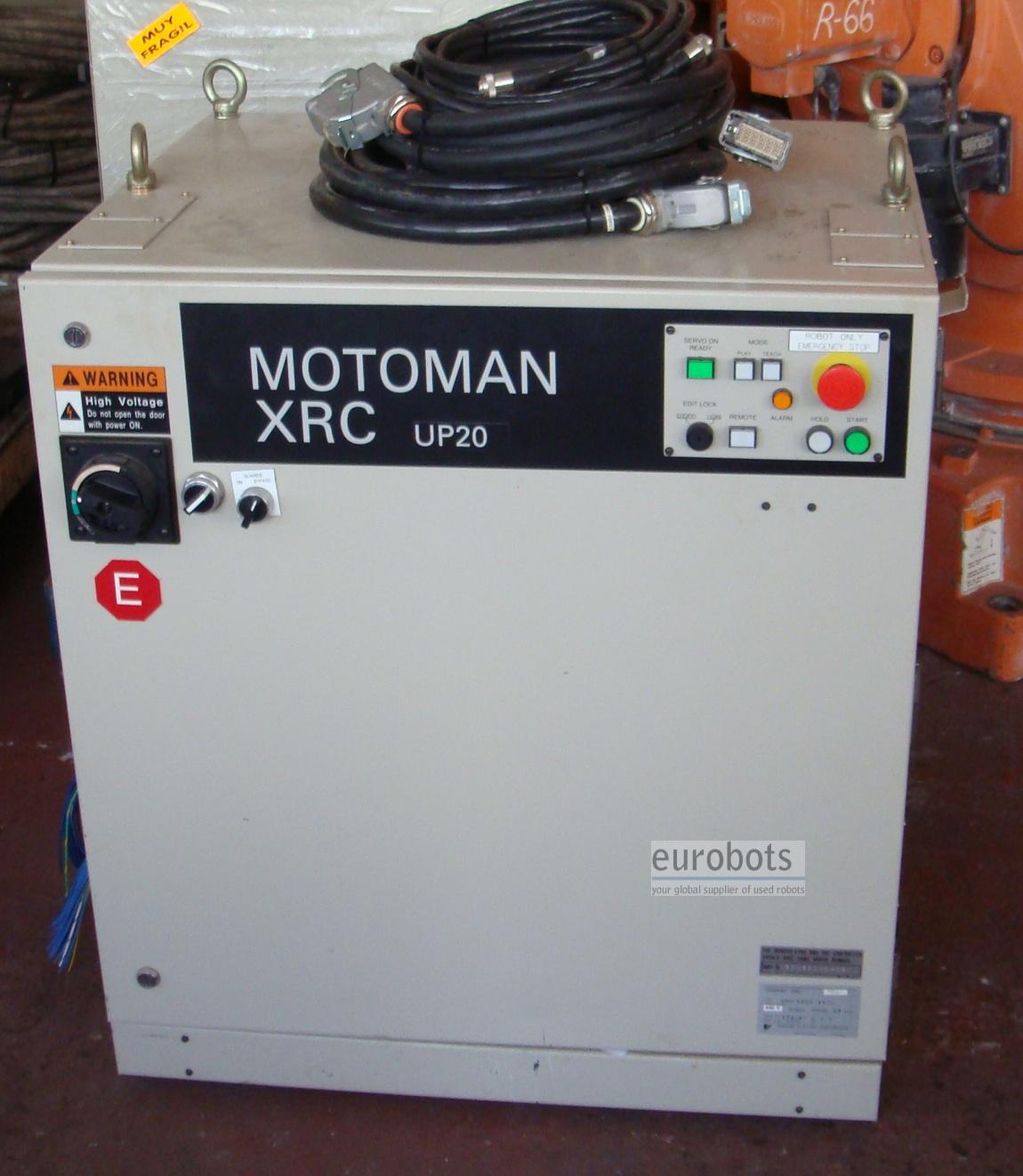

This robot is equipped with the modern XRC controller.


MOTOMAN's advanced MOTOMAN XRC robot controller offers flexibility, high performance, open communication and award winning ergonomic design.
Its design is compact but its functionality is not. The XRC system even offers the possibility of controlling up to 27 axes from one single CPU.
(e.g. three robots including external axes)

Multi Functional The XRC can "multi-task" simultaneously performing up to six
tasks. The XRC has many advanced software functions including Advanced Robot
Motion (ARM) Control providing high-performance path accuracy, and integrated

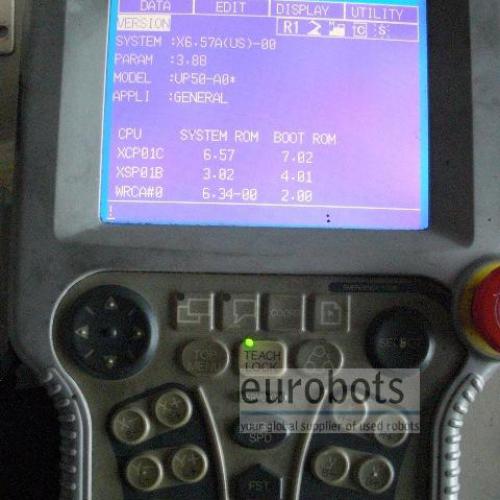

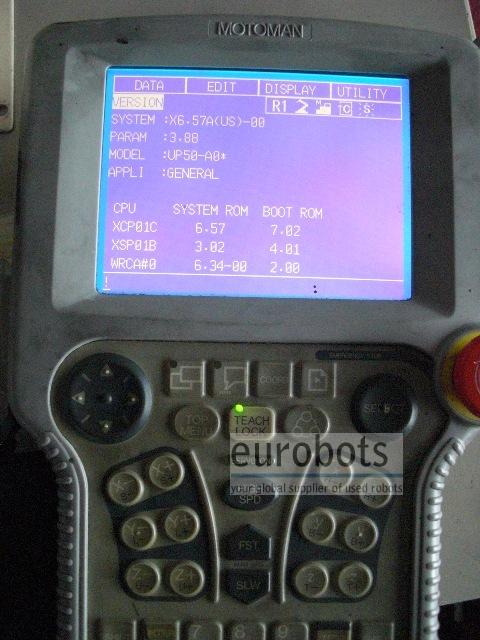

Collision Detection. User Friendly The XRC's award winning, lightweight, ergonomically designed programming pendant simplifies programming

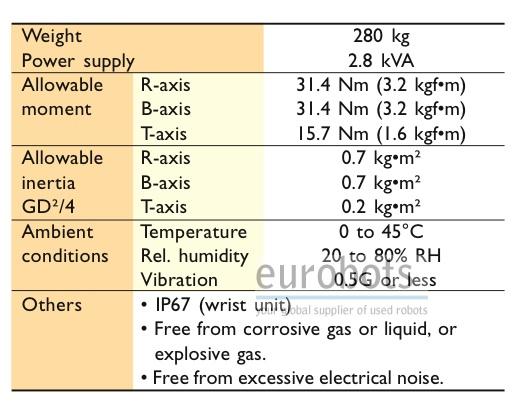

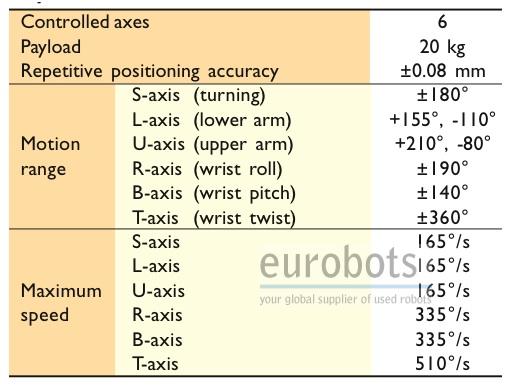

Robot Info:

  • Maximum Load of Robot: 20Kg.
  • Maximum Reach: 1658 mm.
  • Repeatability: 0,06 mm.
  • Controller: XRC

Robot Motion Speed:

  • Axe 1: 165º/seg
  • Axe 2: 165º/seg
  • Axe 3: 165º/seg
  • Axe 4: 335º/seg
  • Axe 5: 335º/seg
  • Axe 6: 510º/seg

उपयोग

Pengelasan busur , Memuat dan membongkar suku cadang , Mesin , Penanganan suku cadang , Poles , Perakitan bagian , Lem - Ikatan perekat
