Other Robots Melfa RV-2AJ

Awaiting more stock

सूचना
विनिर्दिष्टियाँ

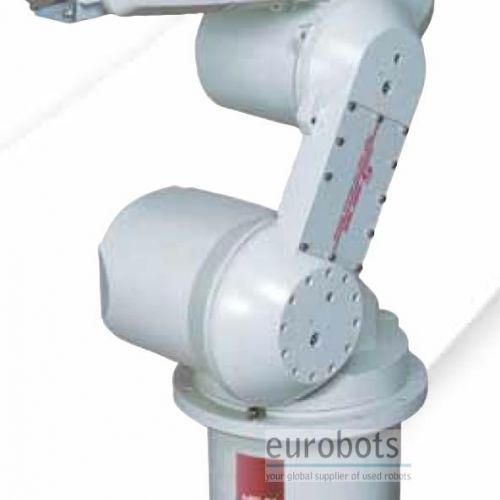

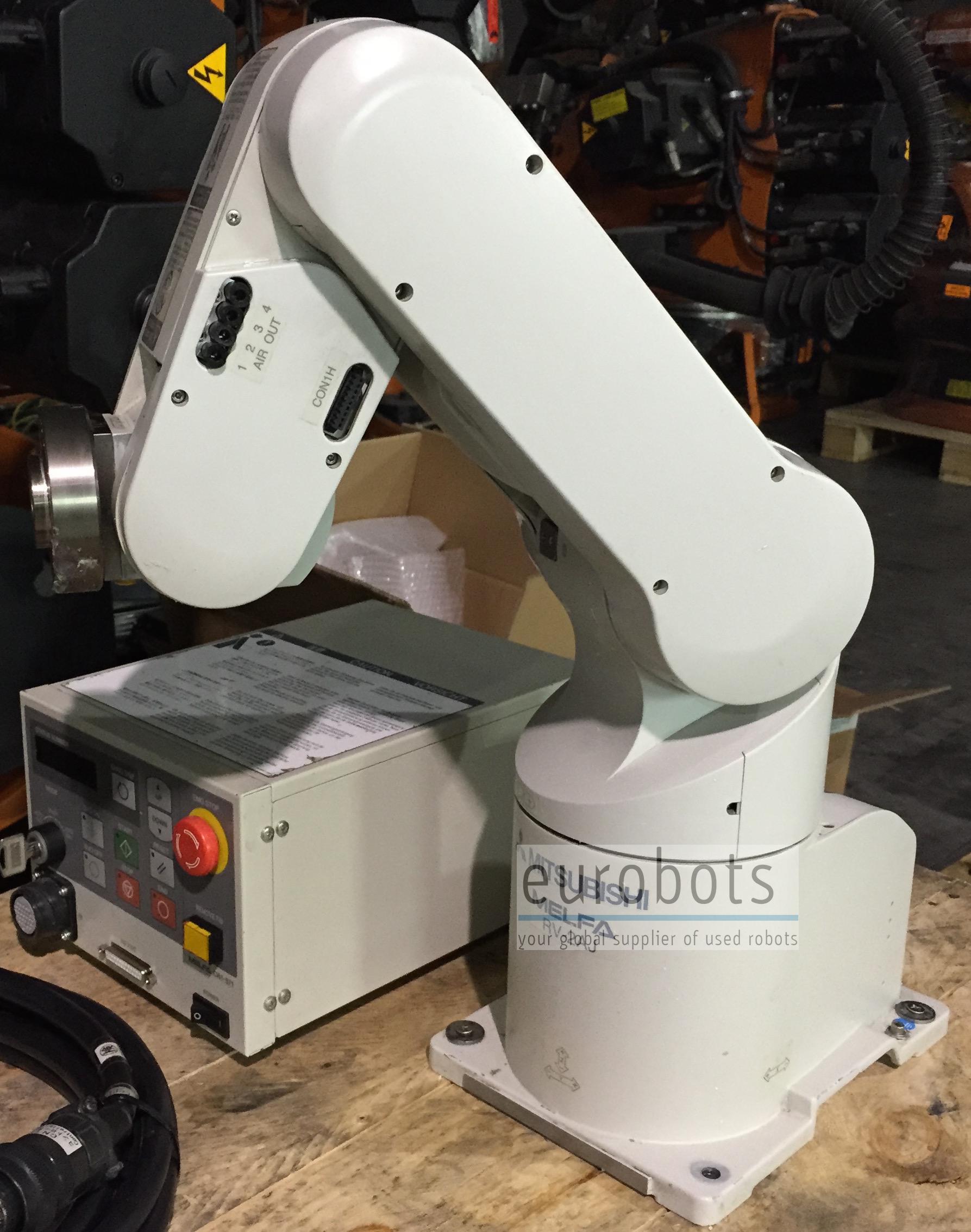

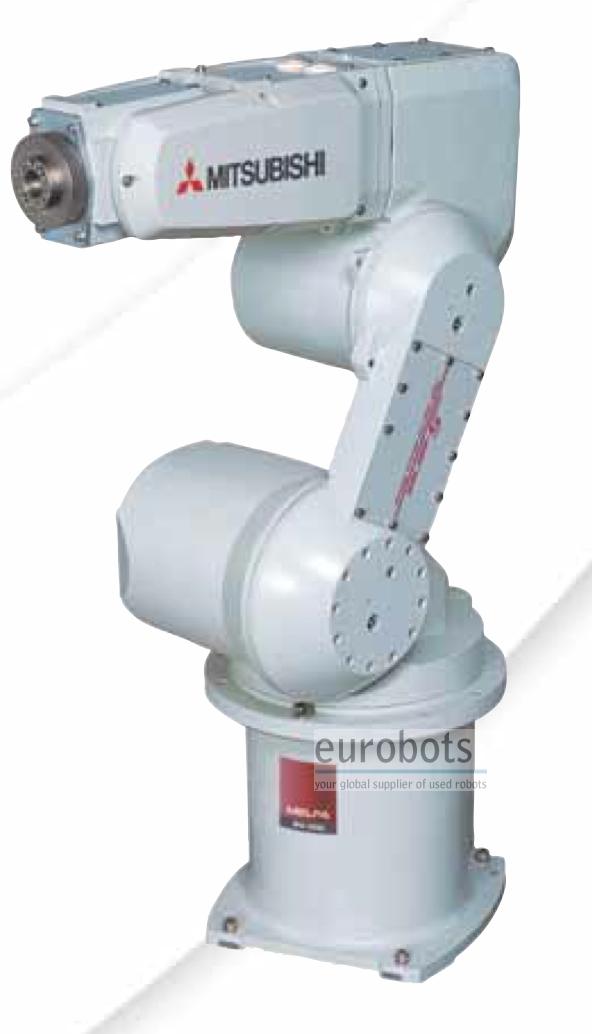

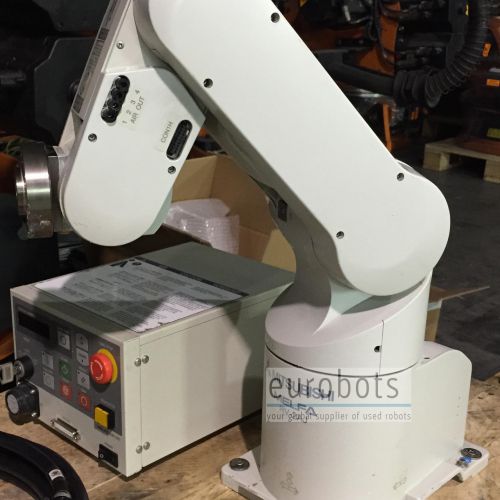

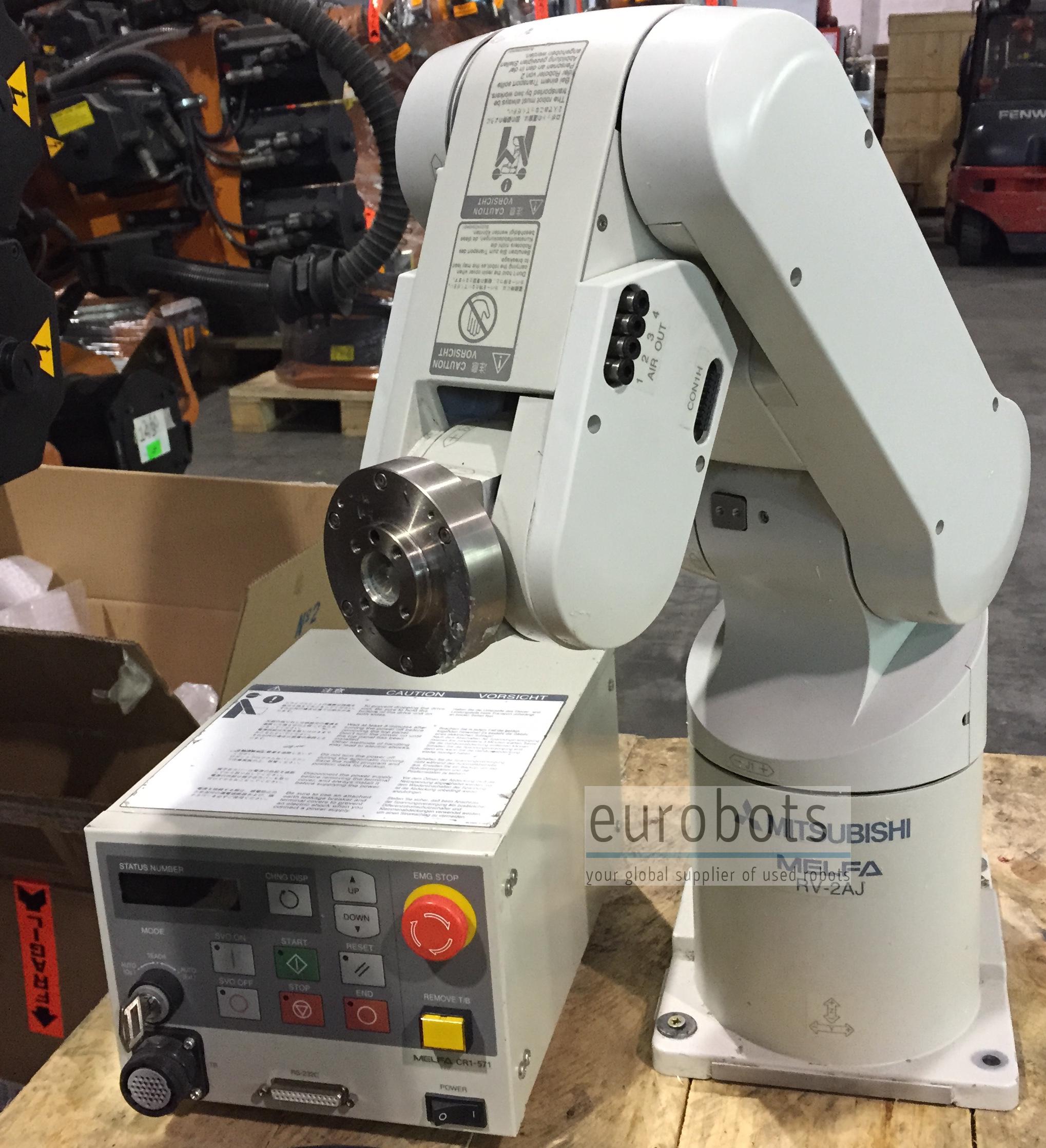

Small payload 5 axis robot, year 2009, suitable for pick and place operations where short cycles are required.

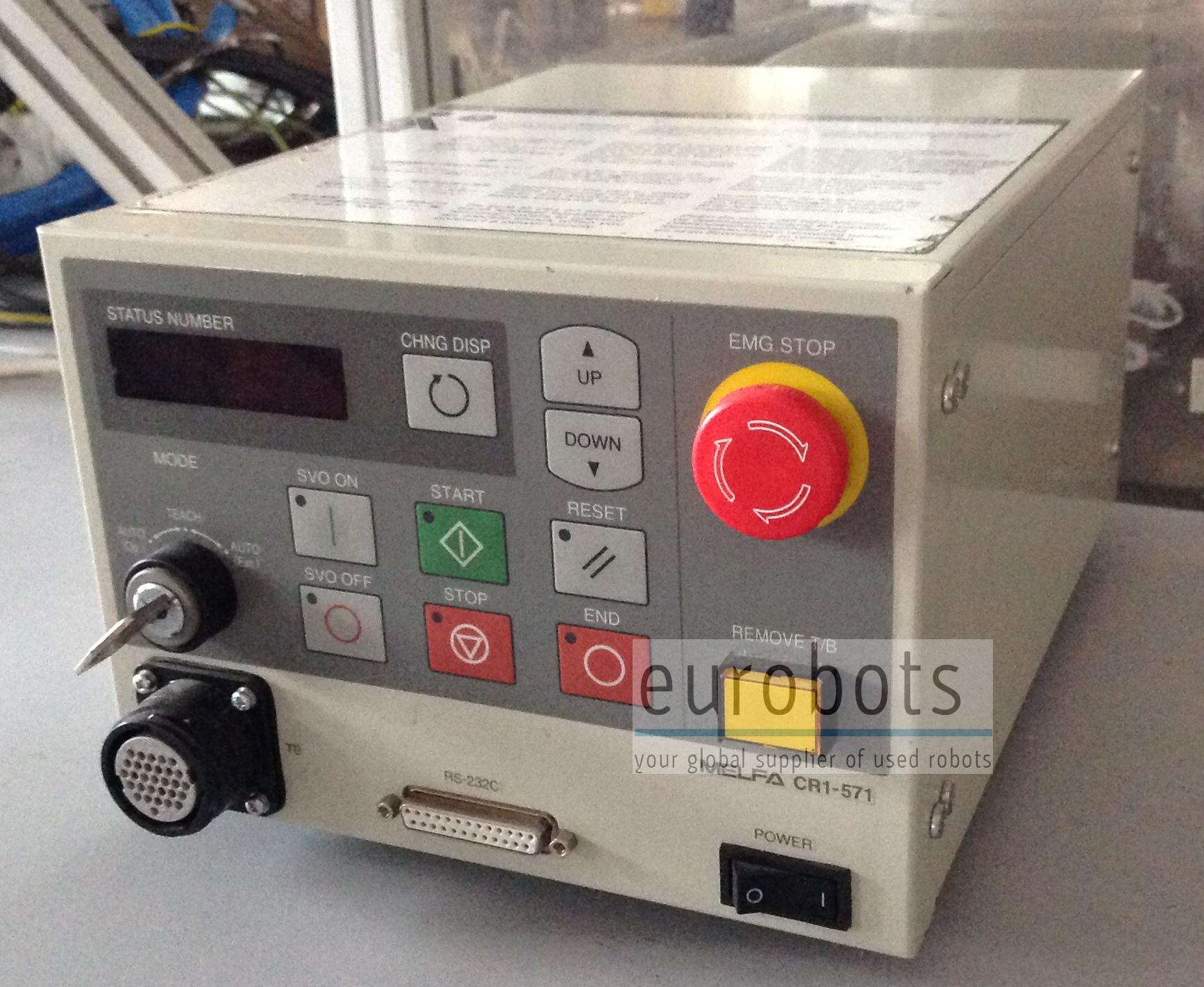

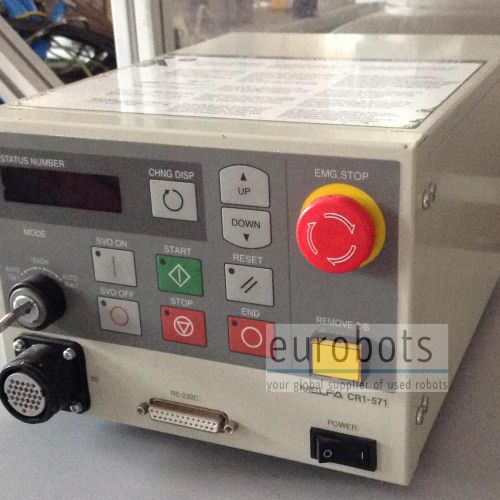

Fast and accurate. Mitsubishi Melfa CR1-571 controller.

Capable of top class high speed high precision operation with dedicated motor and amplifier.It has applicability to diverse works by easy connectibity with Mitsubishi's PLCs and servo motors.

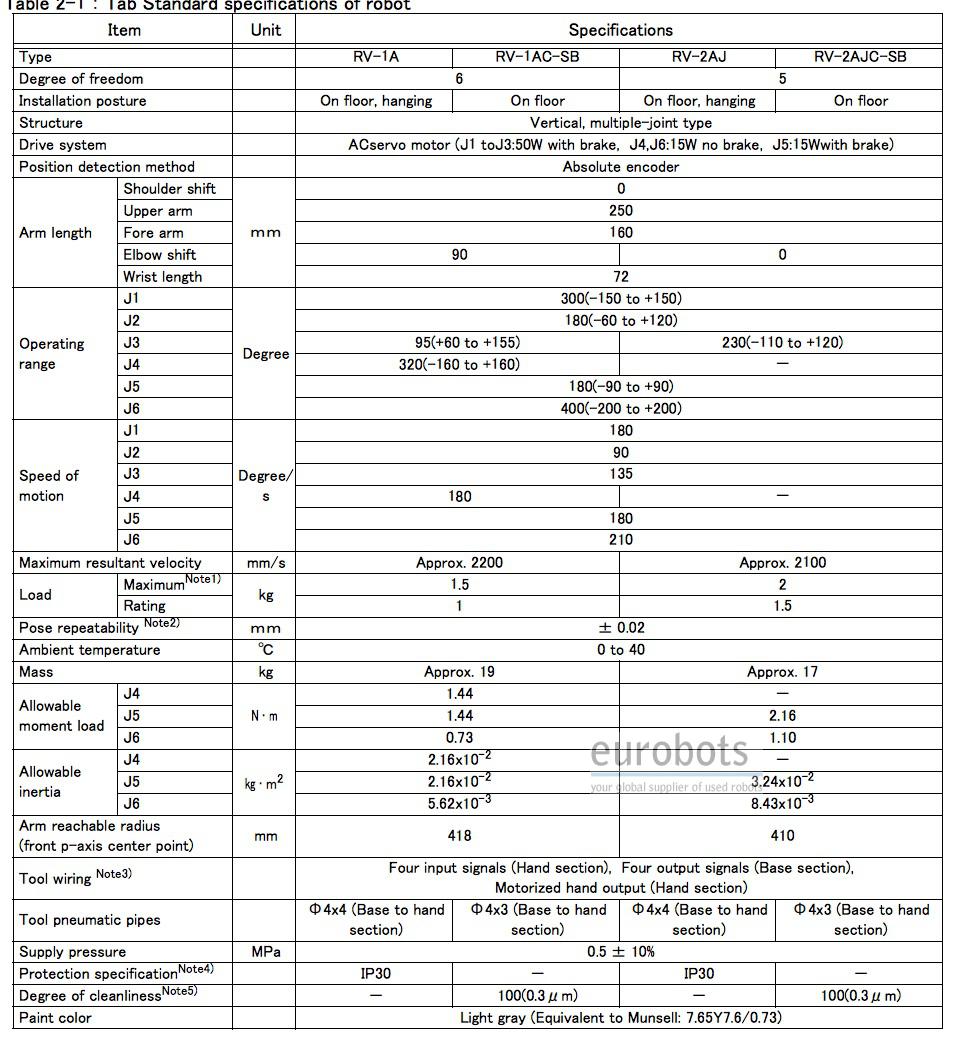

Main features

Maximum load of robot: 2 Kg
Number of axis: 5
Maximum Reach: 410 mm
Repeatability: 0.02 mm
Controller: Melfa CR1-572

Robot Motion Speed

Joint 1: 180º/s
Joint 2: 90º/s
Joint 3: 135º/s
Joint 5: 180º/s
Joint 6: 210º/s

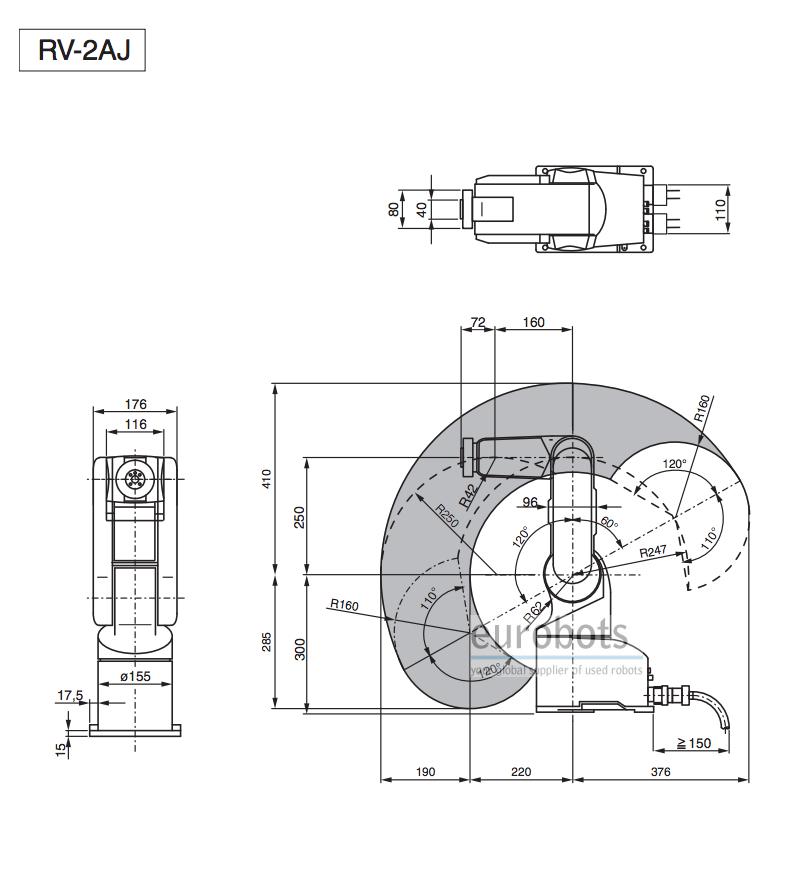

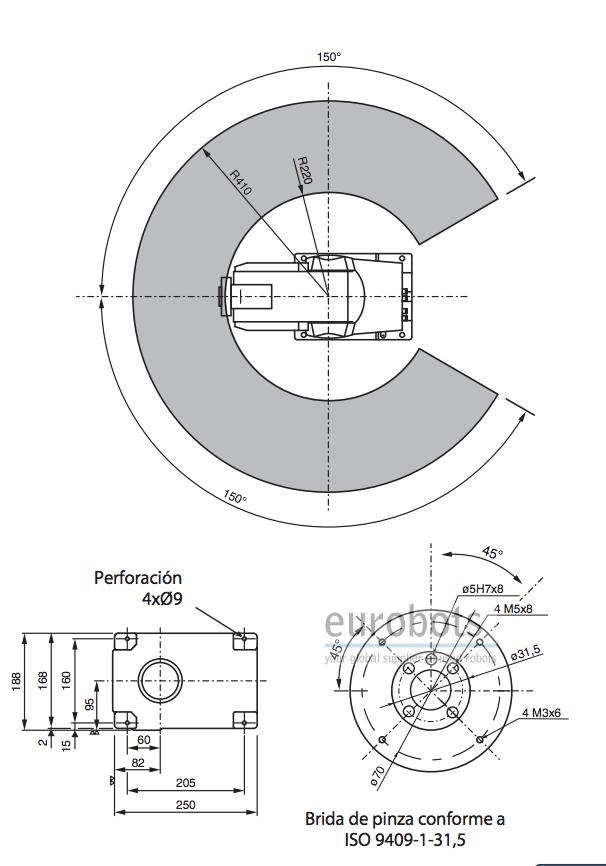

Axis working range

Joint 1: +150º to -150º
Joint 2: +120º/s to -60º
Joint 3: +120º/s to -110º
Joint 5: +90º/s to -90º
Joint 6: +200º to -200º

उपयोग

Memuat dan membongkar suku cadang , Penanganan suku cadang , Perakitan bagian
