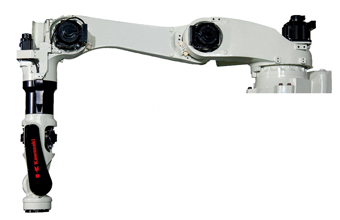

Kawasaki BT200L

Awaiting more stock

The BT200L is a robot designed for high speed point welding with heavy duty motors, optimized sequence movement by servo welding guns, control to improve acceleration and deceleration providing short cycle times and high performance. This robot is a space saver thanks to its small footprint and thin arm that allow installation in "high density" applications, shelf mounted is for applications that require the robot to be installed on top of the work piece.

E Controller

E controllers are compact, reliable and high performance, have advanced technology in the CPU allowing greater productivity and trajectory control. Wide range of industrial applications supported by Kawasaki AS technology that uses a programming language that provides sequence control; possible expansion of up to 10 external axes for complete control of 16 axes. Easy maintenance and diagnosis thanks to its modular components and limited cables.

  • Ideal for primary energy distribution voltage of each region
  • Greater capacity for expansion
  • Closed structure with indirect cooling system
  • Digital servo system
  • I / O channels 32 (max128)
Main specifications
Maximum Load of Robot: 200 kg
Number of axis: 6
Maximum horizontal reach: 3,151 mm
Repeatability: ± 0.2 mm
Controller: E32
Motion range (°)
Axis JT1: ±160°
Axis JT2: +80°/-130
Axis JT3: +90°/-75
Axis JT4: ±210°
Axis JT5: ±125°
Axis JT6: ±210°
Maximum speed (°/s)
Axis JT1: 105°/s
Axis JT2: 85°/s
Axis JT3: 100°/s
Axis JT4: 120°/s
Axis JT5: 120°/s
Axis JT6: 200°/s
Robot applications
Friction Spot Joining
Machine Tending
Material Handling
Material Removal
Spot Welding
