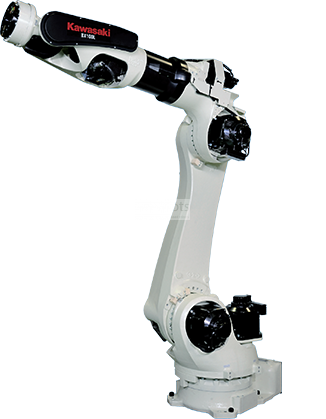

Kawasaki BX100L

Awaiting more stock

The BX100L is a space-saving design robot with a slim arm that allows easy installation in "high density" applications without interfering with performance. It is characterized by presenting a high speed ideal for spot welding provides a large working space and greater flexibility, its automatic calibration function improves the acceleration and deceleration of gun speed by minimizing cycle times.

E Controller

E controllers are compact, reliable and high performance, have advanced technology in the CPU allowing greater productivity and trajectory control. Wide range of industrial applications supported by Kawasaki AS technology that uses a programming language that provides sequence control; possible expansion of up to 10 external axes for complete control of 16 axes. Easy maintenance and diagnosis thanks to its modular components and limited cables.

  • Ideal for primary energy distribution voltage of each region
  • Greater capacity for expansion
  • Closed structure with indirect cooling system
  • Digital servo system
  • I / O channels 32 (max128)
Main specifications
Maximum Load of Robot: 100 kg
Number of axis: 6
Maximum horizontal reach: 2,597 mm
Maximum vertical reach: 3,420 mm
Repeatability: ± 0.2 mm
Controller: E32
Motion range (°)
Axis JT1: ±160°
Axis JT2: +76°/-60°
Axis JT3: +90°/-75°
Axis JT4: ±210°
Axis JT5: ±125°
Axis JT6: ±210°
Maximum speed (°/s)
Axis JT1: 105°/s
Axis JT2: 130°/s
Axis JT3: 130°/s
Axis JT4: 200°/s
Axis JT5: 160°/s
Axis JT6: 300°/s
Robot applications
Carried Spot Welding
Pedestal Spot Welding
Material Handling
Friction Spot Joining
Machine Tending
Material Handling
Material Removal
Spot Welding


Pengelasan spot , Penanganan suku cadang , Pengukuran , Perakitan bagian
