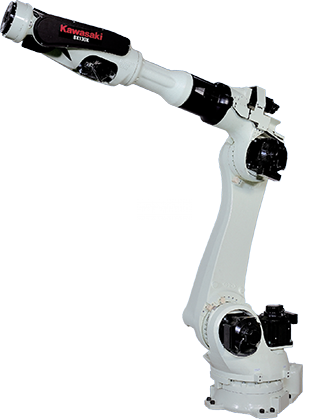

Kawasaki BX130X

Awaiting more stock

The BX130X robot with designed for spot welding with powerfull heavy-duty motors, offers optimization in motion control for greater speed, its compact design and thin arm and wide reach allow a saving of space when installing it and they facilitate the installation in applications of "high density" offering greater flexibility; The structure of manufacturing and engineering minimizes interference with other robots and peripheral devices, this robot can work in highly polluted environments thanks to Kawasaki technology that allows shorter maintenance intervals that provide greater profitability production optimization.

E Controller

E controllers are compact, reliable and high performance, have advanced technology in the CPU allowing greater productivity and trajectory control. Wide range of industrial applications supported by Kawasaki AS technology that uses a programming language that provides sequence control; possible expansion of up to 10 external axes for complete control of 16 axes. Easy maintenance and diagnosis thanks to its modular components and limited cables.

  • Ideal for primary energy distribution voltage of each region
  • Greater capacity for expansion
  • Closed structure with indirect cooling system
  • Digital servo system
  • I / O channels 32 (max128)
Main specifications
Maximum Load of Robot: 130 kg
Number of axis: 6
Maximum horizontal reach: 2,991 mm
Maximum vertical reach: 4,211 mm
Repeatability: ± 0.2 mm
Controller: E32
Motion range (°)
Axis JT1: ±160°
Axis JT2: +76°/-60°
Axis JT3: +90°/-75°
Axis JT4: ±210°
Axis JT5: ±125°
Axis JT6: ±210°
Maximum speed (°/s)
Axis JT1: 105°/s
Axis JT2: 90°/s
Axis JT3: 130°/s
Axis JT4: 200°/s
Axis JT5: 160°/s
Axis JT6: 300°/s
Robot applications
Carried Spot Welding
Pedestal Spot Welding
Material Handling
Friction Spot Joining
Machine Tending
Material Handling
Material Removal
Spot Welding


Pengelasan spot , Penanganan suku cadang , Pengukuran , Perakitan bagian
