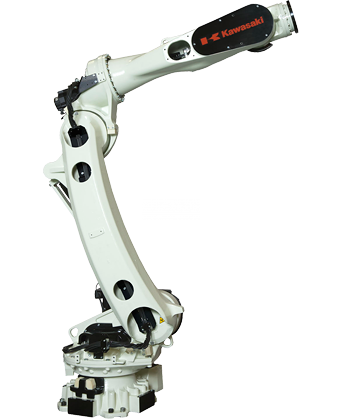

Kawasaki CX110L

Awaiting more stock

The CX110L is one of the robots that is part of the CX series of Kawasaki with a payload capacity of 110 kg and these have the highest speed of this series,
they are designed for the handling of heavy loads characterized by having a light and hollow arm that provide a high speed ideal for a wide variety of applications ranging from handling to welding.

E Controller

E controllers are compact, reliable and high performance, have advanced technology in the CPU allowing greater productivity and trajectory control. Wide range of industrial applications supported by Kawasaki AS technology that uses a programming language that provides sequence control; possible expansion of up to 10 external axes for complete control of 16 axes. Easy maintenance and diagnosis thanks to its modular components and limited cables.

  • Ideal for primary energy distribution voltage of each region
  • Greater capacity for expansion
  • Closed structure with indirect cooling system
  • Digital servo system
  • I / O channels 32 (max128)
Main specifications

Maximum Load of Robot: 110 kg
Number of axis: 6
Maximum horizontal reach: 2,699 mm
Repeatability: ± 0.2 mm
Controller: E

Motion range (°)

Axis JT1: ±160°
Axis JT2: +80°/-60°
Axis JT3: +95°/-75°
Axis JT4: ±210°
Axis JT5: ±120°
Axis JT6: ±360°

Maximum speed (°/s)

Axis JT1: 140°/s
Axis JT2: 135°/s
Axis JT3: 135°/s
Axis JT4: 200°/s
Axis JT5: 200°/s
Axis JT6: 300°/s

Robot applications

Assembly
Friction Spot Joining
Machine Tending
Material Handling
Material Removal
Sealing / Dispensing
Spot Welding

उपयोग

Spotwelding , Handling of parts , Measurement , Assembly of parts
