Other Robots Epson C4L Long Reach

Awaiting more stock

The series of robots C of Epson is leader in the dieño of robots of 6 axes of small and compact structure, maintaining a high standard of performance, his main characteristic is the relation between the footprint and the range of movement. It has the ability to access confined workspaces from many angles with delicate movements, providing an amazing flexibility and high speed.

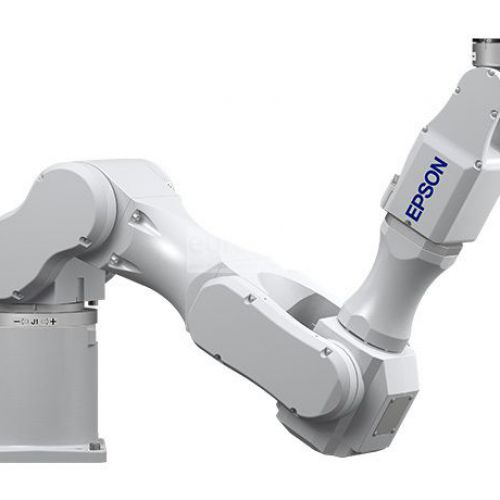

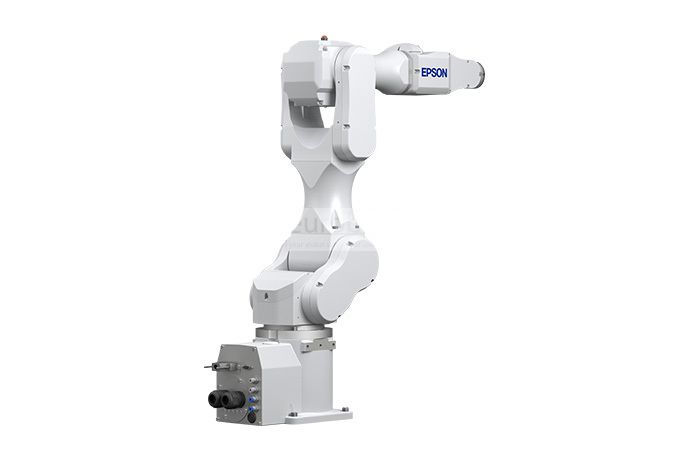

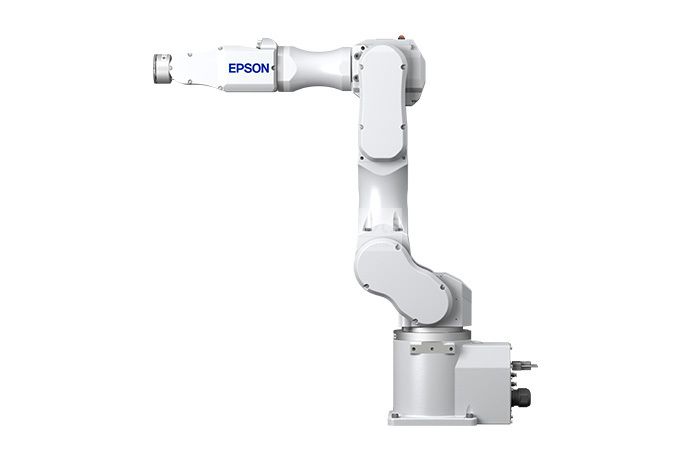

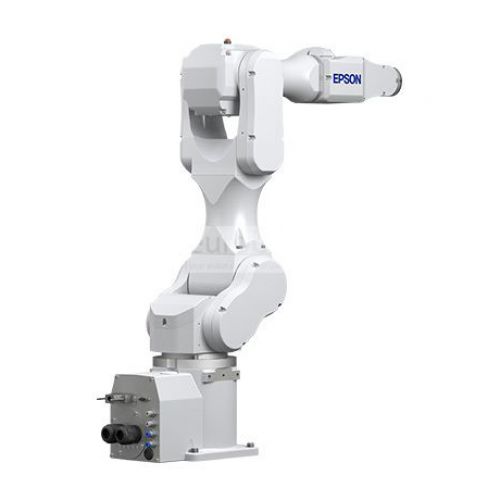

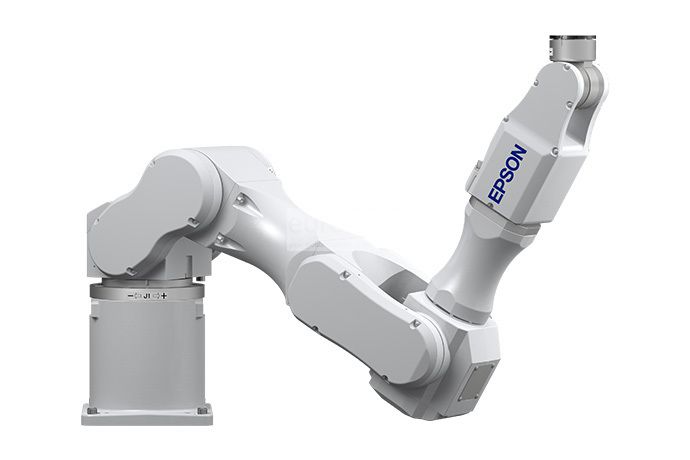

The C4L Robot is the wide-ranging version of the C4. This 6-axis robot with SlimLine design saves a lot of space, without compromising the power, speed or range, It has a compact wrist step to work in confined spaces, with its cycle times of 0.47 seconds, 965 mm reach capacity and load 4 kg provides excellent flexibility and dexterity. It has a high precision repeatability, DeviceNet, Profibus, EtherNet / IP connections, CC-Link fieldbus connectivity, Accompanied by QMEMS-based servo technology that minimizes vibration, available in cleaning / ESD models.

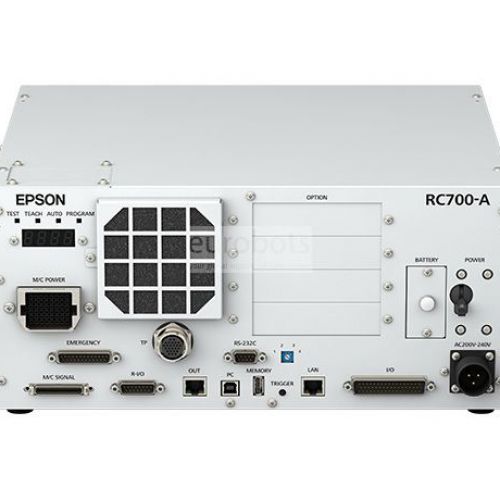

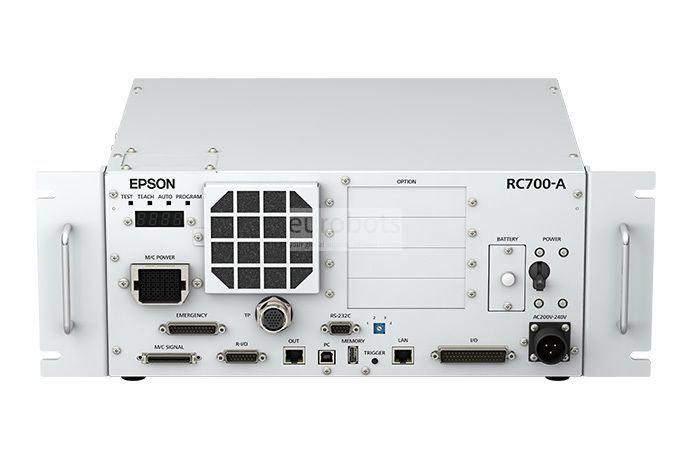

Equipped with the powerful and simple RC700A controller

leader in PC-based robot controls, this high-performance controller. With an open architecture design, it allows customers to add third-party software and hardware to build systems that suit their needs. It provides powerful integrated options (Vision Guide, .NET Connectivity (EPSON RC + 7.0 API), EtherNet / IP, DeviceNet, GUI Generator). The RC700A helps reduce development time, improves cycle / performance times and saves the customer money. PC-based ease of use for both advanced users and beginners. Capable of controlling up to (4) 6-axis robots, the RC700A provides superior PowerDrive servo control for super-smooth movement, fast acceleration / deceleration times and fast cycle times. It has an Epson TP3 teach pendant with menu-guided user interface, Easy connection to the controller, with safety standards such as slow speed control, 3-position enabling switch and resettable E-Stop, acts as a teaching tool of robots, and also has the ability to make changes in the parameters of the robots.

Robot Info:

  • Maximum Load of Robot: 4 kg
  • Maximum Reach: 965 mm
  • Repeatability: ±0.03 mm
  • Mounting type: Tabletop, Ceiling
  • Controller: RC700A

Robot Motion Speed:

  • Axis 1: 275°/s
  • Axis 2: 275°/s
  • Axis 3: 289°/s
  • Axis 4: 555°/s
  • Axis 5: 555°/s
  • Axis 6: 720°/s

Robot motion range:

  • Axis 1: ±170°
  • Axis 2: -160°-+65°
  • Axis 3: -51°-+225°
  • Axis 4: ±200°
  • Axis 5: ±135°
  • Axis 6: ±360°

Robot Applications:

  • Medical
  • Lab Automation
  • Telecommunications
  • Pharmaceutical
  • Electronics

उपयोग

Memuat dan membongkar suku cadang , Penanganan suku cadang , Perakitan bagian
