Other Robots Epson C8XL Mid Sized

Awaiting more stock

The series of robots C of Epson is leader in the dieño of robots of 6 axes of small and compact structure, maintaining a high standard of performance, his main characteristic is the relation between the footprint and the range of movement. It has the ability to access confined workspaces from many angles with delicate movements, providing an amazing flexibility and high speed.

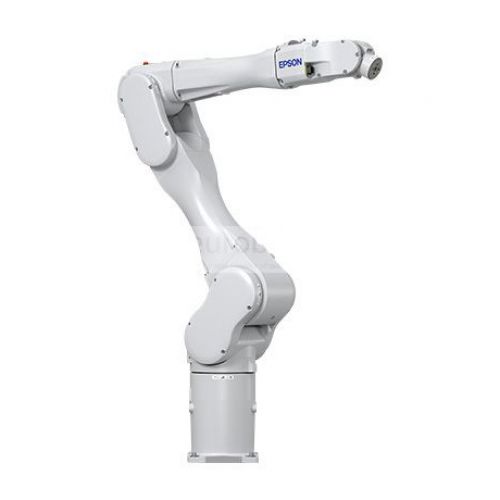

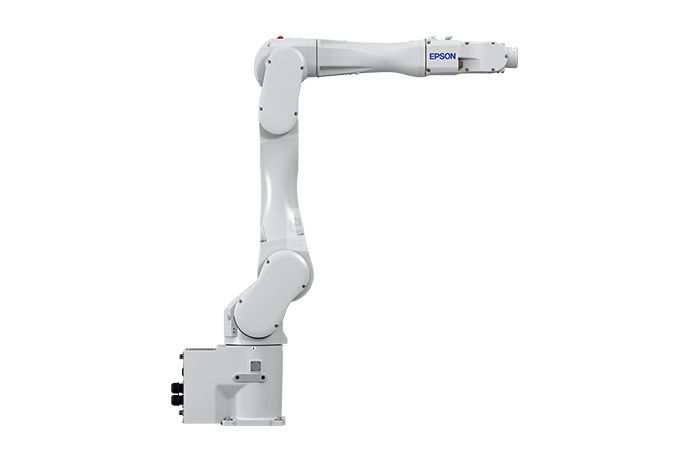

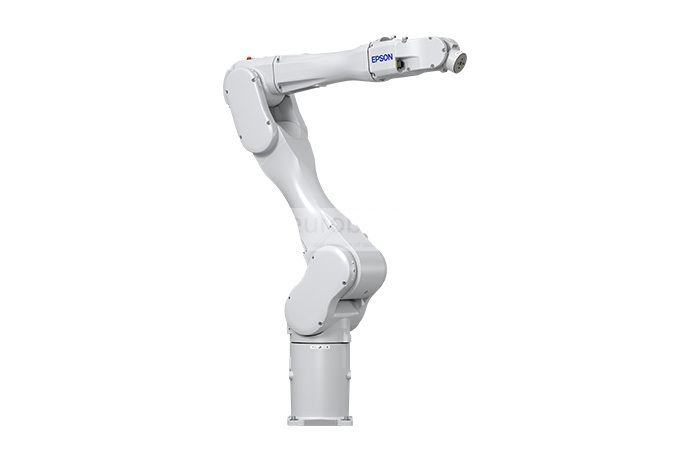

C8XL EPSON 6-axis robot, SlimLine design that reduces the volume of the robot, with an arm reach of up to 1400 mm. This robotic model is characterized by its high speed and high performance, with QMEMS technology that is based on high precision motion sensors and allows processes without vibrations, with small footprint for maximum use of space to work in difficult access spaces , DeviceNet connections, Profibus, EtherNet / IP, EtherCat, available are cleaning / ESD models. Ideal for applications in industries such as automotive, electronics, plastics and packaging.

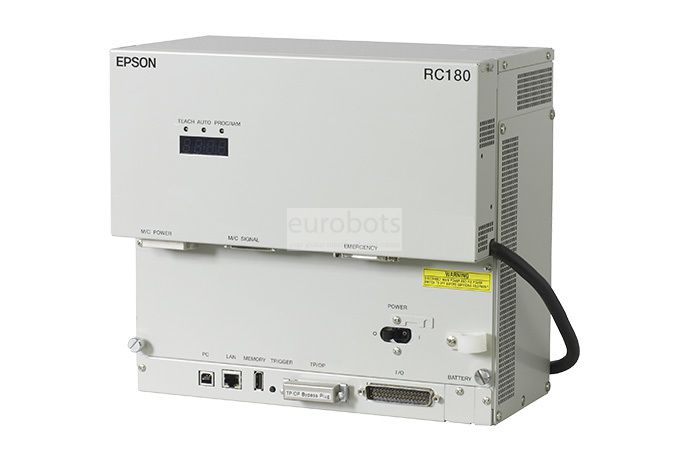

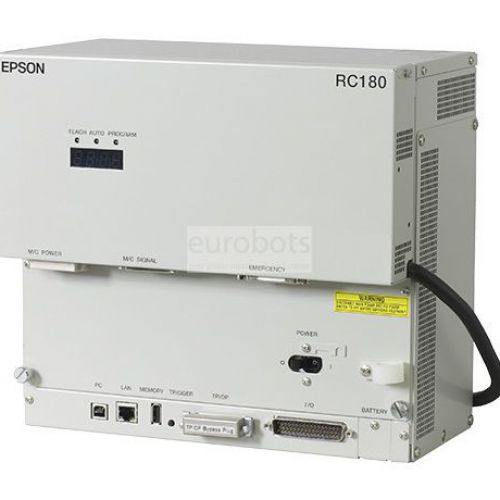

Compact, powerful and easy-to-use Epson RC180 Micro PowerDrive Controller

The EPSON Micro PowerDrive RC180 controller is a low-cost, high-performance robot controller that provides the best ease-of-use, compact size, and reliability experience at an incredibly low cost. has integrated options such as a servo system PowerDrive provides an advanced servo control to accelerate acceleration / deceleration times (Control of up to 6 simultaneous axes (Servo AC), Movement type: CP movement (continuous path), PTP movement (point to point ), speed / Acceleration / Deceleration: Fully programmable), high performance motion profiles and trajectory control, fast cycle times, easy programming of the robot, used autonomously, PLC Slave or with PC, Vision Guide, Connectivity. NET, EtherNet / IP. Standard digital I / O: 16 inputs / 8 outputs (optically isolated), remote I / O 8 inputs / 8 outputs (can be configured as standard I / O). This controller offers the best experience in high performance, space saving and low cost in a wide range of industrial operations.

Robot Info:

  • Maximum Load of Robot: 8 kg
  • Maximum Reach: 1400 mm
  • Repeatability: ±0.05 mm
  • Mounting type: Tabletop
  • Controller: RC180

Robot Motion Speed:

  • Axis 1: 200°/s
  • Axis 2: 167°/s
  • Axis 3: 200°/s
  • Axis 4: 450°/s
  • Axis 5: 450°/s
  • Axis 6: 720°/s

Robot motion range:

  • Axis 1: ±240°
  • Axis 2: -135°-+55°
  • Axis 3: -61° -+202 °
  • Axis 4: ±200°
  • Axis 5: ±135°
  • Axis 6: ±360°

Robot Applications:

  • Medical
  • Lab Automation
  • Telecommunications
  • Pharmaceutical
  • Electronics
  • Machine load/unload
  • Component handling for Automotive
  • Packaging
  • Assembly

उपयोग

Loading and unloading of parts , Handling of parts , Assembly of parts
