Other Robots Epson S5 Mid-Range

Awaiting more stock

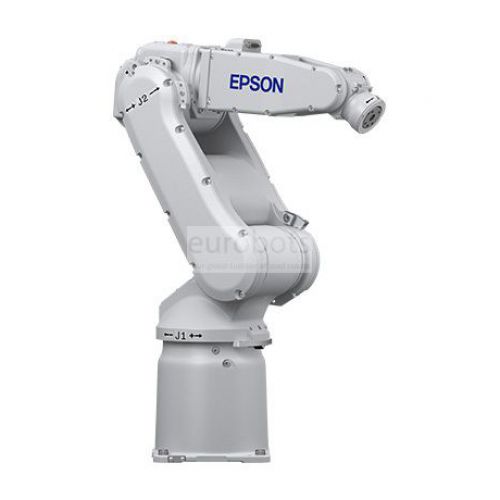

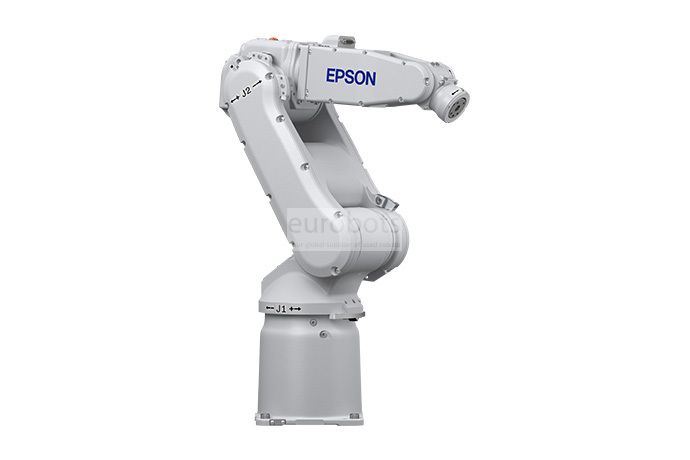

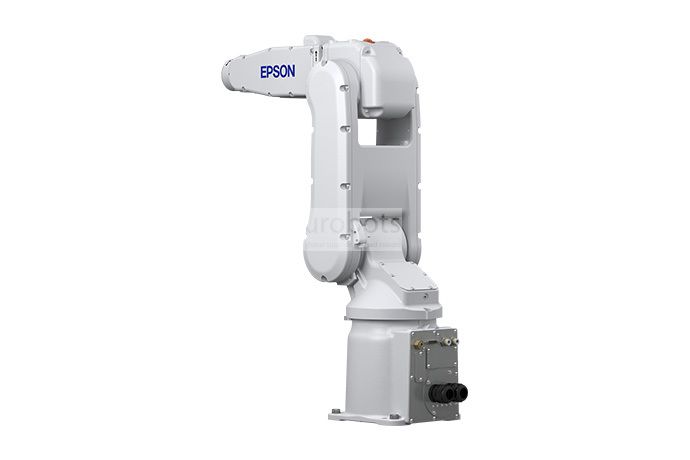

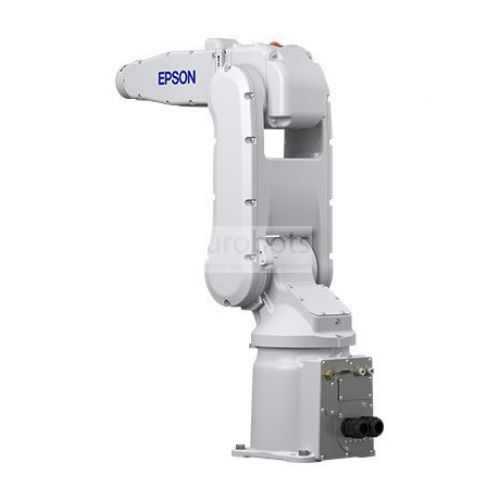

The 6-axis Epson S series is characterized by its midrange, small footprint, ultra speed, fast cycles and heavy payload. These thefts offer high performance and flexible arms and high precision in repeatability, available in ISO4 Clean models and compatible with IP65, configured for ceiling, wall or table mounting.

Robot Epson S5 have a range of up to 786 mm and payloads of up to 5 kg. Compact wrist can access confined workspaces from many angles with ultra smooth movements. Its high rigidity and servo control arm design provides optimum performance. They are ideal for material handling and assembly of small parts.

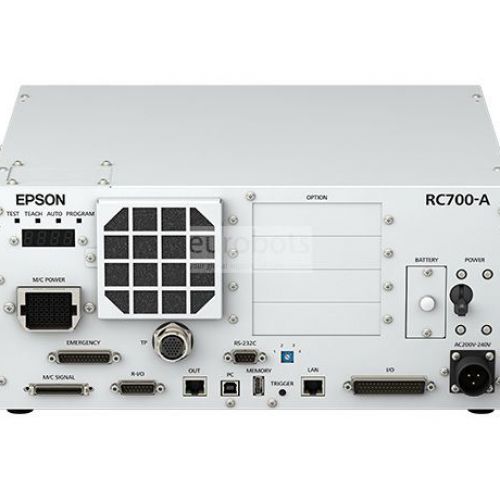

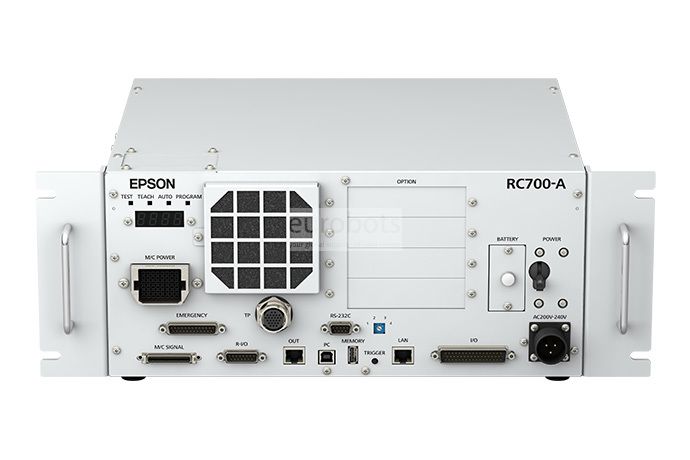

Equipped with the powerful and simple RC700A controller

leader in PC-based robot controls, this high-performance controller. With an open architecture design, it allows customers to add third-party software and hardware to build systems that suit their needs. It provides powerful integrated options (Vision Guide, .NET Connectivity (EPSON RC + 7.0 API), EtherNet / IP, DeviceNet, GUI Generator). The RC700A helps reduce development time, improves cycle / performance times and saves the customer money. PC-based ease of use for both advanced users and beginners. Capable of controlling up to (4) 6-axis robots, the RC700A provides superior PowerDrive servo control for super-smooth movement, fast acceleration / deceleration times and fast cycle times. It has an Epson TP3 teach pendant with menu-guided user interface, Easy connection to the controller, with safety standards such as slow speed control, 3-position enabling switch and resettable E-Stop, acts as a teaching tool of robots, and also has the ability to make changes in the parameters of the robots.

Robot Info:

  • Maximum Load of Robot: 5 kg
  • Maximum Reach: 706 mm
  • Repeatability: ±0.02 mm
  • Mounting type: Tabletop, Ceiling, wall
  • Controller: RC700A

Robot motion range:

  • Axis 1: ±170° (wall ±30°)
  • Axis 2: -150°to +65°
  • Axis 3: -70° to +190°
  • Axis 4: ±190°
  • Axis 5: ±135°
  • Axis 6: ±360°

Robot Applications:

  • Medical
  • Lab Automation
  • Telecommunications
  • Pharmaceutical
  • Electronics
  • Packaging
  • Material handling
  • Assembly of small parts
