Fanuk M-710iB/45

Awaiting more stock

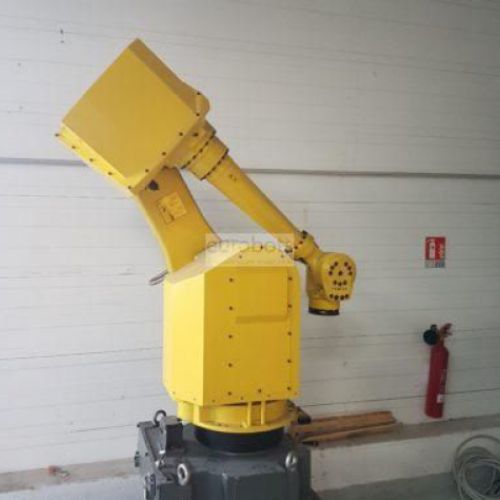

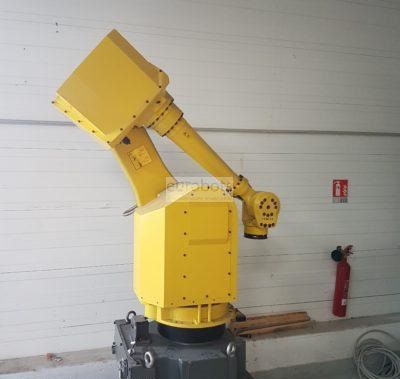

Industrial Robot Fanuc M710iB/45 is characterized by offering efficiency and speed thanks to its compact size, AC servomotors and small footprint that allow to play a variety of applications with a payload of 45 kg and a range of 1706 mm. Can be installed on the floor, angle or ceiling. Equipped with the RJ3IB controller.

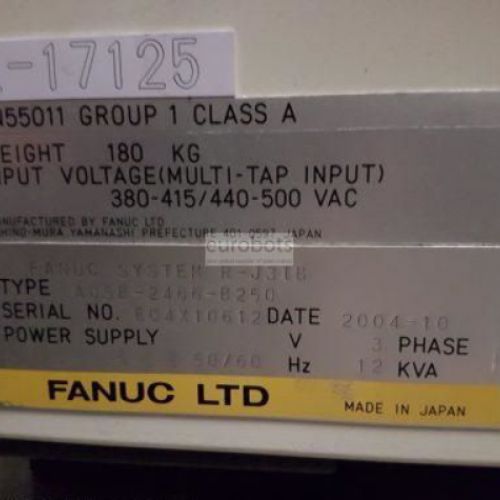

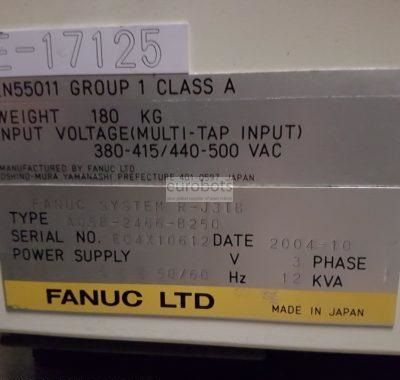

The FANUC R-J3iB is a controller of advanced technology that optimizes the performance of the processes; provides easy and intuitive buttons with LED to indicate the operating and cycle conditions, analog and digital input and output modules, flexibility in specific applications through the plug-in option allowing the controller to be reliable and efficient.

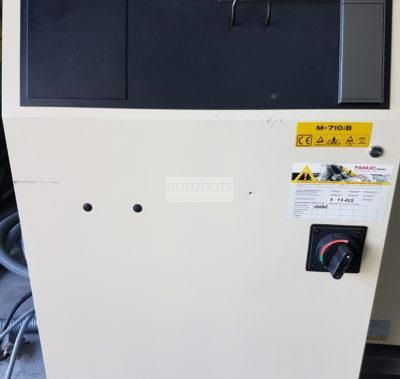

Rj3iB control

Type B cabinet
Rapid change of the amplifier (<5 min)
Quick start
Easy connections for the variety of I/O, including a number of distributing I/O networks

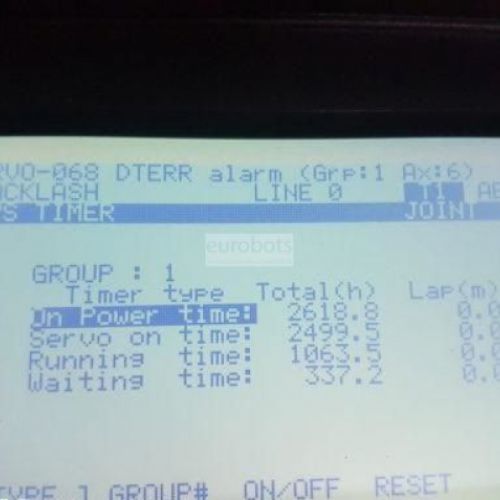

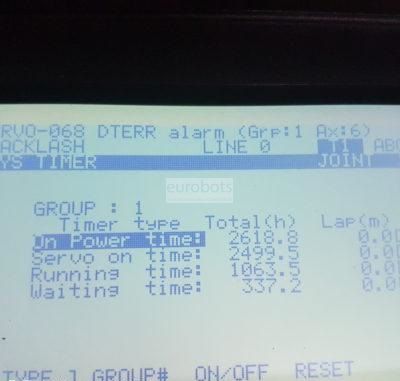

Teach pendant color for even easier programming and custom-designed user interface shows program data, debugs programs, adjust variables, LCD 16 lines by 40 characters, function keys menu driven, monitor and control I/O to control the EOAT and display current information about the status or position of the robot.

Main specifications

Maximum Load of Robot: 45 Kg
Number of axis: 6
Maximum reach: 1706 mm
Repeatability: ±0.07 mm
Controller: RJ3IB

Motion of  range

Axis 1: + 320°-350°
Axis 2: ± 260°
Axis 3: ± 420°
Axis 4: ± 540°
Axis 5: ± 250°
Axis 6: ± 720°

Robot motion speed in º/s

Axis 1: 160 °/s
Axis 2: 120 °/s
Axis 3: 150 °/s
Axis 4: 240 °/s
Axis 5: 240 °/s
Axis 6: 340 °/s

Robot Applications

Material Handling
Assembly
Palletizing
Dispensing
Part Transfer
Material Removal
