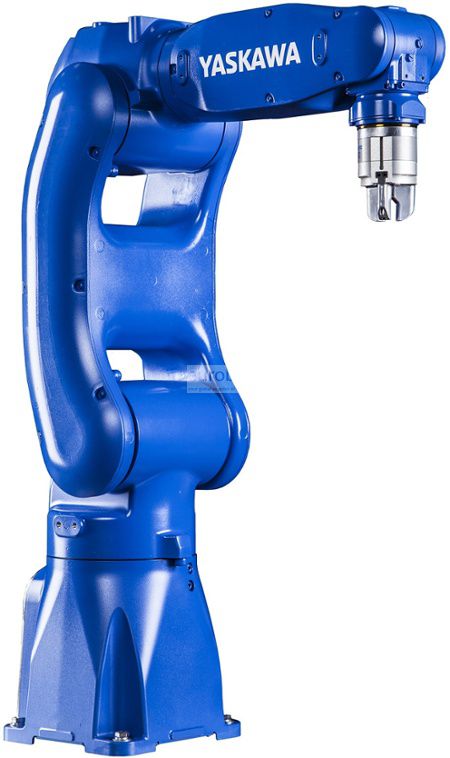

Motoman GP8

Awaiting more stock

The GP8 is part of the series of GP robots characterized by their optimal control of acceleration and deceleration which allows achieving a better productivity. The thin arm design allows easy, fast and efficient installation in a minimum space, minimal interference with other devices and can work in close proximity with other robots. This robot comes optimized in its load capacity and speed, the highest moment allowed by the wrist in its class. Its flexible and compact structure makes it ideal for high speed assembly and handling processes.

YRC1000 controller
This is the next generation YRC1000 controller with compact, fast and flexible structure that allows a high precision of trajectory and high efficiency. Provides a pendant for easy use and programming, lightweight design.
Features controller
Compact design that allows the installation of the robot in a small space.
Optimal I / O communication speed to optimize up to 50% working efficiency.
High accuracy of speed in the performance of the trajectory.
Complete equipment and preventive maintenance information along with software tools for analysis that allows simplified maintenance and configuration.
Excellent wiring capacity only controller cable to the robot.
Its standard structure does not require a transformer for input voltages ranging from 380 V AC to 480 V AC.
Main specifications
Maximum Load of Robot: 8 kg
Number of axis: 6
Maximum horizontal reach: 727 mm
Maximum vertical reach: 1,312  mm
Repeatability: ±0.02 mm
Controller: YRC1000
Motion range (°)
Axis S: ±170°
Axis L: +150°/-65°
Axis U: +255°/-113°
Axis R: ±190°
Axis B: ±135°
Axis T:  ±360°
Maximum speed (°/s)
Axis S: 455°/s
Axis L: 385°/s
Axis U: 520°/s
Axis R: 550°/s
Axis B: 550°/s
Axis T: 1000°/s
Robot applications
Material handling


Penanganan suku cadang , Perakitan bagian
