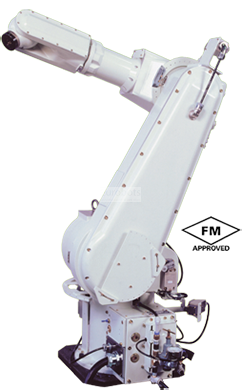

Cat Kawasaki KF121
The kawasaki k series specially designed for painting applications with advanced technology equips with functions that allow greater productivity, has an easy incorporation of the system with an intuitive graphic interface control panel that allows users to operate and control the entire robotic process providing complete information on production management, data configuration, statistical data on production, modification of coating requirements, paint consumption. It has a flexible programming system using two Kawasaki Block Step or AS programming methodologies, the structure of its hollow wrist arms allows the use of internal hoses to minimize contamination. The KF121 robot is one of the small designs of this K series for handling and painting small parts.
It is designed to provide optimum performance and easy execution; compact structure of high density and high quality, its operating system allows easy use where you can turn on the engines and activate the boot cycle from the console improving system control; It allows viewing two information screens simultaneously to provide access to different types of information. The control functions of the paint unit are a flexible and inexpensive system that can configure the paint requirements and perform the calibration of the download rate on the programming console screen. The tactile Tech pendant is easy to use to edit and control the information identifying the I / O signals in the explosion-proof area, customizable interface, backlit screen.
Controller specifications E
- Drive system: Full digital servo system
- Teaching method: Easy operation teaching or AS language programming
- Teach pendant: Explosion-proof teach pendant Color LCD teach pendant
- Memory capacity (MB): 8
- I/O Signals
- External operation: Emergency stop, Hold etc.
- Input (Channels): 32 (max. 128)
- Output (Channels): 32 (max. 128)
- Structure: Enclosed structure with indirect cooling system
Maximum Load of Robot: 5 kg
Number of axis: 6
Maximum horizontal reach: 1,240 mm (Distance from the center of JT1 to the center of JT5)
Repeatability: ±0.2 mm
Motion range (°)
Maximum speed (°/s)
