Kawasaki KJ264 painting

Awaiting more stock

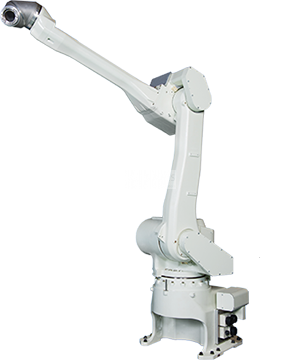

The KJ264 robot with thin and light structure for floor installation, wide range of motion and approval of exploration, its ideal 3R hollow wrist for locating internal hoses and minimizing contamination.

The kawasaki k series specially designed for painting applications with advanced technology equips with functions that allow greater productivity, has an easy incorporation of the system with an intuitive graphic interface control panel that allows users to operate and control the entire robotic process providing complete information on production management, data configuration, statistical data on production, modification of coating requirements, paint consumption. It has a flexible programming system using two Kawasaki Block Step or AS programming methodologies, the structure of its hollow wrist arms allows the use of internal hoses to minimize contamination.

Controller E
It is designed to provide optimum performance and easy execution; compact structure of high density and high quality, its operating system allows easy use where you can turn on the engines and activate the boot cycle from the console improving system control; It allows viewing two information screens simultaneously to provide access to different types of information. The control functions of the paint unit are a flexible and inexpensive system that can configure the paint requirements and perform the calibration of the download rate on the programming console screen. The tactile Tech pendant is easy to use to edit and control the information identifying the I / O signals in the explosion-proof area, customizable interface, backlit screen.
Controller specifications E
  • Drive system: Full digital servo system
  • Teaching method: Easy operation teaching or AS language programming
  • Teach pendant: Explosion-proof teach pendant Color LCD teach pendant
  • Memory capacity (MB): 8
  • I/O Signals
  • External operation: Emergency stop, Hold etc.
  • Input (Channels): 32 (max. 128)
  • Output (Channels): 32 (max. 128)
  • Structure: Enclosed structure with indirect cooling system

Main specifications
Maximum Load of Robot: Wrist 15 kg, arm 25 kg
Number of axis: 6
Maximum horizontal reach: 2,640
Repeatability: ±0.5 mm
Controller: E35/E45/E25
Motion range (°)
JT1: ±120°
JT2: +130°/-80°
JT3: +90° /-65°
JT4: ±720°
JT5: ±720°
JT6: ±410°
