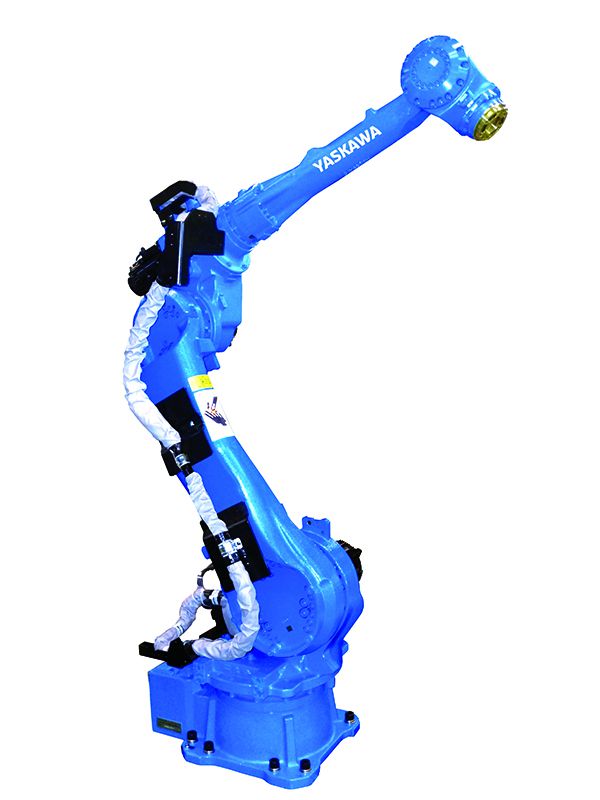

Motoman MH50 II-35

Awaiting more stock

The MH50 II-35 robot with 50 kg load capacity and 2,061 mm arm reach offers high performance in coating, dispensing, material cutting and handling processes. has a small interference radius which allows to work with other robots reducing the floor space for ease of assembly, is highly reliable, handles high speed and flexibility allowing a wide variety of applications.

DX200 Controller
DX200 is one of the robust system architecture controllers of high reliability and system level efficiency for the robotic work cells. Variety of fieldbus network connections. Dynamic interference zones protect the robot arm and provide advanced collision prevention. Allows up to three auxiliary / external axes and can be mounted remotely. provides:
Application flexibility.
High productivity.
Minimal integration costs.
Application flexibility.
Increased reliability and energy efficiency.
Improved maintenance capacity, reduced average repair time (MTTR).
Category 3 Performance Level Functional Safety Unit (FSU).
Control of multiple robot of up to 8 robots / 72 axes with synchronized movement between devices.
Advanced robot motion control (ARM) provides high productivity and trajectory planning.
Small and light pendant with Windows® CE programming color touch screen with multiple window viewing possibilities.
Main specifications

Maximum Load of Robot: 35 kg
Number of axis: 6
Maximum horizontal reach: 2,538 mm
Maximum vertical reach: 4,448  mm
Repeatability: ±0.07 mm
Controller: DX200

Motion range (°)

Axis S: ±180°
Axis L: +135°/- 90°
Axis U: +251°/-160°
Axis R: ±360°
Axis B: ±125°
Axis T: ±360°

Maximum speed (°/s)

Axis S: 180°/s
Axis L: 140°/s
Axis U: 178°/s
Axis R: 250°/s
Axis B: 250°/s
Axis T: 360°/s

Robot applications

Press tending
Machine tending
Material handling
Dispensing
Material cutting
Coating

उपयोग

Tekan merawat , Mesin , Penanganan suku cadang , Pengukuran , Perakitan bagian
