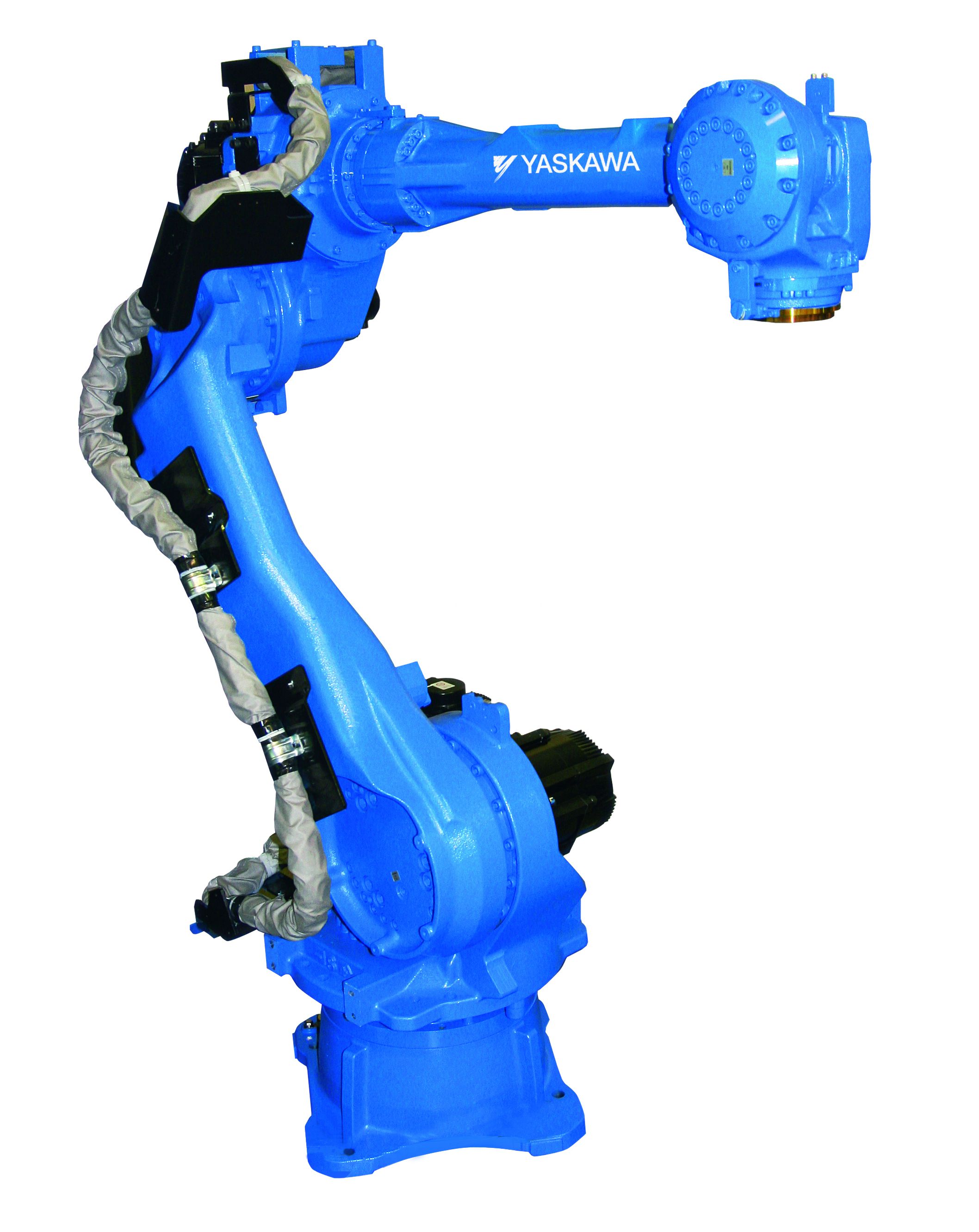

The MH50 II robot with load capacity of 50 kg and a arm reach of 2,061 mm offers high performance in coating, dispensing, cutting of materials and handling. has a small interference radius which allows to work with other robots reducing the floor space for ease of assembly, is highly reliable, handles high speed and flexibility allowing a wide variety of applications.
Minimal integration costs.
Increased reliability and energy efficiency.
Improved maintenance capacity, reduced average repair time (MTTR).
Category 3 Performance Level Functional Safety Unit (FSU).
Control of multiple robot of up to 8 robots / 72 axes with synchronized movement between devices.
Advanced robot motion control (ARM) provides high productivity and trajectory planning.
Small and light pendant with Windows® CE programming color touch screen with multiple window viewing possibilities.
Number of axis: 6
Maximum horizontal reach: 2,061 mm
Maximum vertical reach: 3,578 mm
Repeatability: ±0.07 mm
Axis L: +135°/- 90°
Axis U: +251°/-170°
Axis R: ±360°
Axis B: ±125°
Axis T: ±360°
Axis L: 178°/s
Axis U: 178°/s
Axis R: 250°/s
Axis B: 250°/s
Axis T: 360°/s
