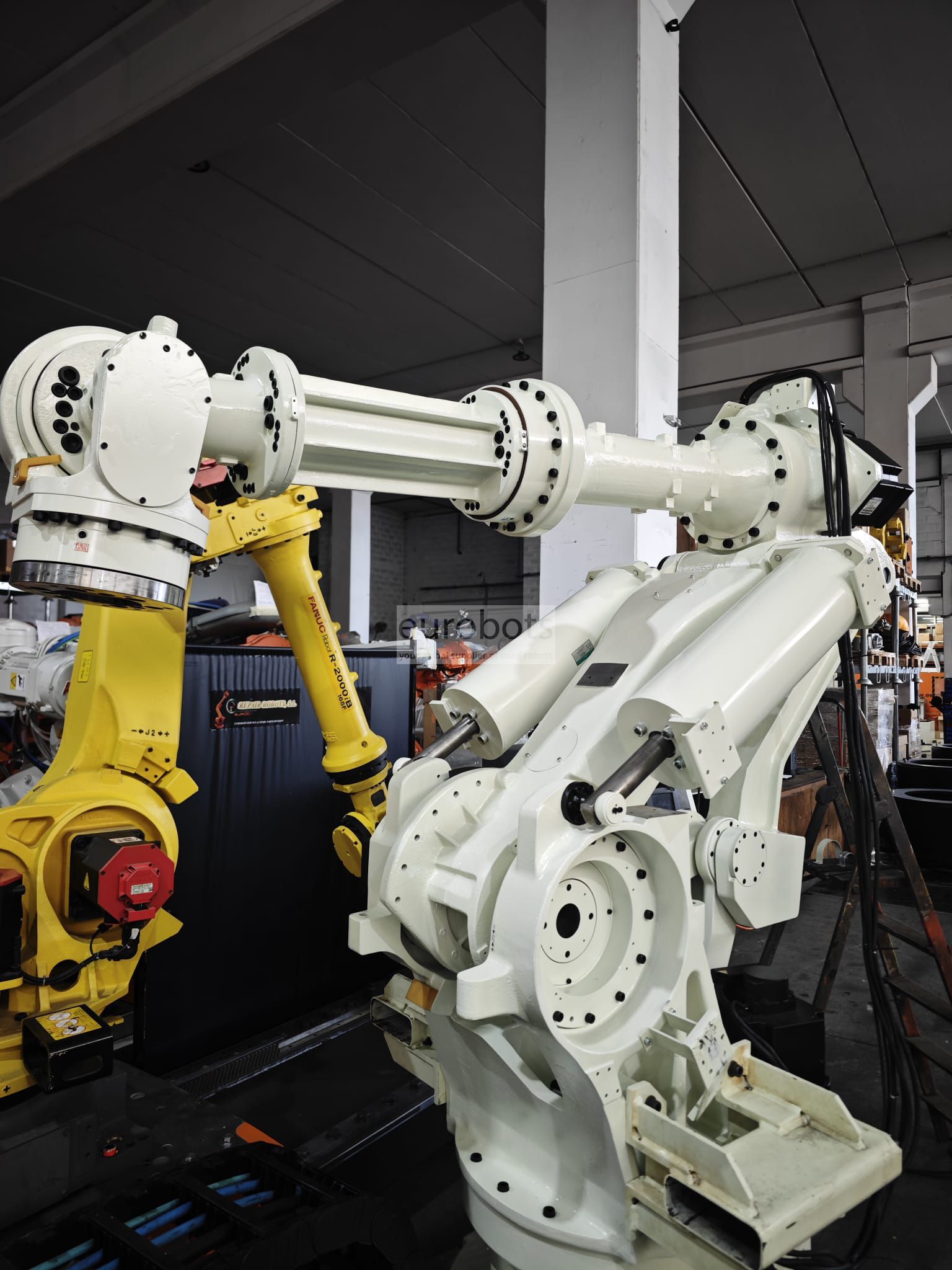

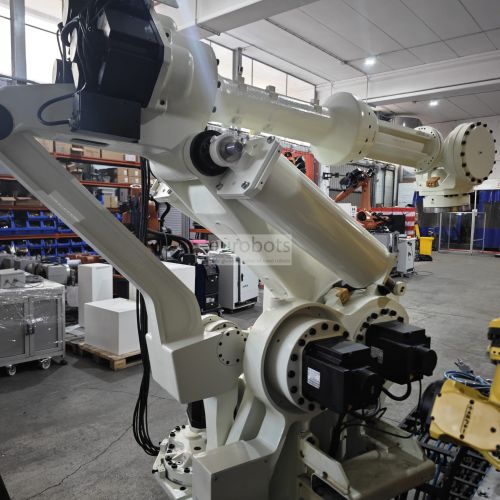

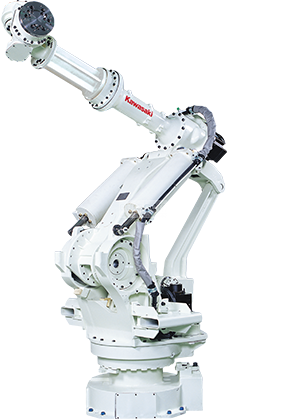

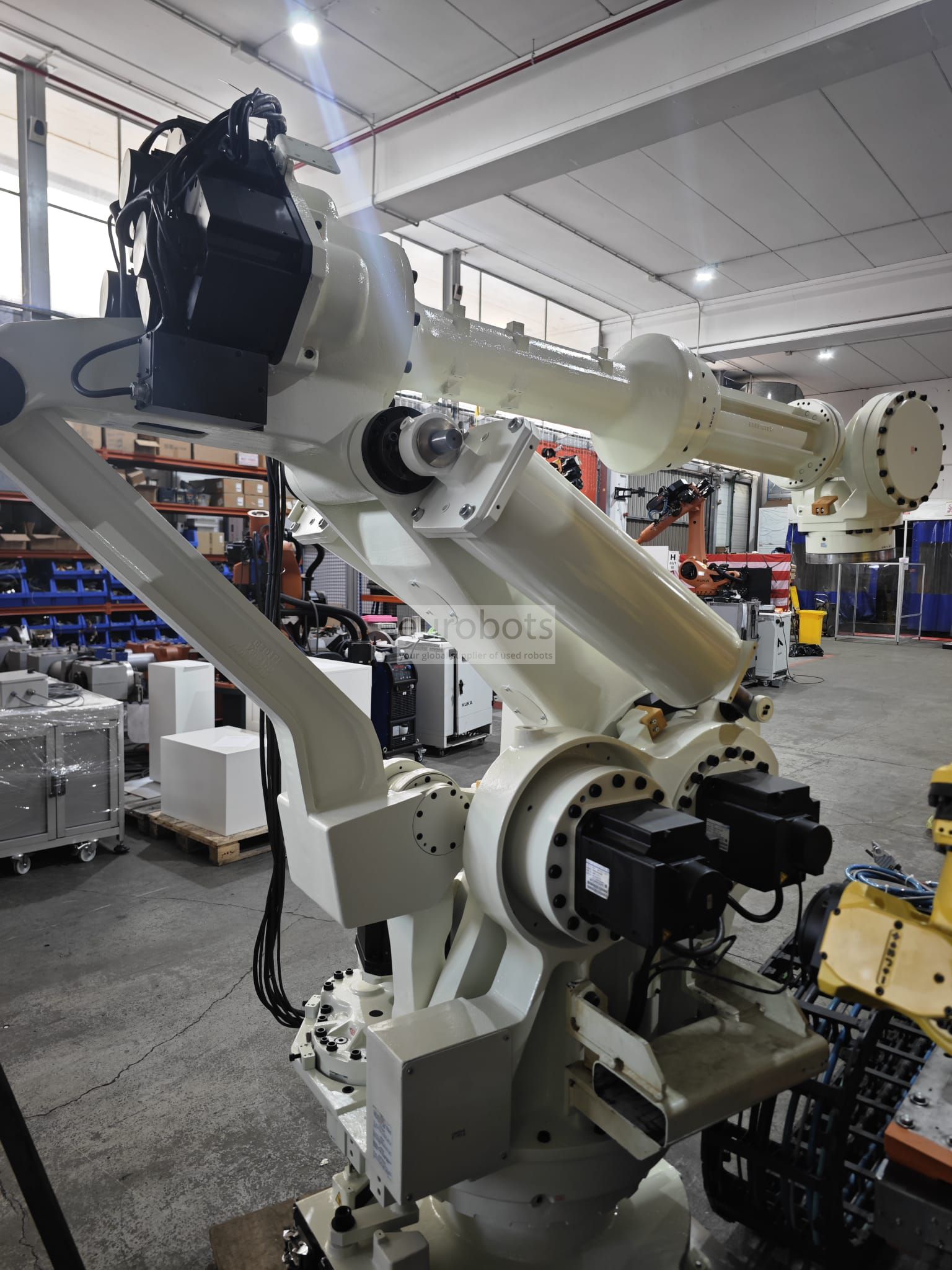

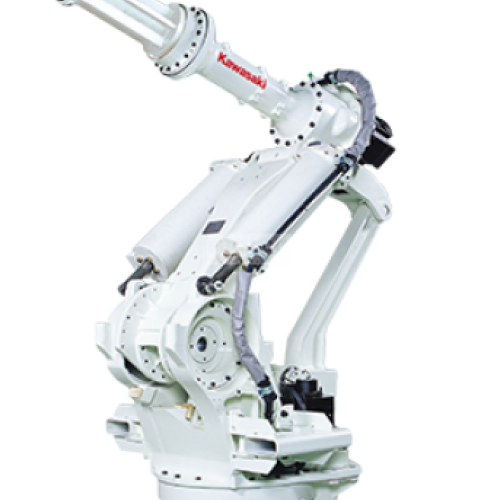

Kawasaki MXE350L

Awaiting more stock

MXE350L is a robot designed with one of the highest wrist pairs in the industry capable of lifting extremely heavy loads in a safe and precise way without using counterweights thanks to the elimination control of oscillations and the Kawasaki anti-collision software optimizing the range of movement of the robot.

E Controller

E controllers are compact, reliable and high performance, have advanced technology in the CPU allowing greater productivity and trajectory control. Wide range of industrial applications supported by Kawasaki AS technology that uses a programming language that provides sequence control; possible expansion of up to 10 external axes for complete control of 16 axes. Easy maintenance and diagnosis thanks to its modular components and limited cables.

  • Ideal for primary energy distribution voltage of each region
  • Greater capacity for expansion
  • Closed structure with indirect cooling system
  • Digital servo system
  • I / O channels 32 (max128)
Main specifications

Maximum Load of Robot: 350 kg
Number of axis: 6
Maximum horizontal reach: 3,018 mm
Maximum vertical reach: 3,502  mm
Repeatability: ±0.5 mm
Controller: E34
Motion range (°)
Axis JT1: ±180°
Axis JT2: +90°/-45°
Axis JT3: +20°/-115°
Axis JT4: ±360°
Axis JT5: ±110°
Axis JT6: ±360°
Maximum speed (°/s)
Axis JT1: 80°/s
Axis JT2: 70°/s
Axis JT3: 70°/s
Axis JT4: 80°/s
Axis JT5: 80°/s
Axis JT6: 120°/s
Robot applications
Machine Tending
Material Handling


Pembuatan palet , Memuat dan membongkar suku cadang , Penanganan suku cadang
