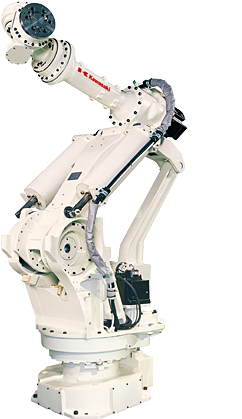

Kawasaki MXE500N

Awaiting more stock

MXE500N handles a load capacity of 500 kg has an original design of Kawasaki link for JT3 (arm up-down) gives the robot the ability to lift heavy loads without using counterweights with its powerful engines. It is part of the Kawasaki M robot series characterized by using advanced engine technology engineering techniques to enable high wrist torque and long range.

E Controller

E controllers are compact, reliable and high performance, have advanced technology in the CPU allowing greater productivity and trajectory control. Wide range of industrial applications supported by Kawasaki AS technology that uses a programming language that provides sequence control; possible expansion of up to 10 external axes for complete control of 16 axes. Easy maintenance and diagnosis thanks to its modular components and limited cables.

  • Ideal for primary energy distribution voltage of each region
  • Greater capacity for expansion
  • Closed structure with indirect cooling system
  • Digital servo system
  • I / O channels 32 (max128)
Main specifications

Maximum Load of Robot: 500 kg
Number of axis: 6
Maximum horizontal reach: 2,540 mm
Maximum vertical reach: 2,839 mm
Repeatability: ±0.5 mm
Controller: E34

Motion range (°)

Axis JT1: ±180°
Axis JT2: +90°/-45°
Axis JT3: +20°/-130°
Axis JT4: ±360°
Axis JT5: ±110°
Axis JT6: ±360°

Maximum speed (°/s)

Axis JT1: 80°/s
Axis JT2: 70°/s
Axis JT3: 70°/s
Axis JT4: 80°/s
Axis JT5: 80°/s
Axis JT6: 120°/s

Robot applications

Machine Tending
Material Handling

उपयोग

Pembuatan palet , Memuat dan membongkar suku cadang , Penanganan suku cadang
