Kawasaki MXE700N

Awaiting more stock

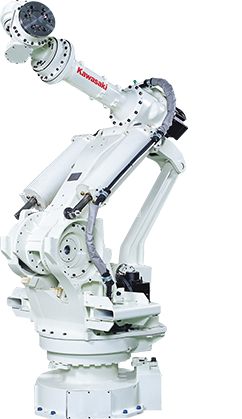

MXE700N are part of the M series characterized by advanced engine technology engineering techniques to enable high wrist torque and long range. The MXE700N robot is characterized by handling a load capacity of 700 kg. It has an original design of Kawasaki link for JT3 to lift extremely heavy loads safely and precisely.

E Controller

E controllers are compact, reliable and high performance, have advanced technology in the CPU allowing greater productivity and trajectory control. Wide range of industrial applications supported by Kawasaki AS technology that uses a programming language that provides sequence control; possible expansion of up to 10 external axes for complete control of 16 axes. Easy maintenance and diagnosis thanks to its modular components and limited cables.

  • Ideal for primary energy distribution voltage of each region
  • Greater capacity for expansion
  • Closed structure with indirect cooling system
  • Digital servo system
  • I / O channels 32 (max128)
Main specifications
Maximum Load of Robot: 700 kg
Number of axis: 6
Maximum horizontal reach: 2,540 mm
Maximum vertical reach: 2,839 mm
Repeatability: ±0.5 mm
Controller: E34
Motion range (°)
Axis JT1: ±180°
Axis JT2: +90°/-45°
Axis JT3: +20°/-130°
Axis JT4: ±360°
Axis JT5: ±110°
Axis JT6: ±360°
Maximum speed (°/s)
Axis JT1: 65°/s
Axis JT2: 50°/s
Axis JT3: 45°/s
Axis JT4: 50°/s
Axis JT5: 50°/s
Axis JT6: 95°/s
Robot applications
Machine Tending
Material Handling


Pembuatan palet , Penanganan suku cadang , Pengukuran , Perakitan bagian
