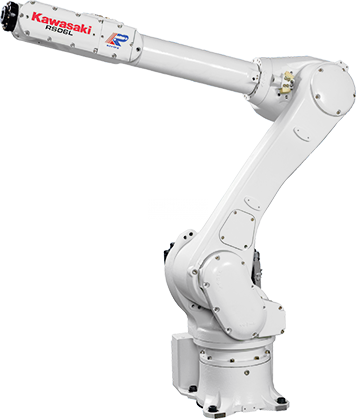

Kawasaki RS06L

Awaiting more stock

The RS06L is part of the series of small and medium load kawasaki R robots recognized for their compact design, light arm and high revolution engines that perform their functions at a high speed providing greater performance. RS06L handles an acceleration speed that is adapts to the load and position of the robot decreasing its cycle times allowing greater productivity. has a space-saving design for easy installation can work together with other robots with high density applications without interfering in productivity, includes a system of integrated pneumatic lines and standard internal wiring. It has an IP67 degree of protection for the wrist and IP65 for the axes.

E controllers are compact, reliable and high performance, have advanced technology in the CPU allowing greater productivity and trajectory control. Wide range of industrial applications supported by Kawasaki AS technology that uses a programming language that provides sequence control; possible expansion of up to 10 external axes for complete control of 16 axes. Easy maintenance and diagnosis thanks to its modular components and limited cables.
E30 controller
  • Ideal for primary energy distribution voltage of each region
  • Greater capacity for expansion
  • Closed structure with indirect cooling system
  • Digital servo system
  • I / O channels 32 (max128)
Main specifications
Maximum Load of Robot: 6 kg
Number of axis: 6
Maximum horizontal reach: 1,650 mm
Maximum vertical reach: 2,982 mm
Repeatability: ± 0,05 mm
Controller: E30
Motion range (°)
Axis JT1: ±180°
Axis JT2: +145°/-105°
Axis JT3: +150°/-163°
Axis JT4: ±270°
Axis JT5: ±145°
Axis JT6: ±360°
Maximum speed (°/s)
Axis JT1: 250°/s
Axis JT2: 250°/s
Axis JT3: 215°/s
Axis JT4: 365°/s
Axis JT5: 380°/s
Axis JT6: 700°/s
Robot applications
Machine Tending
Material Handling
Material Removal


Pengelasan spot , Penanganan suku cadang , Perakitan bagian
