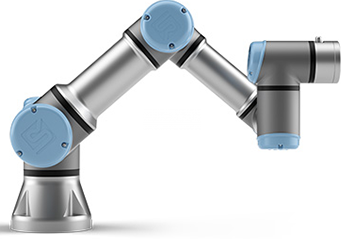

Other Robots UR3e

Awaiting more stock

सूचना
विनिर्दिष्टियाँ

The e series of Universal Robots is designed to be integrated into the production line and optimize the performance and quality of the product or service, backed by an intuitive and versatile programming apt to ascend with your company. It is easy to install and configure in any productive process due to its light structure, space saving and intuitive interface. One of the great advantages of this robot is the rapid return on investment for both small and large companies.

The latest innovation of universal robot is the collaborative UR3e model of the e series that is oriented to an optimal intuitive experience for the user thanks to its ultra flexible automation platform. offering a solution to customize your cobot applications to suit your needs ensuring the efficiency of the configuration and all the industrial processes.

Robot general specifications

Maximum Load of Robot: 3 Kg
Maximum Reach: 500 mm
Repeatability: +/- 0.03 mm, with payload, per ISO 9283
Controller:

Robot Motion Speed

Base: ± 180°/s
Shoulder: ± 180°/s
Elbow: ± 180°/s
Wrist 1: ± 360°/s
Wrist 2: ± 360°/s
Wrist 3: ± 360°/s

Working range

Base: ± 360°
Shoulder: ± 360°
Elbow: ± 360°
Wrist 1: ± 360°
Wrist 2: ± 360°
Wrist 3: Infinite

Applications

Assembly
Machine tending
Painting
Gluing
Pick and place
Polished
Welding
Palletizing

उपयोग

Pembuatan palet , Lukisan , Penanganan suku cadang , Poles , Pengukuran , Perakitan bagian , Lem - Ikatan perekat
