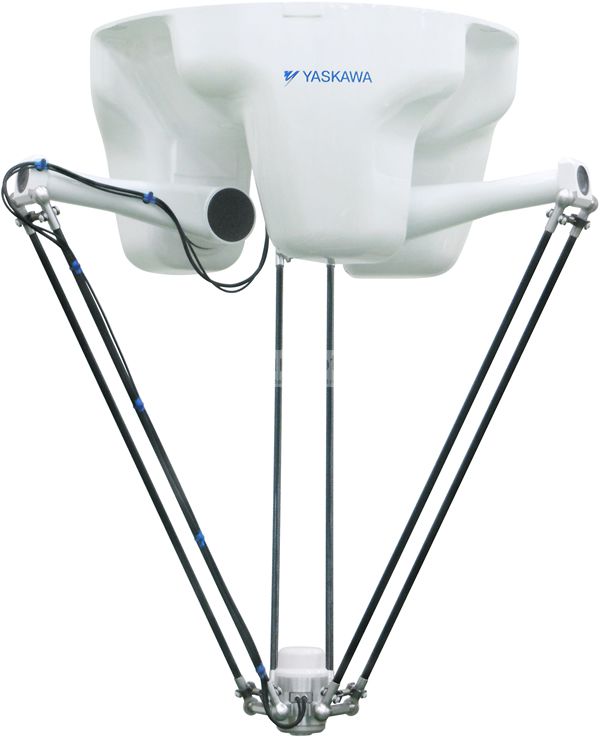

Motoman MPP3H

Awaiting more stock
MPP3H this robot is characterized by its speed, accuracy and reliability, it handles an acceleration speed of:
150 cycles per minute (CPM) with a load capacity of 3 kg
185 cycles per minute (CPM) with a load capacity of 1 kg
The range of cycles per minute contains 0.04 seconds per cycle to select and release parts. Holds a food grade lubricant certificate for NSF-H1. Mounting position Ceiling.
MLX200 Controller
This advanced architecture controller with simplified hardware eliminates redundancy and minimizes configuration time and complexity while optimizing system reliability. It does not require a programming language or independent controller and allows more application possibilities. It has motion planning algorithms, which allow programmers to more easily plan robot trajectories for applications, as well as a combination of motion for the entire robot kinematics. Improved motion software with a grouped control design that works and consumes less resources from Rockwell Automation programmable automation (PAC) controllers.
Main specifications

Maximum Load of Robot: 3 kg
Number of axis: 4
Maximum horizontal reach: 1.300 mm
Maximum vertical reach: 600 mm
Repeatability: ±0.1 mm
Controller: FS100, MLX200

Motion range (°)

Axis T:  ±360°

Maximum speed (°/s)

Axis T: 1400 °/s

Robot applications

Picking
Packing
Assembly
Cartoning
Kitting
pick and place

उपयोग

Penanganan suku cadang , Perakitan bagian
