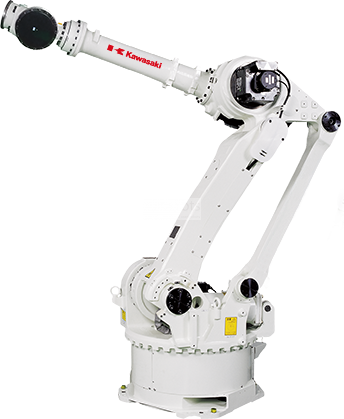

Kawasaki ZXE200S

Awaiting more stock

The ZX200S is a flexible robot ideal for hard work this robot is part of the Z series of Kawasaki designed with modular components that allows to update some models of equipment optimizing the range, load capacity and speed adapting easily to changes and improving the production; It has a wide range of motion is ideal for application of material handling and spot welding, can reach high processing speeds.

E Controller

E controllers are compact, reliable and high performance, have advanced technology in the CPU allowing greater productivity and trajectory control. Wide range of industrial applications supported by Kawasaki AS technology that uses a programming language that provides sequence control; possible expansion of up to 10 external axes for complete control of 16 axes. Easy maintenance and diagnosis thanks to its modular components and limited cables.

  • Ideal for primary energy distribution voltage of each region
  • Greater capacity for expansion
  • Closed structure with indirect cooling system
  • Digital servo system
  • I / O channels 32 (max128)
Main specifications
Maximum Load of Robot: 200 kg
Number of axis: 6
Maximum horizontal reach: 2,651 mm
Maximum vertical reach: 3,415 mm
Repeatability: ± 0.3 mm
Controller: E32
Motion range (°)
Axis JT1: ±180°
Axis JT2: + 75°/-60°
Axis JT3: + 250°/-120°
Axis JT4: ±360°
Axis JT5: ±120°
Axis JT6: ±360°
Maximum speed (°/s)
Axis JT1: 105°/s
Axis JT2: 110°/s
Axis JT3: 105°/s
Axis JT4: 120°/s
Axis JT5: 120°/s
Axis JT6: 200°/s
Robot applications
Machine Tending
Material Handling
Material Removal
Spot Welding
Friction Spot Joining


Pengelasan spot , Penanganan suku cadang , Pengukuran , Perakitan bagian
