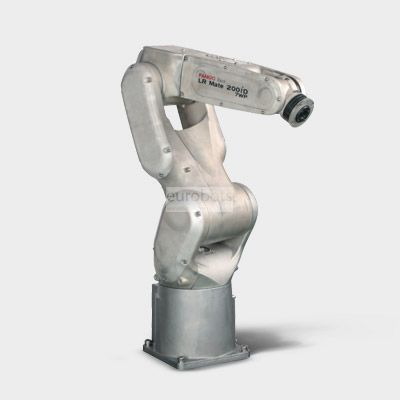

Fanuc LR Mate 200iD/7WP

Awaiting more stock
The LR Mate 200iD/7WP robot is designed to be waterproof for wet environments and high pressure washing applications. It has an IP67 degree of protection. This robotic model offers great flexibility because it can easily integrate in confined spaces or other machines thanks to its compact structure.
R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Main specifications
Maximum Load of Robot: 7 kg
Number of axis: 6
Maximum horizontal reach: 717 mm
Repeatability: ± 0.02 mm
Controller: 30iB
Motion range (°)
Axis J1: 360°
Axis J2: 245°
Axis J3: 420°
Axis J4: 380°
Axis J5: 250°
Axis J6: 720°
Maximum speed (°/s)
Axis J1: 450°/s
Axis J2: 380°/s
Axis J3: 520°/s
Axis J4: 550°/s
Axis J5: 545°/s
Axis J6: 1000°/s
Robot applications
High pressure washing


Penanganan suku cadang
