Fanuc M-10iA / 12S

Awaiting more stock

The Fanuc M-10 series, specialized in articulated robots for light load handling, has a thin, hollow wrist that offers greater work space, ease of integration into work cells, and internal wiring to avoid interference with other devices. Robot series provides improved cycle times, high performance and is ideal for applications of collection, pick and place and machine tending.

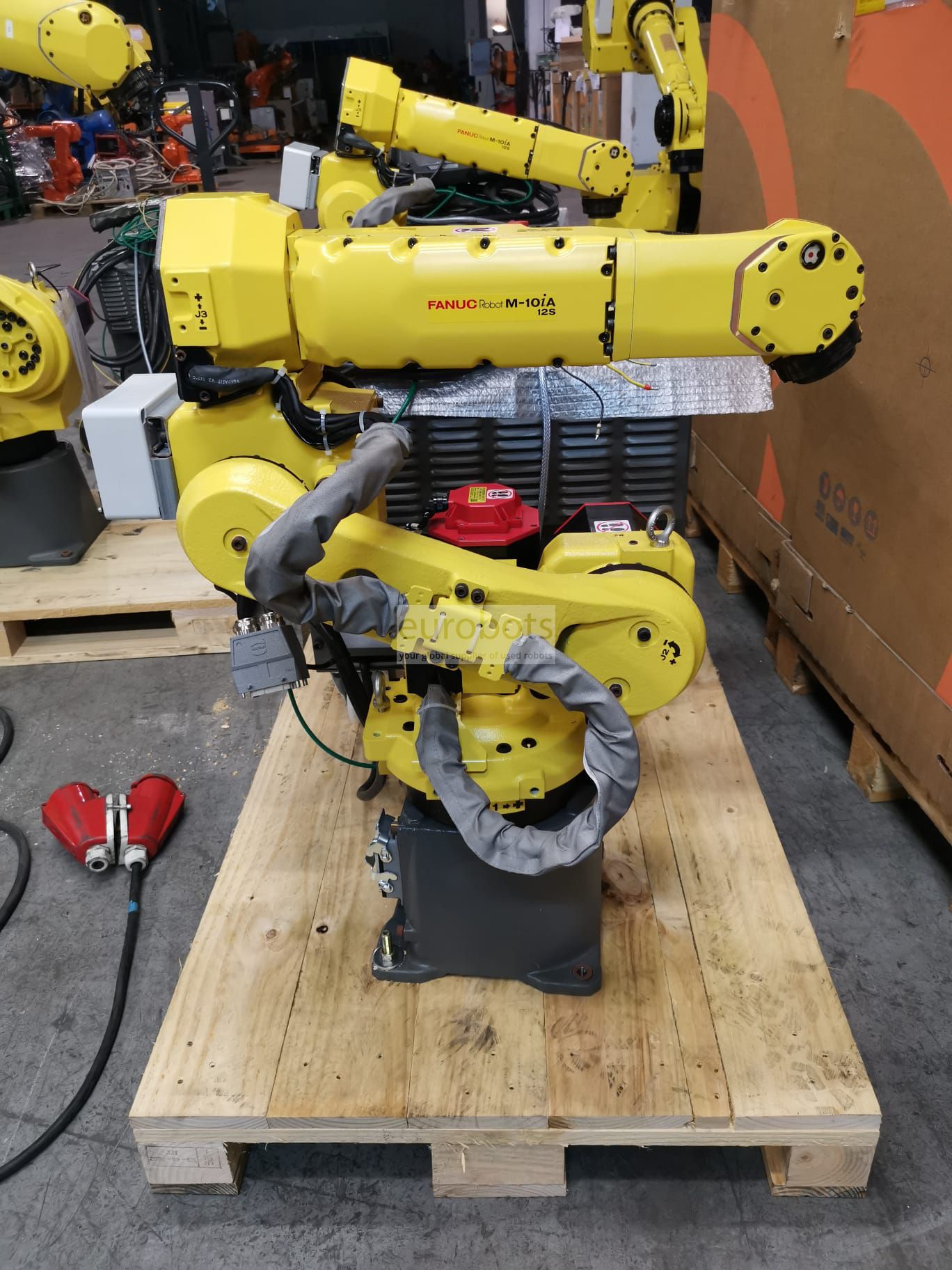

The M-10iA / 12S compact 6-axis industrial robot, short arm, high inertia, high precision and speed, ideal for loading and unloading, semiconductor and pharmaceutical applications in clean rooms. Easy maintenance and reduced system costs.

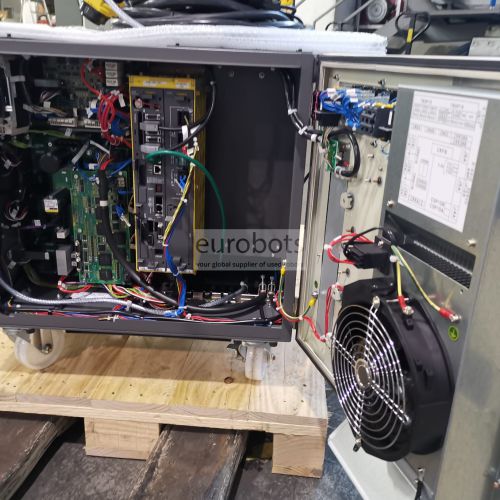

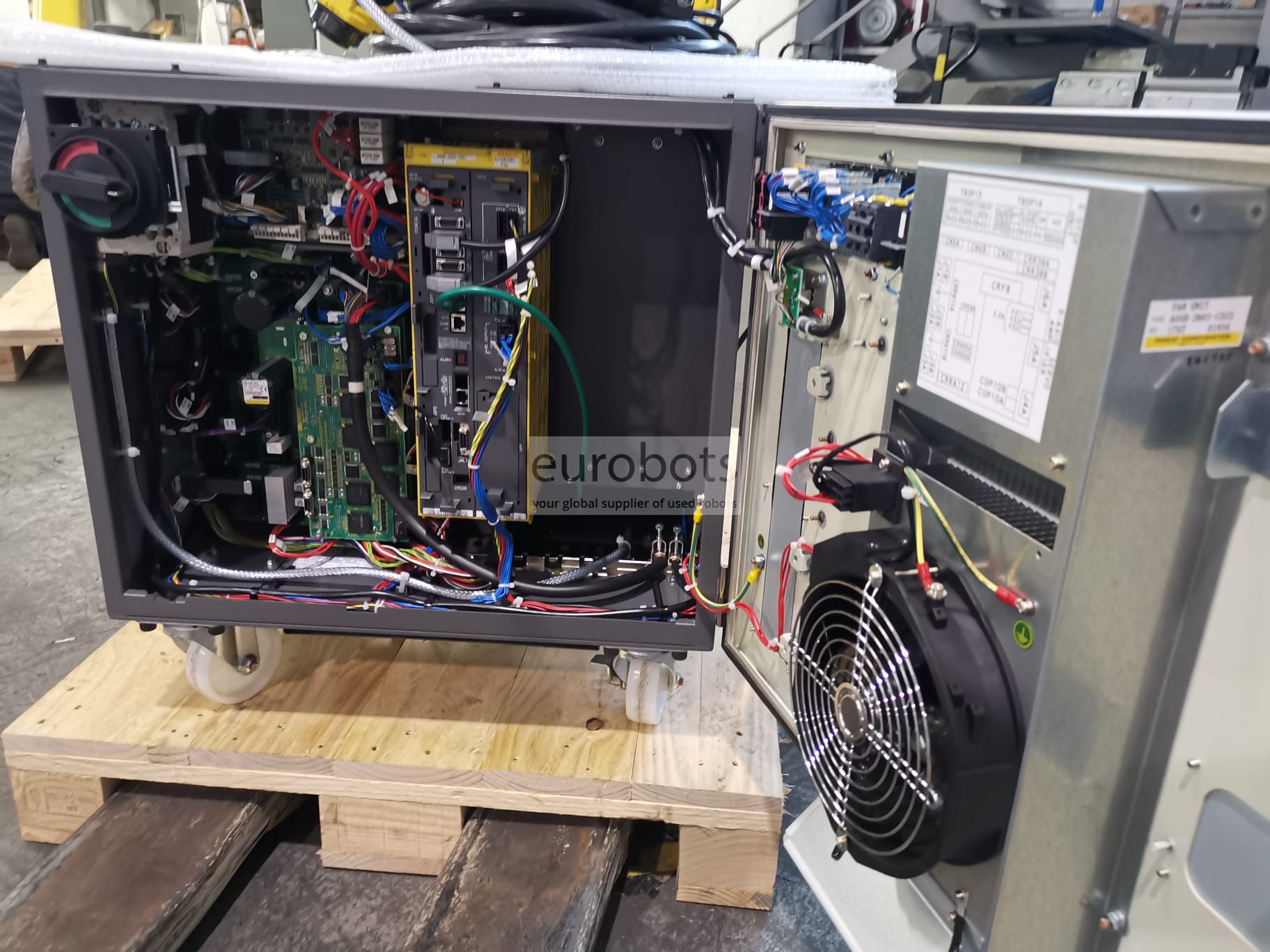

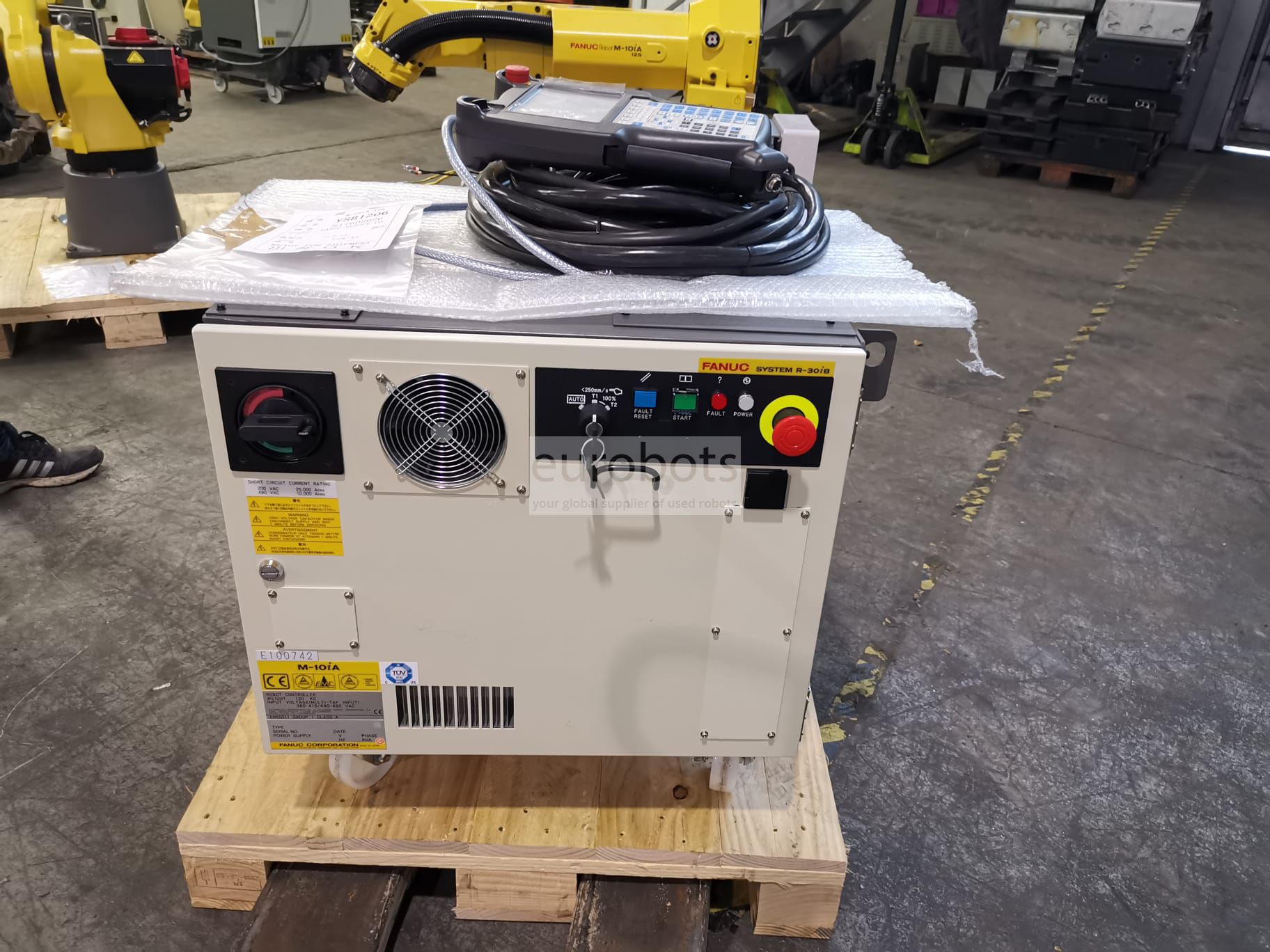

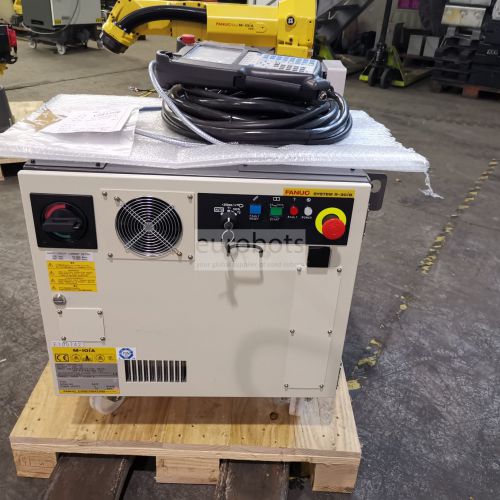

R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Main specifications
Maximum Load of Robot: 12 kg
Number of axis: 6
Maximum horizontal reach: 1098 mm
Repeatability: ± 0.05 mm
Controller: R30iB
Motion range (°)
Axis J1: 340° (360)°
Axis J2: 250°
Axis J3: 340°
Axis J4: 380°
Axis J5: 380°
Axis J6: 720°
Maximum speed (°/s)
Axis J1: 260°/s
Axis J2: 280°/s
Axis J3: 315°/s
Axis J4: 430°/s
Axis J5: 430°/s
Axis J6: 630°/s
Robot applications
Handling parts
Loading and unloading
