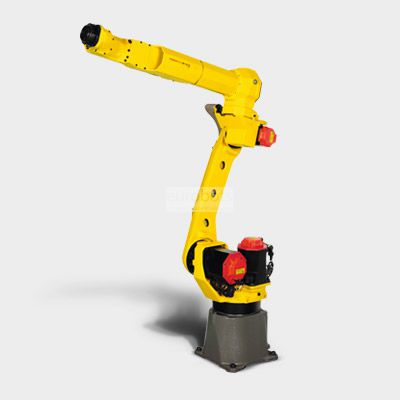

Fanuk M-10iA / 7L
The Fanuc M-10 series, specialized in articulated robots for light load handling, has a thin, hollow wrist that offers greater work space, ease of integration into work cells, and internal wiring to avoid interference with other devices. Robot series provides improved cycle times, high performance and is ideal for applications of collection, pick and place and machine tending.

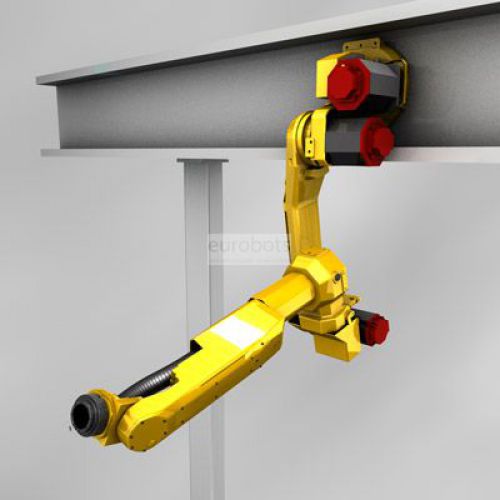

The M-10iA/7L industrial robot characterized by its thin arm design and wide reach, cost-effective hollow wrist with degree of protection IP67 makes this robot very versatile for applications of pick and place, manipulation of parts, assembly etc., provides a great saving of space due to its flexibility of mounting position in floor, ceiling, angle and wall.
R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Main specifications
Maximum Load of Robot: 7 kg
Number of axis: 6
Maximum horizontal reach: 1633 mm
Repeatability: ± 0.08 mm
Controller: 30iB
Motion range (°)
Axis J1: 340° (360)°
Axis J2: 250°
Axis J3: 447°
Axis J4: 380°
Axis J5: 380°
Axis J6: 720°
Maximum Load of Robot: 7 kg
Number of axis: 6
Maximum horizontal reach: 1633 mm
Repeatability: ± 0.08 mm
Controller: 30iB
Motion range (°)
Axis J1: 340° (360)°
Axis J2: 250°
Axis J3: 447°
Axis J4: 380°
Axis J5: 380°
Axis J6: 720°
Maximum speed (°/s)
Axis J1: 230°/s
Axis J2: 225°/s
Axis J3: 230°/s
Axis J4: 430°/s
Axis J5: 430°/s
Axis J6: 630°/s
Axis J1: 230°/s
Axis J2: 225°/s
Axis J3: 230°/s
Axis J4: 430°/s
Axis J5: 430°/s
Axis J6: 630°/s
Robot applications
Handling
Assembly
Pick and Place
Handling
Assembly
Pick and Place
