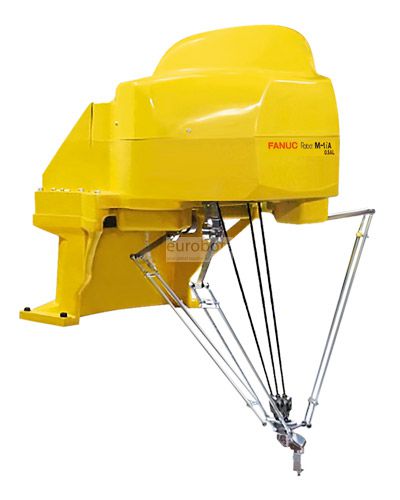

Fanuk M-1iA / 0.5AL

Awaiting more stock
Fanuc M-1iA series designed for handling small parts that adapt perfectly to high-speed processes that require great versatility, the structure of these robots are ultralijeros and compact, ideal for integration into machines or production lines where space is limited. It comes in a 3, 4 or 6 axis version offering optimum productivity in tasks of electronics, fine mechanics, food or medicine-pharmaceutical.

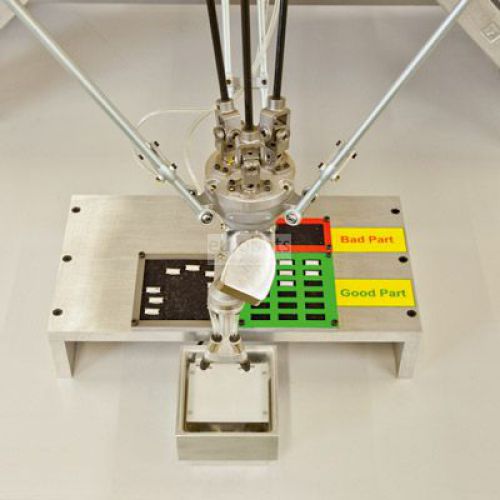

The M-1iA / 0.5AL is a robot designed for the handling of small parts with a high level of agility, this version has a great dexterity to perform different industrial tasks, offers greater versatility thanks to its six axes and its extended reach of up to 420 mm It is suitable for mounting applications, material handling, picking, packing, pick and place.
R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Main specifications

Maximum Load of Robot:  0.5 kg
Number of axis: 6
Maximum horizontal reach: 420 mm
Repeatability: ± 0.03 mm
Controller: R30iB

Motion range (°)

Axis J1, J2, J3: [ Ø 420 x 150]  in mm by height in mm
Axis J4: 720°
Axis J5: 300°
Axis J6: 720°

Maximum speed (°/s)

Axis J1: -
Axis J2: -
Axis J3: -
Axis J4: 1440°/s
Axis J5: 1440°/s
Axis J6: 1440°/s

Robot applications

Assembly
Material Handling
Order Picking
Packaging
Pick and Place
