Fanuc M-1iA / 0.5SL

Awaiting more stock
Fanuc M-1iA series designed for the handling of small parts that adapt perfectly to high speed processes that require great versatility, the structure of these robots are ultralijeros and compact, ideal for integration into machines or production lines where space is limited. It comes in a 3, 4 or 6 axis version offering optimum productivity in tasks of electronics, fine mechanics, food or medicine-pharmaceutical.

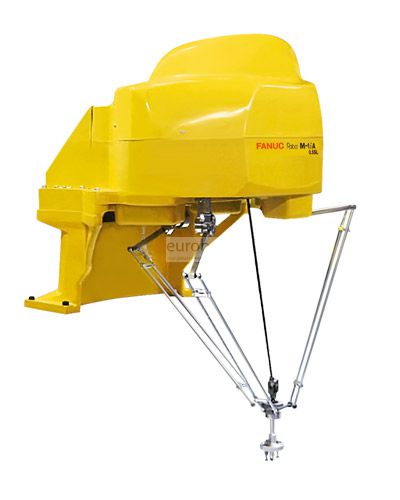

The M-1iA / 0.5SL is a 4-axis compact delta design robot that offers rapidity and efficiency in the handling of small parts, occupying minimal space, with a payload capacity of up to 1,000 grams. Advanced parallel link configuration makes it ideal for operations that require greater skill and agility.
R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Main specifications
Maximum Load of Robot:  0.5 kg
Number of axis: 4
Maximum horizontal reach: 420 mm
Repeatability: ± 0.03 mm
Controller: R30iB
Motion range (°)
Axis J1, J2, J3: [Ø 420 x 150]  in mm by height in mm
Axis J4: 720°
Maximum speed (°/s)
Axis J1: -
Axis J2: -
Axis J3: -
Axis J4: 3000°/s
Axis J5: -
Axis J6: -
Robot applications
Part Transfer
Pick and Place
Order Picking


Penanganan suku cadang , Pengukuran , Perakitan bagian
