Fanuc M-1iA / 1H

Awaiting more stock
Fanuc M-1iA series designed for the handling of small parts that adapt perfectly to the processes of high speed that require a great versatility, with ultralijera and compact structure, ideal for the integration in machines or production lines where the space is limited. It comes in a 3, 4 or 6 axis version offering optimal productivity in electronics, delicate mechanics, food or medicine-pharmaceutical tasks.

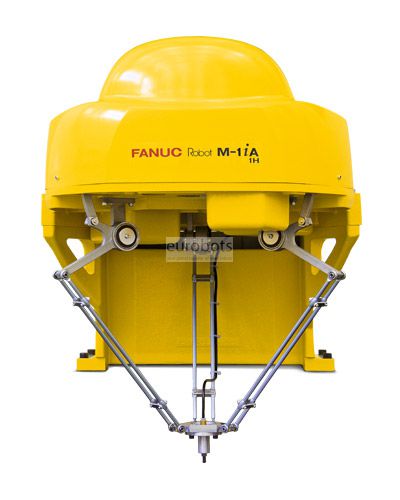

M-1iA / 1H is a designed robot to minimize the use of space and unique parallel link to maximize speed, this 3-axis robot offers a wide working envelope for line transfer operations involving low payloads.
R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Main specifications
Maximum Load of Robot:  1 kg
Number of axis: 3
Maximum horizontal reach: 280 mm
Repeatability: ± 0.02 mm
Controller: R30iB
Motion range (°)
Axis J1, J2, J3: [Ø 420 x 150]  in mm by height in mm
Maximum speed (°/s)
Axis J1: -
Axis J2: -
Axis J3: -
Axis J4: -
Axis J5: -
Axis J6: -
Robot applications
Part Transfer
Pick and Place


Penanganan suku cadang , Perakitan bagian
