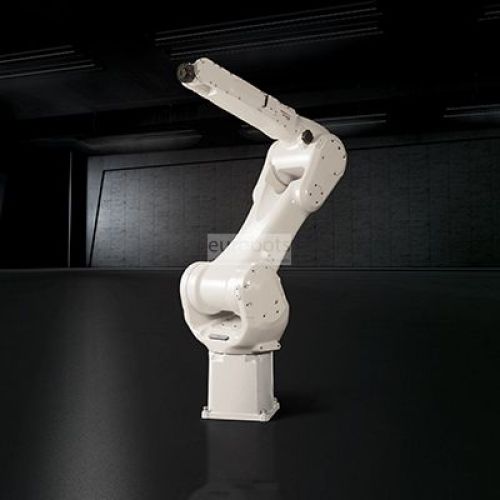

Fanuc Cleanroom M-20iB / 25C

Awaiting more stock

The M-20iB / 25C specially designed for clean room. ISO Class 5, certified by Fraunhofer, with thin structure completely closed, uses a special white paint that indicates its resistance to cleaning agents of daily use, IP67 degree of protection. Excellent precision, high flexibility and versatility for tasks in work cells.

R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Main specifications
Maximum Load of Robot: 25 kg
Number of axis: 6
Maximum horizontal reach: 1853 mm
Repeatability: ± 0.023 mm
Controller: R30iB
Motion range (°)
Axis J1: 340°(360)°
Axis J2: 240°
Axis J3: 303°
Axis J4: 400°
Axis J5: 290°
Axis J6: 540°
Maximum speed (°/s)
Axis J1: 205°/s
Axis J2: 205°/s
Axis J3: 260°/s
Axis J4: 415°/s
Axis J5: 415°/s
Axis J6: 880°/s
Robot applications
Handling parts


Memuat dan membongkar suku cadang , Penanganan suku cadang , Perakitan bagian
